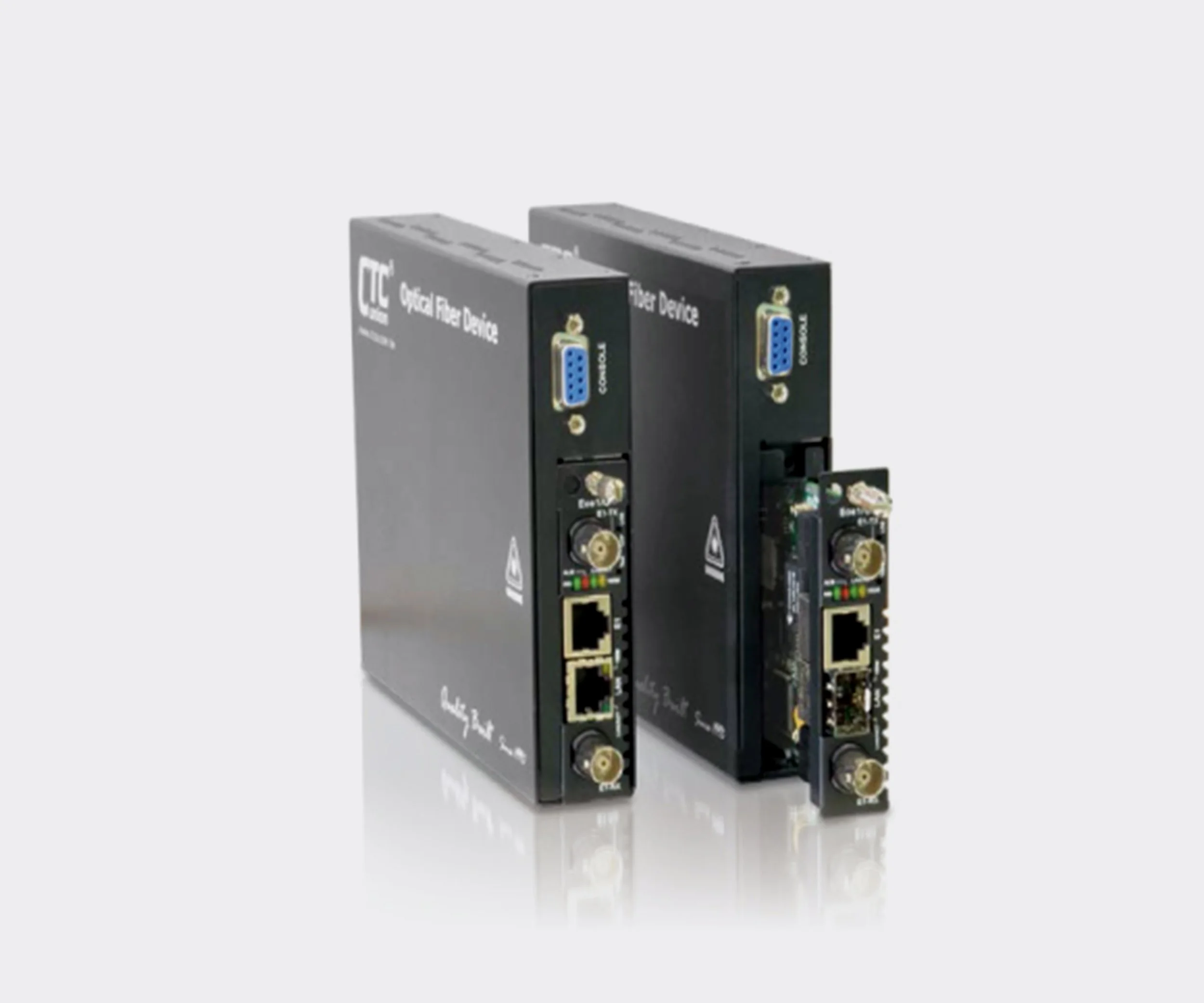

Image 1 of 1
The FRM220A-Eoe1/G(S) is an Ethernet over E1 Bridge for cost-effective connection of 10/100Base-TX or 100Base-FX LANs over a single E1 transport. By using GFP (Generic Framing Procedure) or standard HDLC encapsulation, the FRM220A-Eoe1/G(S) is able to transmit up to a 2M bits Ethernet over an E1 link. The FRM220A-Eoe1/G(S) supports an E1 attenuation of up to 43 dB on twisted pair or coax cable, which provides an approximate operating range up to 2km (using 22AWG). The FRM220A-Eoe1/G(S)fully meets E1 specifications including ITU-T G.704 and G.823. The Ethernet copper interface supports auto-negotiation and auto MDI/MDIX, allowing plug-and-play Ethernet connection without any additional configuration. When placed in FRM220A system, the Ethernet may be aggregated to the chassis's built in Ethernet switch. When placed in a single slot chassis and used standalone without management, the card may be configured by serial terminal.
Features
Connects one Fast Ethernet over E1 links (2.048Mbps)
Built-in GFP bridge operates at WAN rate
Auto-Negotiation
Unbalanced E1/BNC or balanced E1/RJ45
Fully compatible with FRM220A and FRM220 chassis
SNMP management with FRM220A and FRM220 chassis
LED Alarm indication
Standalone RS232 console management via CH01M
