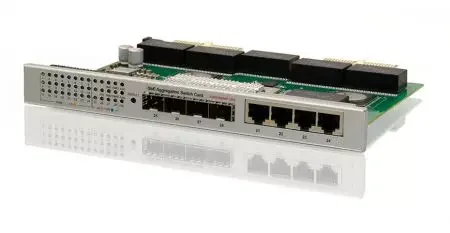

FRM220A-GSW/SNMP-10G, FRM220A-GSW/SNMP-1G

FRM220A-GSW/SNMP-10G and FRM220A-GSW/SNMP(n) are next generation switch/management trunk cards for the FRM220A chassis. Twenty (20) GbE switch ports supply each slot of the 2U 20-slot chassis with an electrical gigabit Ethernet uplink with a remaining four (4) electrical gigabit ports accessible via the rear of the chassis. The additional four uplink SFP ports provide 1G/10G Ethernet connections, also on the rear of the chassis. All rear facing eight (8) ports (4 × GE+ 4 × 1G/10G or 4 × GE + 4 × 1G) are usable without restrictions for uplink aggregation to the Ethernet Metropolitan Area Network (E-MAN). The FRM220A-GSW/SNMP trunk card transmits Ethernet between the subscriber equipment (bridge/modem or network interface card) and the E-MAN. The trunk card also provides a management interface with Ethernet packets via Telnet, SSHv2, http/https and SNMP (v1,v2c,v3).

Features

• Provides chassis aggregation via 4 × 1G/10Gigabit Base-R SFP/SFP+ uplink slots (FRM220A-GSW/SNMP-10G)

• Provides chassis aggregation via 4 × 1G Gigabit Base-X SFP uplink slots (FRM220A-GSW/SNMP-1G)

• Supports IEEE 802.1p HW based 8 priority queues and L2~L4 QoS functions

• Supports IPv6 management

• Fiber optical ports supports Ring topology

• Built-in gigabit Ethernet interface to link with each slot of FRM220A chassis

• Provides Web (https), Telnet, SSHv2, SNMP(V1, V2c, V3) management interface

• Supports IEEE 802.1D/802.1w/802.1s for ring protection on the trunk interfaces

• Supports IEEE 802.1Q tagged VLAN and IEEE 802.1ad Q-in-Q application
