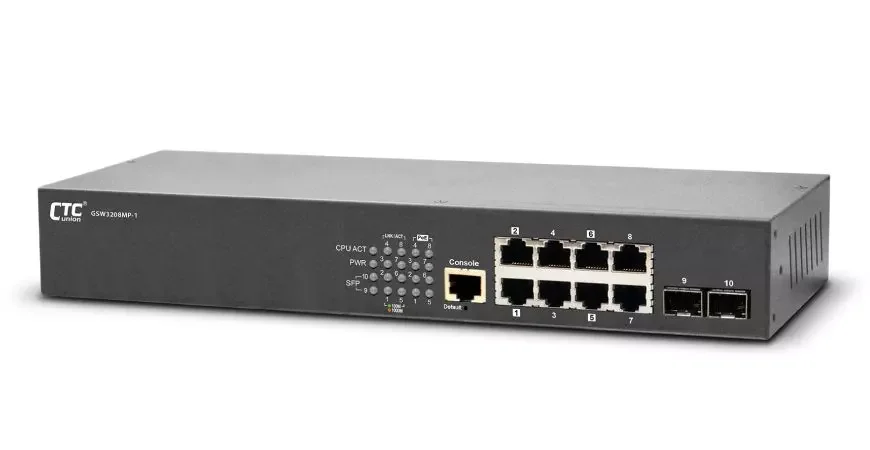

GSW3208MP-1

$0.00

L2+ Managed PoE Switch with 8 ports PoE+(180W): 8 × GbE/RJ45 + 2 × 1G/SFP with 8 × PoE+ (180W) L2+ Managed Switch

L2+ Managed PoE Switch with 8 ports PoE+(180W): 8 × GbE/RJ45 + 2 × 1G/SFP with 8 × PoE+ (180W) L2+ Managed Switch

CTC Union Technologies unveils the enhanced version of cost-effective high performance managed power over Ethernet switch, GSW3208MP-1, which is equipped 8 GbE/RJ45 ports and 2 GbE SFP slots. Each Ethernet copper port complies with IEEE 802.3at standard to supply 30W power injection maximum. It’s designed for small and medium business network deployment for office applications such as PoE powered IP telephony, WiFi access and IP surveillance.

It is featured completely L2 switch functionality which guarantees high network availability, secured robust network access and comprehensive QoS in the network edge. Also, the GSW3208MP-1 can be managed by CTC in-house developed Smartview EMS, which offers a user-friendly and centralized device management platform. It makes the administrators be able to monitor and configure the switches remotely.

Features

  • 8 × RJ45/PoE+ ports with 180W power budget totally

  • Cable diagnostics to test UTP cable or determine broken point distance

  • Text based CLI configuration download and upload

  • Advanced PoE management

    • PoE PD failure auto check and reset if PD failed

    • PoE port on/off scheduling

    • PoE configuration for power planning

Data Sheet

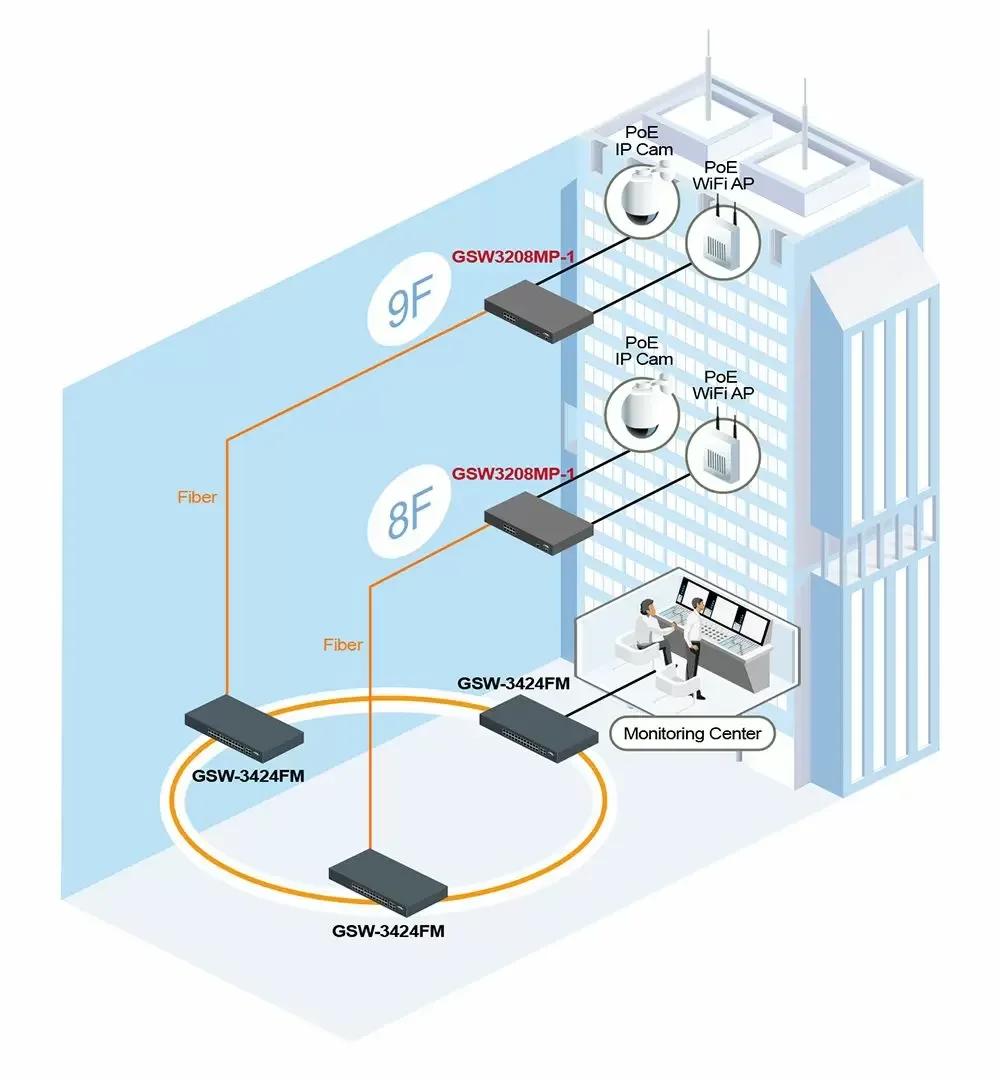

Application
