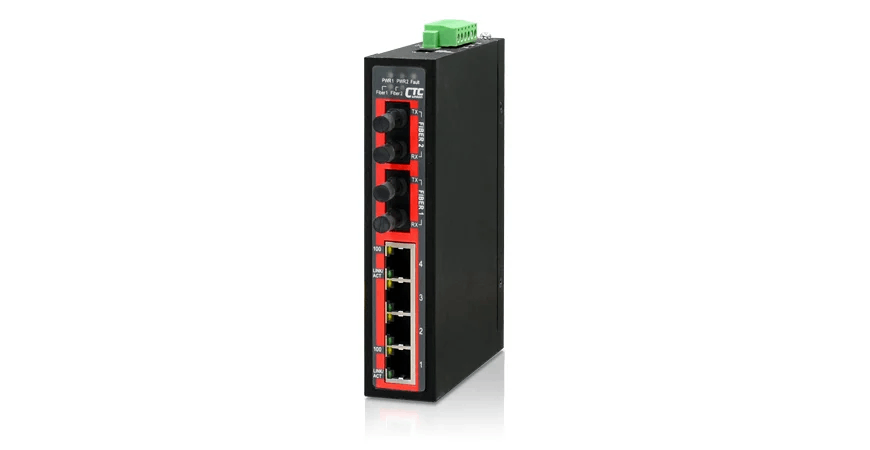

The IFS-402F Industrial Unmanaged Ethernet Switch delivers stable and reliable network connectivity for demanding environments. It features 4 × 10/100Base-TX UTP ports and 2 × 100Base-FX SC/ST fiber ports, enabling long-distance data transmission. Built with a rugged, fanless enclosure, the switch ensures high MTBF, wide operating temperature range, and redundant 12/24/48VDC power input for enhanced reliability. Ideal for industrial networking, intelligent transportation systems (ITS), and mission-critical applications in military and utility sectors where environmental conditions exceed commercial standards.
Features
Wide operating temperature -40 ~ 75°C (-E model )
Provides broadcast storm protection
List of products
| MODEL | TYPE | DESCIPTION |
|---|---|---|
| IFS-402F-SC002 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC, 2km, 1310nm, 11dB MM, -10°C ~ 60°C, with Din-rail |
| IFS-402F-ST002 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, ST, 2km, 1310nm, 11dB MM, -10°C ~ 60°C, with Din-rail |
| IFS-402F-SC030 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC, 30km, 1310nm, 19dB, SM, -10°C ~ 60°C, with Din-rail |
| IFS-402F-ST030 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, ST, 30km, 1310nm, 19dB, SM, -10°C ~ 60°C, with Din-rail |
| IFS-402F-SC050 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC, 50km, 1310nm, 28dB, SM, -10°C ~ 60°C,with Din-rail |
| IFS-402F-ST050 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, ST, 50km, 1310nm, 28dB, SM, -10°C ~ 60°C, with Din-rail |
| IFS-402F-SC020A | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC Bidi A type, 20km, Tx1310/Rx1550nm, 17dB, -10~60°C, with Din-rail |
| IFS-402F-SC020B | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC Bidi B type, 20km, Tx1550/Rx1310nm, 17dB, -10~60°C, with Din-rail |
| IFS-402F-E-SC002 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC, 2km, 1310nm, 11dB MM, -40°C ~ 75°C, with Din-rail |
| IFS-402F-E-ST002 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, ST, 2km, 1310nm, 11dB MM, -40°C ~ 75°C, with Din-rail |
| IFS-402F-E-SC030 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC, 30km, 1310nm, 19dB, SM, -40°C ~ 75°C, with Din-rail |
| IFS-402F-E-ST030 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, ST, 30km, 1310nm, 19dB, SM, -40°C ~ 75°C, with Din-rail |
| IFS-402F-E-SC050 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC, 50km, 1310nm, 28dB, SM, -40°C ~ 75°C, with Din-rail |
| IFS-402F-E-ST050 | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, ST, 50km, 1310nm, 28dB, SM, -40°C ~ 75°C, with Din-rail |
| IFS-402F-E-SC020A | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC Bidi A type, 20km, Tx1310/Rx1550nm, 17dB, -40~75°C, with Din-rail |
| IFS-402F-E-SC020B | - | Unmanaged FE switch 4x10/100Base-TX + 2x100Base-FX, SC Bidi B type, 20km, Tx1550/Rx1310nm, 17dB, -40~75°C, with Din-rail |
