4x GbE RJ45 + 2x 100M/1G/2.5G SFP with 4x PoE 300W, 48VDC

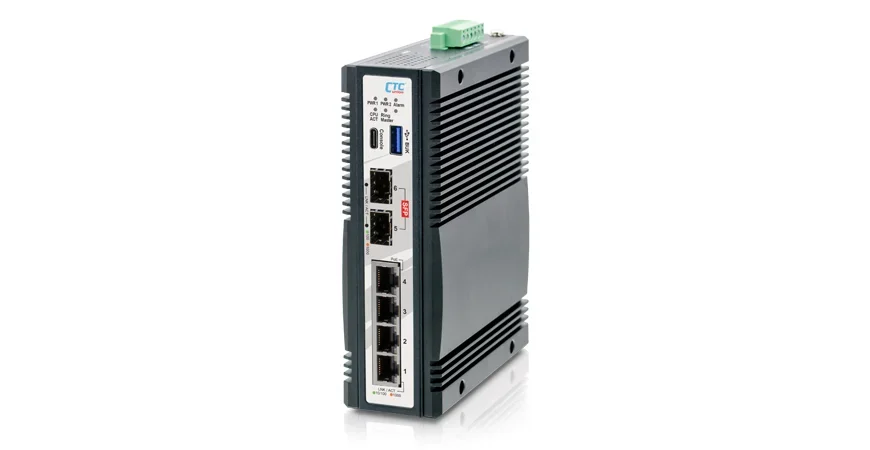

The industrial cyber-hardened managed PoE switch IGS-A402SM-4PB is one of our new generation designs and comes with 4 gigabit UTP ports, each complies with IEEE802.3af/at/bt up to 90W PoE+ standard. Equipped with 2 100M/2.5G SFP slots for fiber optic connectivity meet the requirements for extended transmission distance, fanless design, high MTBF, 4KV surge protection and supports wide temperature operation, 44-57VDC redundant power input, and is designed to comply with cybersecurity regulations. Suitable for heavy-duty applications in harsh environments such as industrial factory automation, data centers, smart transportation systems, military and utility market applications beyond environmental conditions commercial product specifications.
4x GbE RJ45 + 2x 100M/1G/2.5G SFP with 4x PoE 300W, 48VDC
The industrial cyber-hardened managed PoE switch IGS-A402SM-4PB is one of our new generation designs and comes with 4 gigabit UTP ports, each complies with IEEE802.3af/at/bt up to 90W PoE+ standard. Equipped with 2 100M/2.5G SFP slots for fiber optic connectivity meet the requirements for extended transmission distance, fanless design, high MTBF, 4KV surge protection and supports wide temperature operation, 44-57VDC redundant power input, and is designed to comply with cybersecurity regulations. Suitable for heavy-duty applications in harsh environments such as industrial factory automation, data centers, smart transportation systems, military and utility market applications beyond environmental conditions commercial product specifications.
48VDC (44~57VDC) redundant dual power input
Provides 4-port IEEE 802.3af/802.3at/802.3bt PoE+ output (90W per port, total 300W)
Provides 3 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 3 rings in one device (Please see CTC μ-Ring white paper for more details and more topology application)
μ-Ring for redundant cabling, recovery time<20ms in 250 devices
Supports EMS Management
