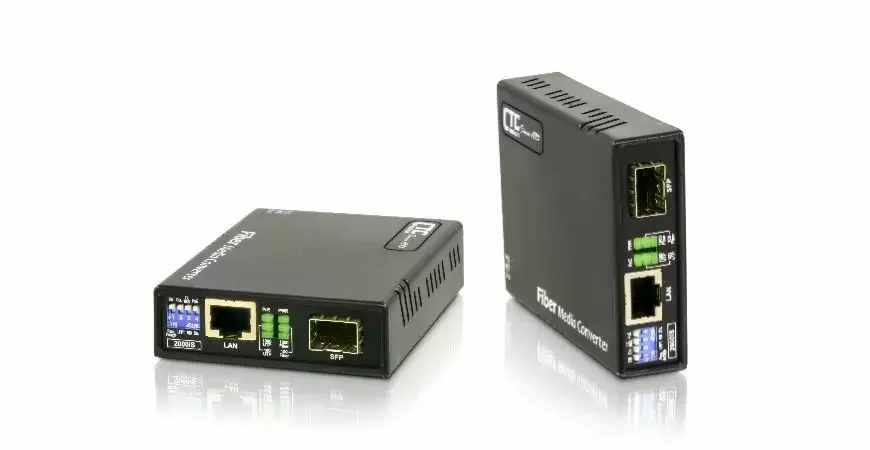

PMC-1000S

$0.00

PoE Media Converter: 10/100/1000Base-T to 100/1000Base-X SFP with PoE+ (30W) Media Converter

PoE Media Converter: 10/100/1000Base-T to 100/1000Base-X SFP with PoE+ (30W) Media Converter

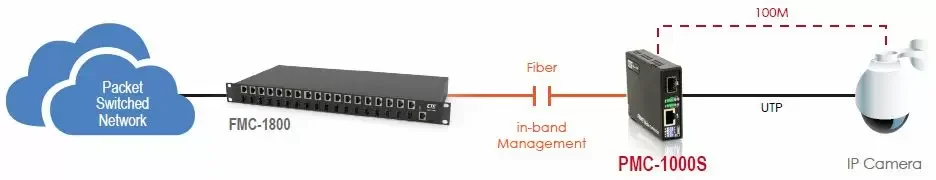

PMC-1000S is an managed Gigabit Ethernet media converter that supports conversion between electrical 10/100/1000Base-T and optical 1000Base-X Ethernet and as PSE (Power Source Equipment) provide PoE+ power over Ethernet. PMC-1000S provides an SFP cage for 100/1000Base-X compatible SFP modules. By offering in-band management, this converter can be remotely controlled and monitored in a centrally located managed rack via FMC-1800 media converter rack.

Features

  • Conversion between 10/100/1000Base-T and 100/1000Base-X

  • Supports dual rate (100/1000) SFP for selectable Fast or Gigabit speed on fiber

  • PoE output voltage up to 55VDC

  • Supports IEEE 802.3at/af PoE, output 30Watts Power Budget

  • Supports LFPT (Link Fault Pass Through)

  • Supports DIP SW for setting LFPT, Switch or Converter mode, SFP speed

  • Wall Mount and compact size for easy installation

  • Supports Jumbo frame 16K bytes packet

  • Supports remote in-band management by FMC-1800 SNMP manager

Data Sheet
