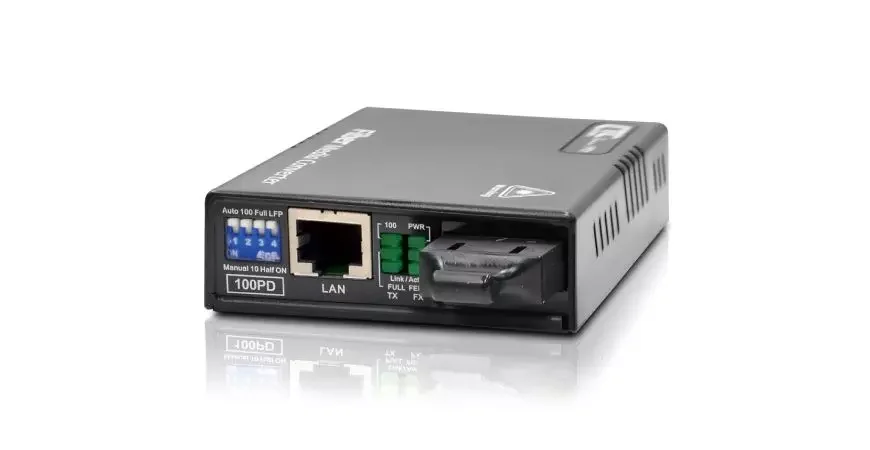

The PMC-100PD is Power over Ethernet 10/100Base-TX to 100Base-FX non-managed PD(Power Device) Fiber converter, which give you the options to choose from the most popular fiber cabling connectors, ST, SC, FC. Both multi-mode and single mode converter models are available as well as BiDi which allows bi-directional transmissions using only a single fiber cable. With Power over Ethernet (PoE) feature, PMC-100PD takes power supply over Ethernet cable from PoE Ethernet Switch and may work without external power adapter. When auto-negotiation is selected, these units will automatically tailor themselves to convert both half-duplex and full-duplex signals, according to IEEE802.3u standards. LED indicators signal the power status of the converter, UTP port speed, Link, and duplex status, FX port Link and duplex status.
Features
10/100Base-TX to 100Base-FX Converter
Auto-Negotiation or forced mode
Auto MDI/MDIX
Forward 1600 bytes (Max.) packets
Supports Q in Q double tagged frame transparent
Supports IEEE 802.1Q Tag VLAN pass thru
Supports flow control (Pause)
Supports Link Fault Pass-Through (LFPT)
Forward 9K jumbo packets in converter mode
Supports IEEE802.3af/at Power over Ethernet

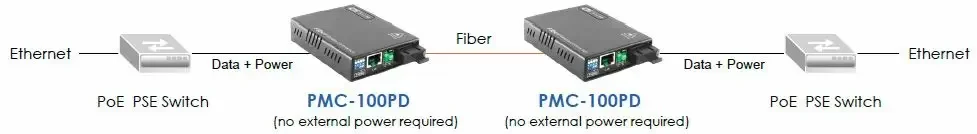

Application
