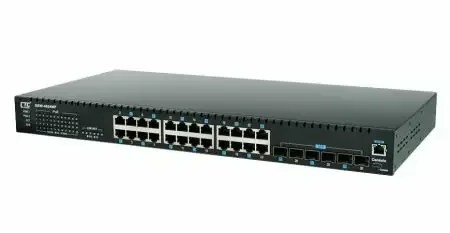

The next generation PoE switch in high-density port configuration leveraged NBase-T multi-gigabit technology, QSW-4624MP, is designed for SMB and enterprise to migrate to the reliable and secure Ethernet based high speed network access by connecting the existed Cat5e/Cat6 cabling infrastructure from 1Gbps to multi-gigabit speed. It is ideal solution to save your investment without disruptive and expensive wiring reconstruction required for offering more bandwidth capacity.
The latest content richer application and technology such as WiFi 6E/7 wireless access and 4K UHD video streaming or IP surveillance make the standard gigabit reveal the problem of bandwidth insufficiency. QSW-4624MP is equipped 24 ports 1G/2.5G RJ45 and 6 slots 1G/10G SFP+ uplink. Each Ethernet copper port complies with IEEE 802.3at standard to supply 30W power injection maximum. The 10G uplink ports relieve the insufficiency of Gigabit links to offer instantly demanding bandwidth consumption for PoE powered FHD/UHD IPcam surveillance, WiFi network access in the enterprise network.
It is featured completely L2+ switch functionality which guarantees high network availability, robust network access and security as well as comprehensive QoS in the network edge. It will deliver the benefits of optimal traffic transportation performance and lower ownership cost while maintaining the network deployment simply.
Features
24 × RJ45/PoE+ ports with 720W power budget totally
Cable diagnostics to test UTP cable or determine broken point distance
Text based CLI configuration download and upload
Advanced PoE management
PoE PD failure auto check and reset if PD failed
PoE port on/off scheduling
PoE configuration for power planning

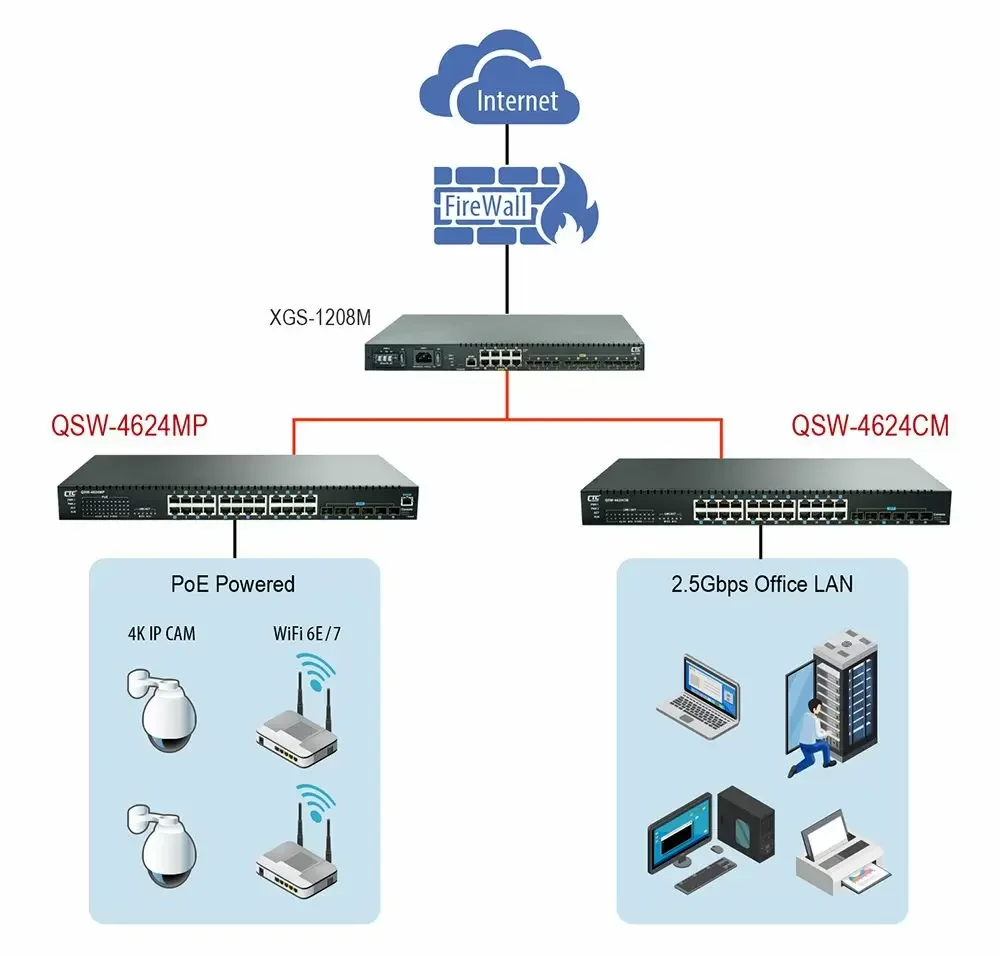

Application
