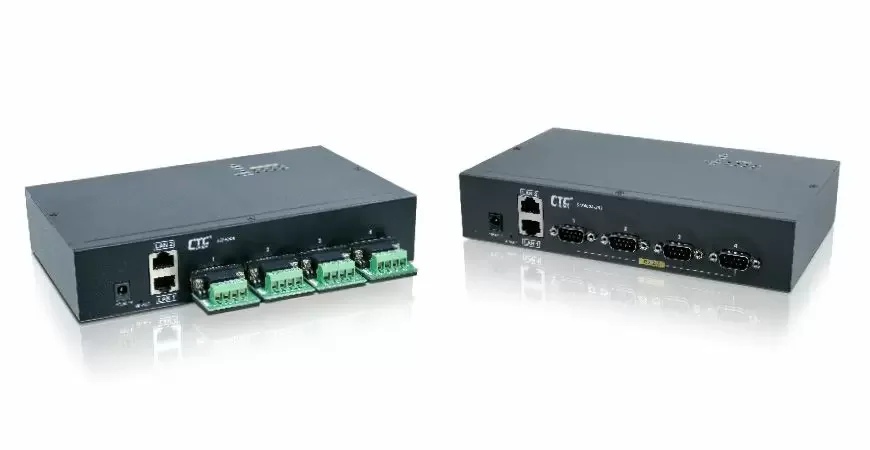

The STE400A are 4-port RS232/422/485 to IP Device Servers that enable the ability to control asynchronous devices located virtually anywhere over a TCP/IP connection. The STE400A have 4 DB9 serial ports and a 10/100 Mbps Ethernet connection on the same side. It connects serial devices such as PLC, alarm sensors and PTZ camera control to IP networks. Applications include industrial/factory automation, public safety and surveillance systems. The STE400A Windows® driver is designed to control the IP Serial Server. The driver installs a virtual COM on Windows® which maps a COM port to the IP address of the IP Serial Server across the network, enabling the Windows® applications to access remote serial devices over Ethernet. IP Device Server can function as a server or client for TCP connection that provides a Serial over Ethernet solution. The application scenarios for the STE400A are direct IP mode, virtual COM mode, or paired mode.
Features
10/100Mbps Ethernet port
921.6kbps serial interface (software programmable)
TCP Server, TCP client, Paired or Virtual com modes
Supports Virtual COM application software
Easy to use with Windows® utility
Supports RS232/422/485 Interface with physical DB9M port
Configuration by web browser, Telnet
Low power consumption with 12VDC input
Wall mount

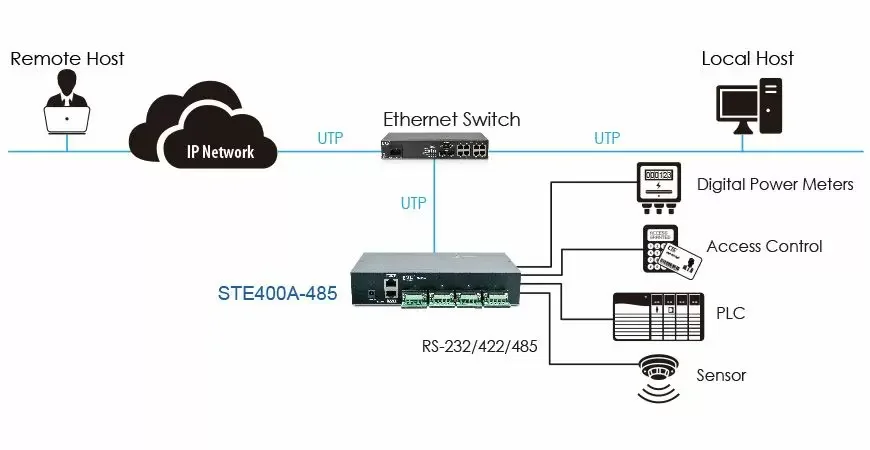

Application
Multi-Port Device Server
