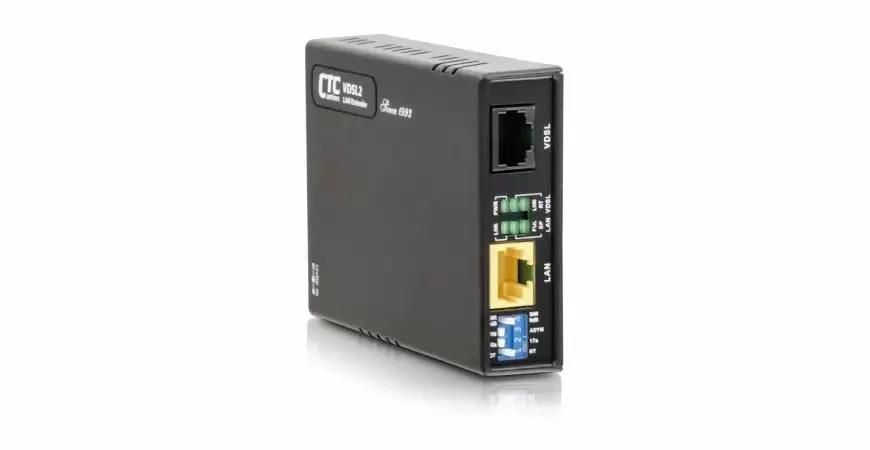

The VDSL2 Gigabit LAN Extender, VDTU2-B130 supports an aggregated bandwidth up to 300Mbps (Downstream: 150 Mbps/Upstream/150 Mbps) and delivers fiber-optic like speeds on existing copper infrastructure. The VDTU2-B130 is equipped with 1x 10/100/1000Base-T RJ-45 ports and 1x VDSL2 RJ-45. Built in a plastic enclosure.
Symmetric profiles can be applied as a long-reach Ethernet connection up to 3,000 meters, while Asymmetric profiles can be used for other services such as Video streaming or IP surveillance services which require high traffic flow in one direction. The VDTU2-B130 supports transparent LAN bridging to extend Ethernet service over UTP, Cat 5+ cables or simple single pair telephone cable. It is the best high throughput Long Reach Ethernet Extender for service providers when deploying their IP-based networking services to meet various application scenarios.
Features
High speed Ethernet extension over UTP, CAT 5e/6/7.
Supports ITU-T G.993.5 G.Vectoring and G.INP
Selectable profile setting via Dip switch
Supports VDSL2 profile 35b/30a/17a
IEEE 802.1Q VLAN tag transparent.
Cost effective bridge function to connect two Ethernet LAN
May be concentrated into FMC-CH17 chassis
