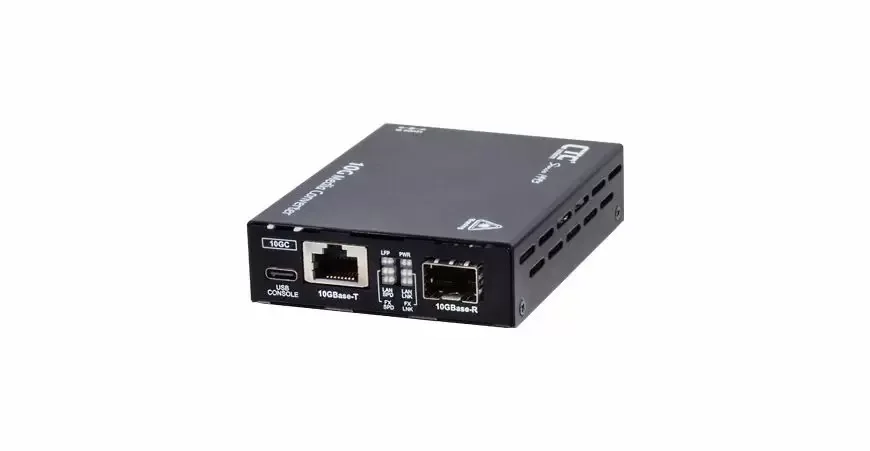

XMC-10GC

The 10G Media Converter, XMC-10GC is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-R SFP+ slot. This converter uses Cat.6a/Cat 7 twisted pair cable as copper transmission media with RJ-45 and 10G optical solution with SFP+ LC connector. The data stream can be converted bi-directionally from 10G Base-T to 10G Base-R and vice versa. With full duplex wire speed forwarding capability between these two media, the XMC-10GC brings you the best and simplest solution for the 10G Ethernet conversion between copper wire and fiber.

Features

• 1 × 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function

• 1 × 10GBASE-X SFP+ slot interface

• Supports auto-negotiation and 100Mbps and 1/2.5/5/10Gbps full duplex mode

• 16K jumbo frame size support

• Wall-mount design

• Loopback Test

• Link Fault Pass Through

• Support USB console for set up and status checking.

• Supports DWDM Tunable SFP+

• Supports Energy, Efficient, Ethernet (EEE)

• Supports Cable Diagnostic

• Supports Pattern Test

• Supports Local F/W upgrade

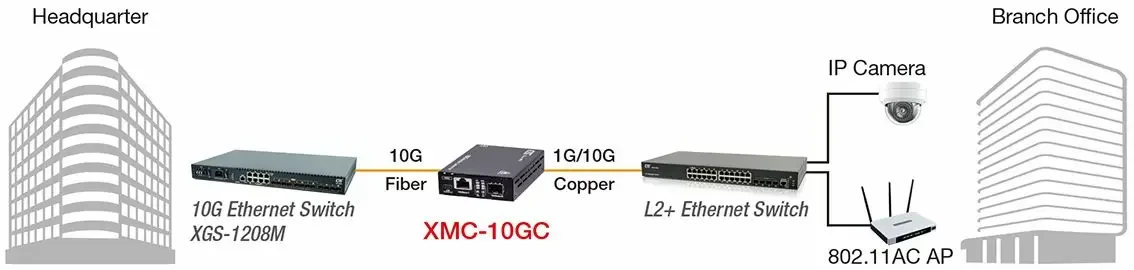

Application
