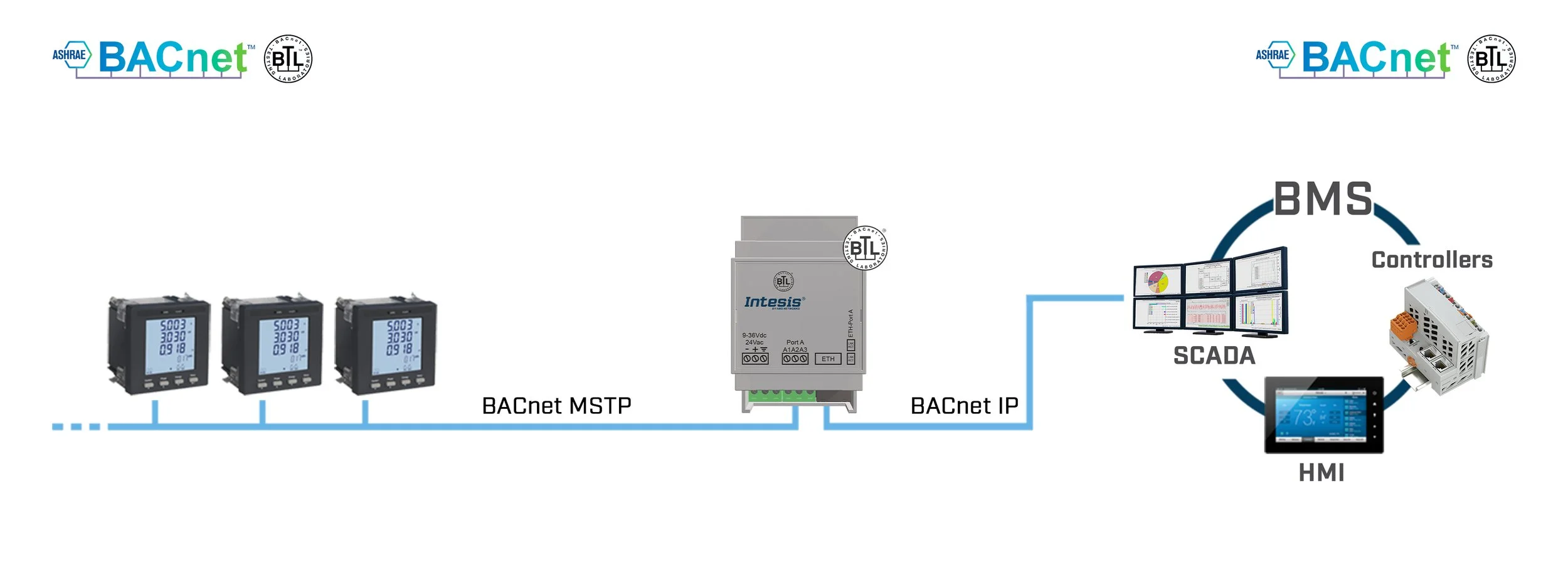

Integrate BACnet MS/TP with BACnet IP devices with our BACnet Router. It is a compact BACnet multi-network device that provides smooth routing between BACnet/IP and BACnet MS/TP networks. This integration aims to make BACnet devices, their objects, and resources accessible regardless of the BACnet network they are connected to.
Features and benefits
Support for both BACnet/IP and BACnet MS/TP
The gateway supports both BACnet/IP and BACnet MS/TP protocols.
BACnet devices scan option with BACnet Explorer
It is possible to scan the BACnet network to discover devices using the BACnet Explorer feature.
Commissioning-friendly approach with Intesis MAPS
Templates can be imported and reused as often as needed, significantly reducing commissioning time.
Configuration tool and gateway automatic updates
Both the Intesis MAPS configuration tool and the gateway's firmware can receive automatic updates.
Configuration through IP (Console) port
Configuration can be carried out through the gateway's IP (Console) port.
Support for up to 32 full-load MS/TP devices
The maximum number of BACnet MS/TP devices supported by the gateway is 32.
Support for BBMD network role
The gateway offers support for the BBMD (BACnet Broadcast Management Devices) network role.
BACnet network diagnostic signals available
BACnet network diagnostic signals can be found both in MAPS and as BACnet objects.
