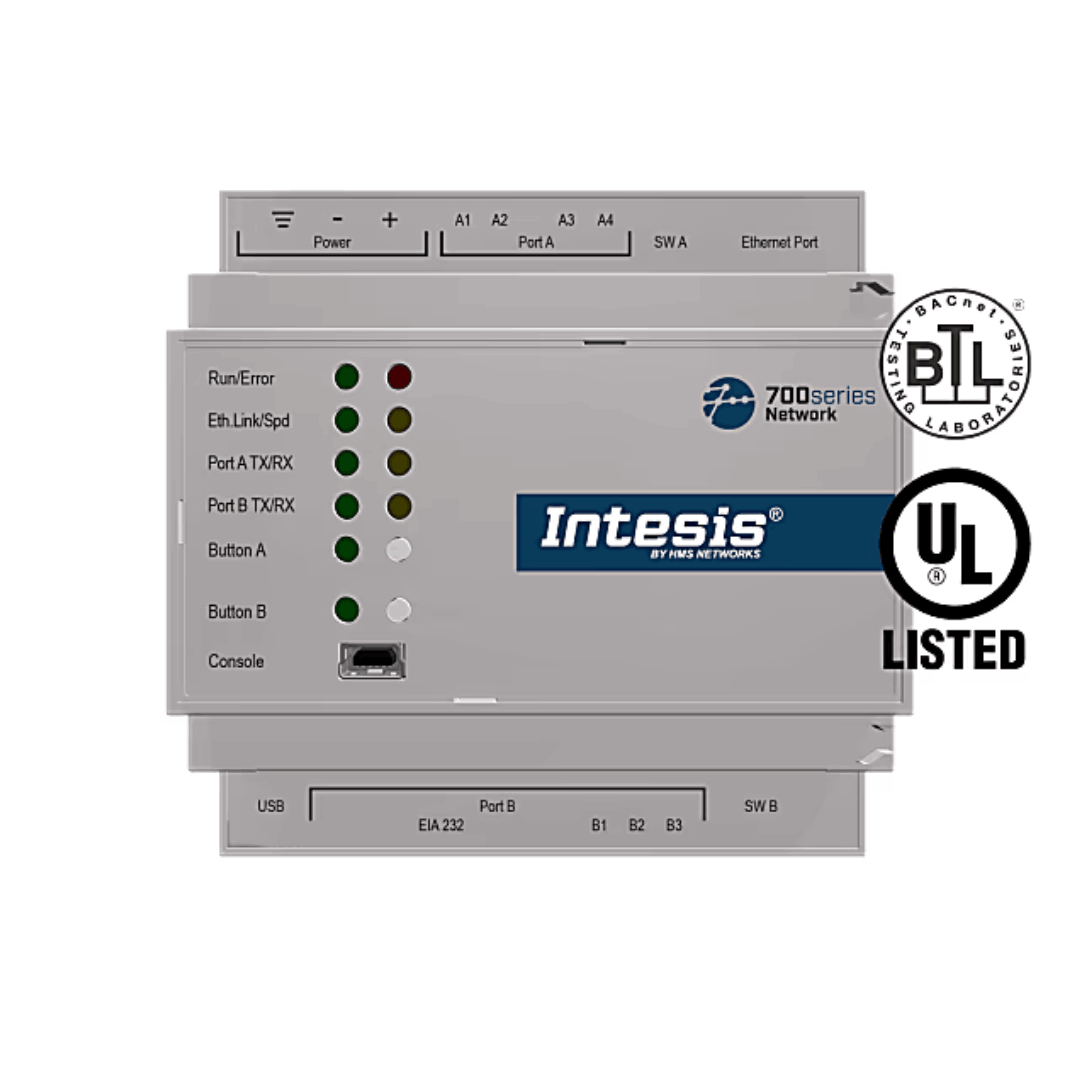

Integrate any Modbus RTU or TCP server device, or both simultaneously, with a BACnet BMS or any BACnet/IP or BACnet MS/TP controller. This integration aims to make Modbus signals and resources accessible from a BACnet-based control system or device as if they were a part of the BACnet system and vice versa.
Features and benefits
BACnet/IP client and MS/TP manager support
Both BACnet/IP client and MS/TP manager are supported.
Easy integration with Intesis MAPS
The integration process is quickly and easily managed using the Intesis MAPS configuration tool.
Commissioning-friendly approach with Intesis MAPS
Templates can be imported and reused as often as needed, significantly reducing commissioning time.
Configuration tool and gateway automatic updates
Both the Intesis MAPS configuration tool and the gateway's firmware can receive automatic updates.
BACnet Advanced features - calendars, schedules…
BACnet's advanced features, such as calendars, trend logs, schedules, and more, are available.
Two Modbus RTU lines for BACnet/IP integration
Two independent Modbus RTU ports are available for BACnet/IP integrations.
32 RTU devices per port with no repeater (255 max)
The gateway supports up to 32 Modbus devices per RTU node (without repeater) and up to 255 in total.
Template download/generation for Modbus products
Modbus device templates can be generated, imported locally, or downloaded from a repository.
