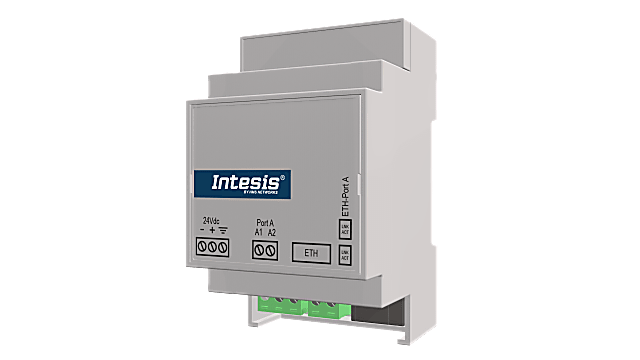

OCPP to Modbus TCP & RTU Server Gateway

$0.00

Item number INMBSOCP0010100: OCPP to Modbus TCP & RTU - Up to 1 charger

Item number INMBSOCP0200100: OCPP to Modbus TCP & RTU - Up to 20 chargers

Item number INMBSOCP0010100: OCPP to Modbus TCP & RTU - Up to 1 charger

Item number INMBSOCP0200100: OCPP to Modbus TCP & RTU - Up to 20 chargers

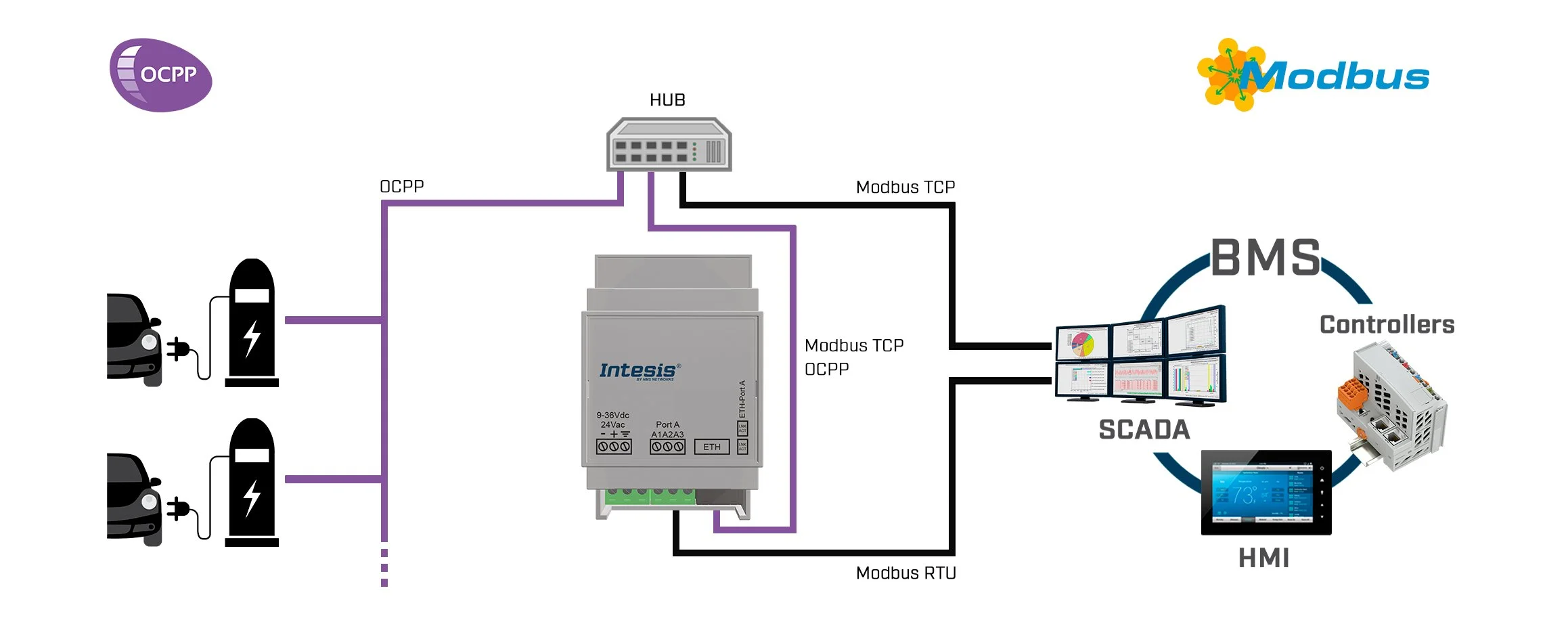

Configure this gateway as a Modbus RTU/TCP - OCPP protocol translator or move a step further with its OCPP Central System mode, which allows the gateway and the BMS to substitute the Central System of the OCPP installation and get all the potential of the Modbus-based BMS.

Features and benefits

  • Up to six concurrent Modbus TCP clients supported

  • The gateway supports up to six simultaneous Modbus TCP clients.

  • Support for both Modbus RTU and Modbus TCP

  • The gateway supports both Modbus RTU and Modbus TCP protocols.

  • Commissioning-friendly approach with Intesis MAPS

  • Templates can be imported and reused as often as needed, significantly reducing commissioning time.

  • Support for OCPP 1.6 JSON

  • The gateway supports the OCPP 1.6 JSON notation format.

  • OCPP scan function: search chargers in the network

  • A scan function is available to search for chargers in the OCPP network.

  • Fix Modbus register map

  • Fixed Modbus register map. The register number identifies the element.

  • BMS CS mode supports multiple OCPP operations

  • Authorize, Start/StopTransaction, Reservation, Local list management, and more operations supported.

  • OCPP Central System mode

  • The OCPP readings supported in OCPP Central System mode are Charger info, availability, and MeterValues.

Application
