CB Low Profile

$0.00

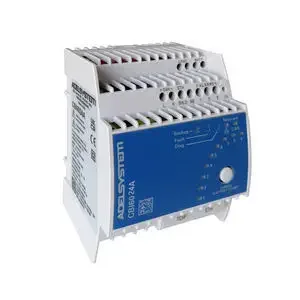

Model: CB6012A, CB6024A

The CB60 series is the new battery charger solution based on switching and Battery Care technology. The new compact design with plastic casing saves space in the electrical panel and can be mounted on a Din rail or panel. The compactness of CB60W allows it to be installed in small panels. The module has a depth of only 61 mm.

Model: CB6012A, CB6024A

Key Features

Output voltage 12, 24 Vdc
Charging with constant voltage and current (Lead, AGM, Gel, Ni-Cd, Li-Ion and LiFePO4)
Relay output for battery failure signaling
Extremely small size
Charging current up to 5A
Polycarbonate casing
Protection against short circuit, overload, output overvoltage, polarity reversal
Temperature range -25 to 70°C

Products

Battery Charger 12Vdc

- Input: Single-phase 100 – 240 - 277 Vac.
- Output: 12 Vdc 5A max
- It can run as Battery Charger or Battery Charger and Power
- supply Function
- Suited for many battery types: Open Lead Acid, Sealed Lead Acid,
- Lead Gel, Ni-Cd.
- Battery Care: automatic diagnosis and battery status.
- Charging curve IUoU: constant current and constant voltage.
- 5 Charging stages: Recovery, Bulk, Absorption, Float, Refresh.
- Short circuit, reversed polarity and overload protection.
- Signal output (Volt-Free Contact): Battery Fault, AC Fail.
- Protection degree IP20.
- DIN rail or Wall Mount.

Battery Charger 24Vdc

- Input: Single-phase 100 – 240 - 277 Vac.
- Output: 24 Vdc 3A.
- It can run as Battery Charger or Battery Charger and Power
- supply Function
- Suited for many battery types: Open Lead Acid, Sealed Lead Acid,
- Lead Gel, Ni-Cd.
- Battery Care: automatic diagnosis and battey status.
- Charging curve IUoU: constant current and constant voltage.
- 5 Charging stages: Recovery, Bulk, Absorption, Float, Refresh.
- Short circuit, reversed polarity and overload protection.
- Signal output (Volt-Free Contact): Battery Fault, AC Fail.
- Protection degree IP20.
- DIN rail or Wall Mount.
