CB

$0.00

The CB line is a range of compact, intelligent battery chargers with different charging voltages of 12V, 24V and 36V. Adel system battery chargers are recognized worldwide for their reliability and performance by manufacturers of generator sets and fire pumps.

They are switching technology devices with microcontroller, Battery Care technology for battery charging management and fault protection.

Key Features

Output voltage 12, 24, 36Vdc
3 levels of charging: fast charging; trickle charging; ground battery recovery charging
"Main or back-up" and "battery failure/discharge" signaling relays with galvanically isolated output contacts
Ultra-compact size
Output current 2.5A ÷ 25A
System self-diagnosis: high voltage; sulfated battery; reverse connection; possible shorted element; short circuit protection
Accessories: battery temperature sensor, external display
Temperature range -40 to 70°C

Products

12Vdc Battery Charger

- Input: Single-phase 115  277 Vac
- Output: Battery charging 12 Vdc; 3 A
- Suited for the following battery types: Open Lead
- Acid, Sealed Lead Acid, lead Gel and Ni-Cd
- (option)
- Automatic diagnostic of battery status. Charging
- curve IUoUo, constant voltage and current
- Switching technology, output voltage 14.4 Vdc
- Three charging levels: Boost, Trickle, Recovery.
- Protected against short circuit, inverted polarity,
- over Load.
- Signal output (contact free) for fault battery state
- Protection degree IP20 - DIN rail
- Input: Single-phase 115  277 Vac
- Output: Battery charging 12 Vdc; 10 A
- Suited for the following battery types: Open Lead Acid,
- Sealed Lead Acid, lead Gel and Ni-Cd (option)
- Automatic diagnostic of battery status. Charging curve
- IUoUo, constant voltage and current
- Switching technology, output voltage 14.4 Vdc Three
- charging levels: Boost, Trickle, Recovery.
- Protected against short circuit, inverted polarity, over
- Load.
- Signal output (contact free) for fault battery state
- Protection degree IP20 - DIN rail
- Input: Single-phase 115  277 Vac
- Output: Battery charging 12 Vdc; 35 A
- Suited for the following battery types: Open Lead Acid,
- Sealed Lead Acid, lead Gel, Ni-Cd and Li-Ion
- Automatic diagnostic of battery status. Charging curve
- IUoU, constant voltage and current
- Switching technology, output voltage 14.4 Vdc Five
- charging levels: Recovery, Bulk, Absorption, Boost, Float
- Protected against short circuit, inverted polarity, over
- Load.
- Signal output (contact free) for fault battery state
- ModBus (RTU) connection
- Protection degree IP20 - DIN rai
- Input: Single-phase 100 – 240 - 277 Vac.
- Output: 12 Vdc 5A max
- It can run as Battery Charger or Battery Charger and Power
- supply Function
- Suited for many battery types: Open Lead Acid, Sealed Lead Acid,
- Lead Gel, Ni-Cd.
- Battery Care: automatic diagnosis and battery status.
- Charging curve IUoU: constant current and constant voltage.
- 5 Charging stages: Recovery, Bulk, Absorption, Float, Refresh.
- Short circuit, reversed polarity and overload protection.
- Signal output (Volt-Free Contact): Battery Fault, AC Fail.
- Protection degree IP20.
- DIN rail or Wall Mount.

Battery Charger 12Vdc

- Input: Single-phase 48 Vdc
- Output: Battery charging 12 Vdc; 3 A
- Suited for the following battery types: Open Lead Acid,
- Sealed Lead Acid, lead Gel and Ni-Cd (option)
- Automatic diagnostic of battery status. Charging curve
- IUoUo, constant voltage and current
- Switching technology, output voltage 14.4 Vdc Three
- charging levels: Boost, Trickle, Recovery.
- Protected against short circuit, inverted polarity, over
- Load.
- Signal output (contact free) for fault battery state
- Protection degree IP20 - DIN rail

Battery Charger 12/24Vdc

- Input: Single-phase 115  277 Vac
- Output Jumper Selectable: 12 Vcd 6A; 24 Vdc 5 A
- Power Supply Function: setting by Jumper
- Suited for the following battery types: Open Lead Acid, Sealed
- Lead Acid, lead Gel, Ni-Cd, Li-Ion (option)
- Battery Care for, automatic diagnostic of battery status, short
- circuit element,
- Charging curve IUoU, constant voltage and current
- Switching technology Semi-resonant
- Four charging levels: Boost, Absorption, Float, Recovery.
- Protected against short circuit, inverted polarity, over Load.
- Signal output (contact free) for fault battery state
- Protection degree IP20 - DIN rail
- Input: Single-phase 115 – 230 - 277 Vac
- Output Jumper Selectable: 12 Vdc 6A; 24 Vdc 5 A
- Power Supply Function: setting by Jumper
- Suited for the following battery types: Open Lead Acid, Sealed
- Lead Acid, lead Gel, Ni-Cd, Li-Ion (option)
- Battery Care for automatic diagnostic of battery status, short
- circuit element
- Charging curve IUoU, constant voltage and current
- Switching technology Semi-resonant
- Charging type: Boost, Absorption, Float, Recovery.
- Protected against short circuit, inverted polarity, over Load.
- Signal output (contact free) for fault battery state
- Protection degree IP20 - DIN rail
- CANBus J1939
- Input: Single-phase 115 – 230 - 277 Vac
- Output Selectable Load:12 Vdc 15A; 24 Vdc 10A
- Output Battery charging: 12 Vdc 15A; 24 Vdc 10A
- Suited for the following battery types: Open Lead Acid,
- Sealed Lead Acid, Lead Gel, Lead Crystal, Ni-Cd, Li-Ion
- Automatic diagnostic of battery status. Charging curve
- IUoU, constant voltage and constant current Battery Life
- Test function (Battery Care)
- Four charging levels: Boost, Absorption, Float, Recovery
- Protected against short circuit and inverted polarity
- Signal output (contact free) for discharged or damaged
- battery
- Signal output (contact free) for mains or Back-UP
- Modbus RTU for all parameter battery and system
- Protection degree IP20 - DIN rail; Space saving

Battery Charger 24Vdc

- Input: Single-phase 115  277 Vac
- Output: Battery charging 24 Vdc; 3 A
- Suited for the following battery types: Open Lead
- Acid, Sealed Lead Acid, lead Gel and Ni-Cd
- (option)
- Automatic diagnostic of battery status. Charging
- curve IUoUo, constant voltage and current
- Switching technology, output voltage 28.8 Vdc
- Three charging levels: Boost, Trickle, Recovery.
- Protected against short circuit, inverted polarity,
- over Load.
- Signal output (contact free) for fault battery state
- Protection degree IP20 - DIN rail
- Input: Single-phase 115 ÷ 277 Vac
- Output: Battery charging 24 Vdc; 10 A
- Suited for the following battery types: Open Lead Acid,
- Sealed Lead Acid, lead Gel, Ni-Cd, Li-Ion
- Automatic diagnostic of battery status. Charging curve
- IUoUo, constant voltage and current
- Switching technology, output voltage 28.8 Vdc Three
- charging levels: Boost, Trickle, Recovery.
- Protected against short circuit, inverted polarity, over
- Load.
- Signal output (contact free) for fault battery state
- Protection degree IP20 - DIN rail
- Input: Single-phase 115  277 Vac
- Output: Battery charging 24 Vdc; 25 A
- Suited for the following battery types: Open Lead Acid,
- Sealed Lead Acid, lead Gel, Ni-Cd and Li-Ion
- Automatic diagnostic of battery status. Charging curve
- IUoU, constant voltage and current
- Switching technology, output voltage 28.8 Vdc Five
- charging levels: Recovery, Bulk, Absorption, Boost, Float
- Protected against short circuit, inverted polarity, over
- Load.
- Signal output (contact free) for fault battery state
- ModBus (RTU) connection
- Protection degree IP20 - DIN rail

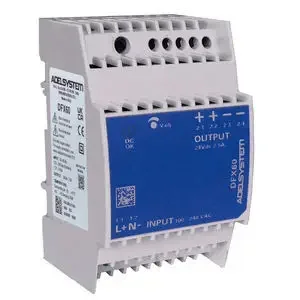

- Input: Single-phase 100 – 240 - 277 Vac.
- Output: 24 Vdc 3A.
- It can run as Battery Charger or Battery Charger and Power
- supply Function
- Suited for many battery types: Open Lead Acid, Sealed Lead Acid,
- Lead Gel, Ni-Cd.
- Battery Care: automatic diagnosis and battey status.
- Charging curve IUoU: constant current and constant voltage.
- 5 Charging stages: Recovery, Bulk, Absorption, Float, Refresh.
- Short circuit, reversed polarity and overload protection.
- Signal output (Volt-Free Contact): Battery Fault, AC Fail.
- Protection degree IP20.
- DIN rail or Wall Mount

Battery Charger 30Vdc

o Input: Single-phase 115 – 230 - 270 Vac
o Output: Battery charging 30 Vdc; 4 A Max
o Suited for the following battery types:
15 cell Open Lead Acid, Sealed Lead Acid, Gel
25 cell Ni-Cd
o Automatic diagnostic of battery status. Charging
curve IUoUo, constant voltage and current
o Switching technology
o Three charging levels: Boost, Trickle, Recovery
o Protected against short circuit, inverted
polarity, over Load
o Signal output (contact free) for fault battery
state
o Protection degree IP20 - DIN rail

Battery Charger 36Vdc

- Input: Single-phase 115  270 Vac
- Output: Battery charging 36 Vdc; 3 A
- Suited for the following battery types: Open Lead
- Acid, Sealed Lead Acid, lead Gel and Ni-Cd (option)
- Automatic diagnostic of battery status. Charging
- curve IUoUo, constant voltage and current
- Switching technology, output voltage 43.2 Vdc
- Three charging levels: Boost, Trickle, Recovery.
- Protected against short circuit, inverted polarity,
- over Load.
- Signal output (contact free) for fault battery state
- Protection degree IP20 - DIN rail
