DFLEX

$0.00

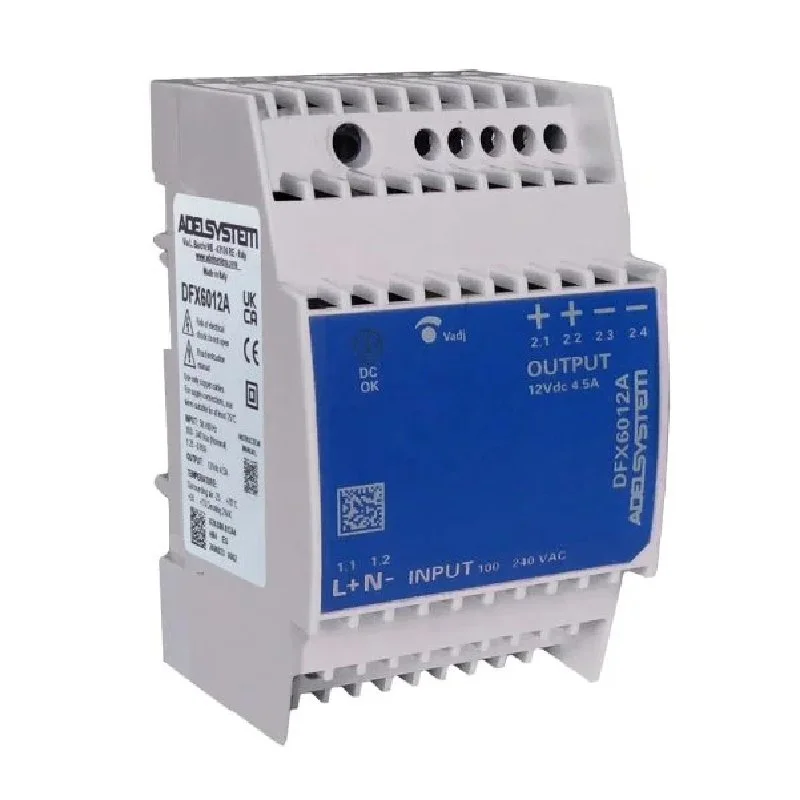

DFX power supplies were developed specifically for building automation applications and are ideal for use in distribution boards and flat control panels. DFX power supplies offer flexible mounting options and can be mounted on a DIN rail or flat surface. DFX power supplies are designed with a plastic enclosure and have a protection class II rating.

The DFX line features a wide range of input voltages from 90 to 305 VAC and power ratings from 15W to 60W. The DFX line is equipped with short-circuit and overload protections.

DFX power supplies are capable of delivering current without derating up to +55°C. The power supplies are also equipped with power boost to handle load current peaks.

The DFX15W can reach up to 20W and the DFX60W can handle up to 72W.

The DC output voltage is adjustable by trimmer, and the units have green LEDs to indicate the status of the load output voltage.

Key Features

Universal input voltage 85 - 305 Vac and 95 - 370 Vdc
Protection class II
High capacitive load startup 30,000μF
Hiccup Mode with automatic restart
Isolation voltage (IN/OUT) 4000 Vac
Load output voltage adjustment via trimmer
Up to 4 units can be connected in series

Products

Power Supplies for Building Automation 12Vdc

- For industrial and residential applications
- Wide input range: 100 – 240 – 277 Vac
- Flexible power continuity up to 20 W
- Output: 12 Vdc
- Wide temperature range: -25 to 70°C
- Overload, overvoltage and short-circuit protection
- DIN Rail and wall mounted - IP20
- Extremely small size
- 3 years warranty
- For industrial and residential applications
- Wide input range: 100 – 240 – 277 Vac

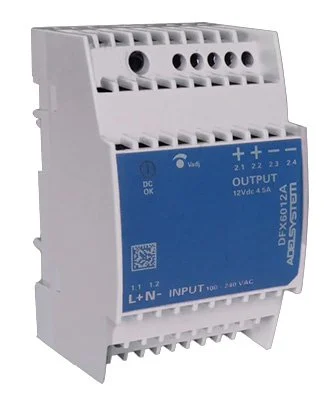

- Flexible power continuity up to 65 W
- Output:12 Vdc
- Wide temperature range: -25 to 70°C
- Overload, overvoltage and short-circuit protection
- DIN Rail and wall mounted – IP20
- Extremely small size
- 3 years warranty

Power Supplies for Building Automation 24Vdc

- For industrial and residential applications
- Wide input range: 100 – 240 – 277 Vac

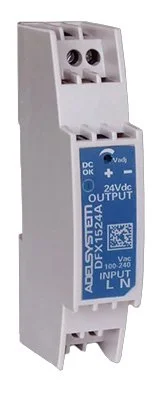

- Flexible power continuity up to 20 W
- Output: 24 Vdc
- Wide temperature range: -25 to 70°C
- Overload, overvoltage and short-circuit protection
- DIN Rail and wall mounted - IP20
- Extremely small size
- 3 years warranty
- For industrial and residential applications
- Wide input range: 100 – 240 – 277 Vac

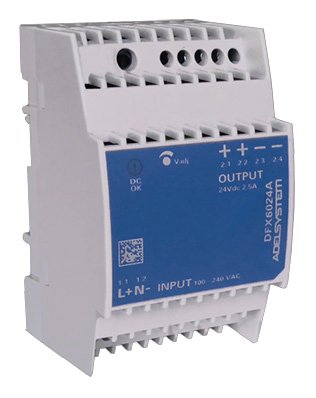

- Flexible power continuity up to 65 W
- Output:24 Vdc
- Wide temperature range: -25 to 70°C
- Overload, overvoltage and short-circuit protection
- DIN Rail and wall mounted – IP20
- Extremely small size
- 3 years warranty

Power Supplies for Building Automation 48Vdc

- For industrial and residential applications
- Wide input range: 100 – 240 – 277 Vac
- Flexible power continuity up to 65 W
- Output: 48 Vdc
- Wide temperature range: -25 to 70°C
- Overload, overvoltage and short-circuit protection
- DIN Rail and wall mounted - IP20
- Extremely small size
- 3 years warranty

Power Supplies for Building Automation 48Vdc

- For industrial and residential applications
- Wide input range: 100 – 240 – 277 Vac
- Flexible power continuity up to 65 W
- Output: 110 Vdc
- Wide temperature range: -25 to 70°C
- Overload, overvoltage and short-circuit protection
- DIN Rail and wall mounted - IP20
- Extremely small size
- 3 years warranty
