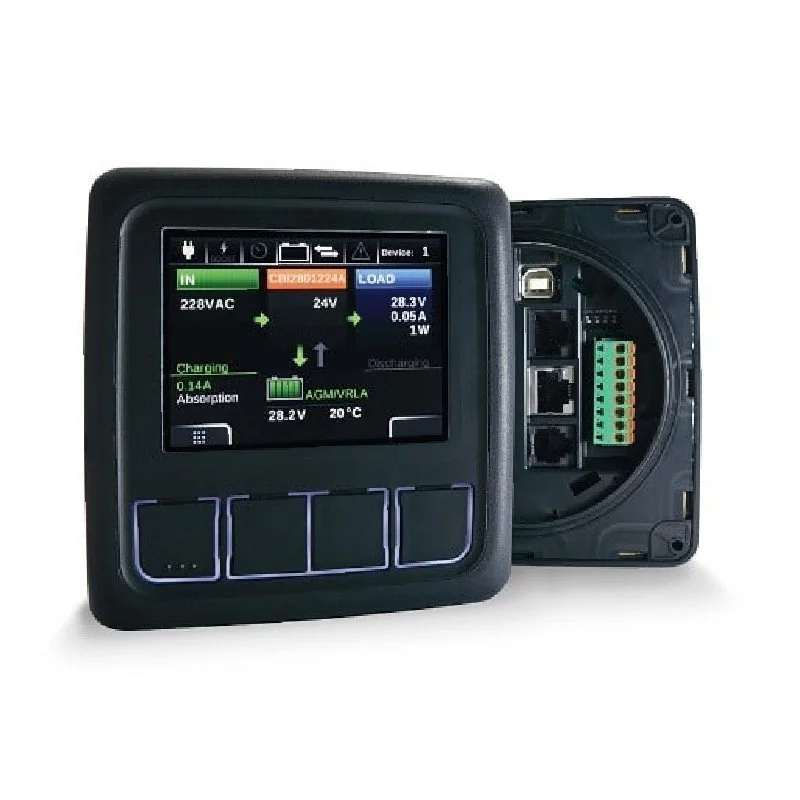

DPY351

$0.00

  • It is equipped with a 3.5" wide-angle display with high brightness that allows operation in any condition

  • Its Intuitive Human-Machine Interface (HMI ) is a clear and intuitive interface

  • Equipped with Ethernet Interface input, it allows configuration and monitoring of all devices connected to ADELbus using SNMP and Modbus TCP protocols

  • Up to 30 devices can be connected simultaneously

  • It is equipped with a 3.5" wide-angle display with high brightness that allows operation in any condition

  • Its Intuitive Human-Machine Interface (HMI ) is a clear and intuitive interface

  • Equipped with Ethernet Interface input, it allows configuration and monitoring of all devices connected to ADELbus using SNMP and Modbus TCP protocols

  • Up to 30 devices can be connected simultaneously

Key Features

  • Monitor

It is possible to monitor incoming and outgoing data, current spikes, voltage spikes, all battery parameters such as temperature, charging status, internal impedance

  • Alarm Management

All alarms in the ADELsystem device are immediately reported

  • Configure

With the DPY351, you can change the parameters of each of the ADELsystem devices: DC- Ups, Power Supplies and Battery Chargers

  • Storage

The device stores and displays the last 20 actions taken

  • Historical

The DPY351 allows you to check the history of the parameters that are recorded within each product

  • Web Server

You can configure and manage the device directly from your Server

  • Event

Actions that are coordinated through connected devices can be programmed through system automation

Products

Display Modules

  • Manages all device ADELsystem.

    Main functions:

    • Monitoring

    • Configuration

    • Alarms management

    • History

    • Logging

    • Event

    Gateway for:

    • Ethernet

    • IIoT (Cloud)

    • CAN Bus

    • MODBUS

    • USB

    • Webserver

    Protocols: SNMP, MODBUS TCP, MODBUS RTU, SAE J1939, MQTT (Cloud)

    Inputs:N°2 Digital Input; N°1 Temperature

    Output: N°1 isolated

    3.5" high-brightness LCD display with 160º viewing angle

    Anti-reflection coating for improved visibility in direct sunlight

    Simple and intuitive user interface

    Low power: 130 mA/ 1.6W typ.

    IP65
