DRA-60

$0.00
60W Single Output Switching Power Supply
DRA-60 Series:
DRA-60-12,
DRA-60-24
Model:
DRA-60-12
DRA-60-24
60W Single Output Switching Power Supply
DRA-60 Series:
DRA-60-12,
DRA-60-24
Wattage: 40W~60W
Features:
Plastic case
1∅, full range input
Io can be adjusted 10~100% by 1~10VDC, PWM signal or resistance
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for machine vision inspection system and plant cultivation applications

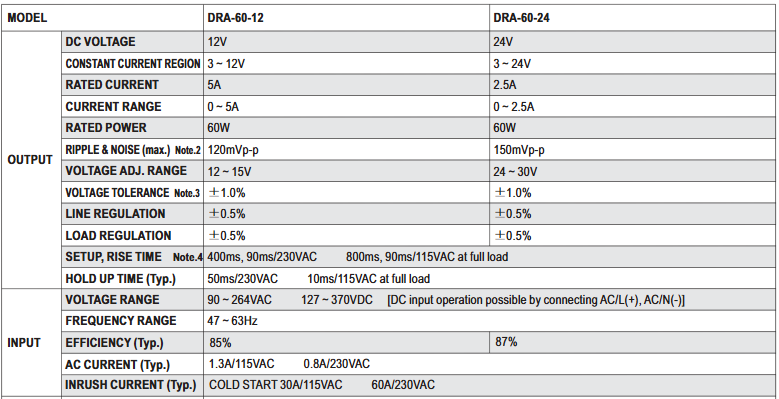

Specification Table Slider - DRA-60 Series

                    MODEL
                    DRA-60-12
                    DRA-60-24

                    OUTPUT
                    DC VOLTAGE
                    12V
                    24V

                    CONSTANT CURRENT REGION
                    3 ~ 12V
                    3 ~ 24V

                    RATED CURRENT
                    5A
                    2.5A

                    CURRENT RANGE
                    0 ~ 5A
                    0 ~ 2.5A

                    RATED POWER
                    60W
                    60W

                    RIPPLE & NOISE (max.) Note.2
                    120mVp-p
                    150mVp-p

                    VOLTAGE ADJ. RANGE
                    12 ~ 15V
                    24 ~ 30V

                    VOLTAGE TOLERANCE Note.3
                    ±1.0%
                    ±1.0%

                    LINE REGULATION
                    ±0.5%
                    ±0.5%

                    LOAD REGULATION
                    ±0.5%
                    ±0.5%

                    SETUP, RISE TIME Note.4
                    400ms, 90ms/230VAC      800ms, 90ms/115VAC at full load

                    HOLD UP TIME (Typ.)
                    50ms/230VAC      10ms/115VAC at full load

                    INPUT
                    VOLTAGE RANGE
                    90 ~ 264VAC      127 ~ 370VDC      [DC input operation possible by connecting AC/L(+), AC/N(-)]

                    FREQUENCY RANGE
                    47 ~ 63Hz

                    EFFICIENCY (Typ.)
                    85%
                    87%

                    AC CURRENT (Typ.)
                    1.3A/115VAC      0.8A/230VAC

                    INRUSH CURRENT (Typ.)
                    COLD START 30A/115VAC      60A/230VAC

                    PROTECTION
                    OVERLOAD
                    95 ~ 108% rated output power

                    Protection type : Constant current limiting, recovers automatically after fault condition is removed

                    OVER VOLTAGE
                    14.49 ~ 18.63V
                    28.98 ~ 37.26V

                    Protection type : Shut down o/p voltage, re-power on to recover

                    ENVIRONMENT
                    WORKING TEMP.
                    -30 ~ +70℃ (Refer to "Derating Curve")

                    WORKING HUMIDITY
                    20 ~ 90% RH non-condensing

                    STORAGE TEMP., HUMIDITY
                    -40 ~ +85℃ , 10 ~ 95% RH

                    TEMP. COEFFICIENT
                    ±0.03%/℃ (0 ~ 50℃) on output

                    VIBRATION
                    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

                    SAFETY &
EMC
(Note 5)
                    SAFETY STANDARDS
                    UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

                    WITHSTAND VOLTAGE
                    I/P-O/P:3KVAC      I/P-FG:2KVAC      O/P-FG:0.5KVAC

                    ISOLATION RESISTANCE
                    I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH

                    EMC EMISSION
                    Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020

                    EMC IMMUNITY
                    Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61204-3, light industry level, criteria A, EAC TP TC 020

                    OTHERS
                    MTBF
                    2930.8K hrs min.      Telcordia SR-332 (Bellcore) ; 436.4K hrs min.      MIL-HDBK-217F (25℃)

                    DIMENSION
                    40*90*100mm (W*H*D)

                    PACKING
                    0.3Kg; 42pcs/13.6Kg/0.82CUFT
