DRDN20

$0.00

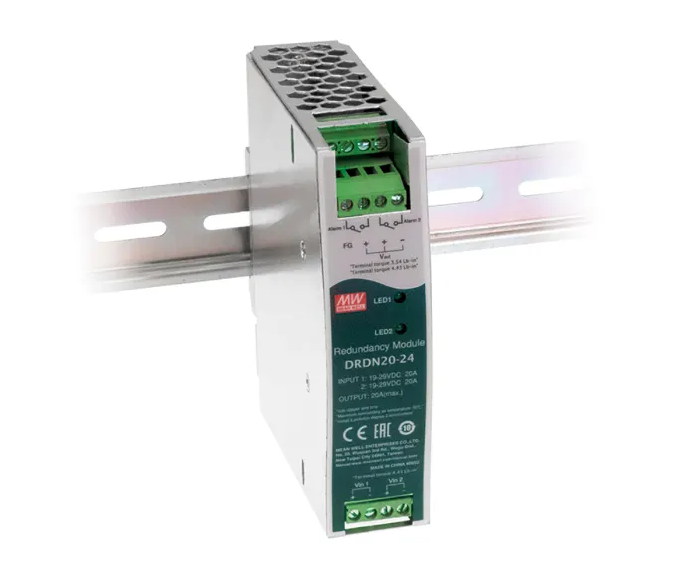

20A DIN Rail Type Redundancy Module
Wattage :NA
Features　:
20A redundant module
20A/40A DIN Rail Buffer Module
20A/40A DC UPS module
AC Inrush Current Limiter

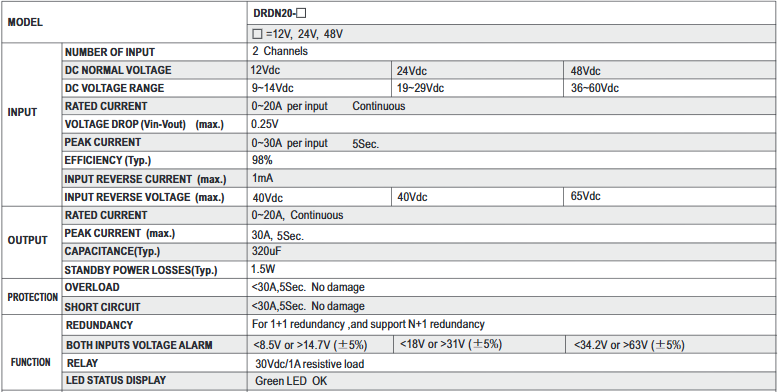

Specification Table Slider - DRDN20 Series

                    MODEL
                    DRDN20-☐

                    ☐ = 12V, 24V, 48V

                    INPUT
                    NUMBER OF INPUT
                    2 Channels

                    DC NORMAL VOLTAGE
                    12Vdc
                    24Vdc
                    48Vdc

                    DC VOLTAGE RANGE
                    9 ~ 14Vdc
                    19 ~ 29Vdc
                    36 ~ 60Vdc

                    RATED CURRENT
                    0 ~ 20A per input      Continuous

                    VOLTAGE DROP (Vin-Vout) (max.)
                    0.25V

                    PEAK CURRENT
                    0 ~ 30A per input      5Sec.

                    EFFICIENCY (Typ.)
                    98%

                    INPUT REVERSE CURRENT (max.)
                    1mA

                    INPUT REVERSE VOLTAGE (max.)
                    40Vdc
                    40Vdc
                    65Vdc

                    OUTPUT
                    RATED CURRENT
                    0 ~ 20A, Continuous

                    PEAK CURRENT (max.)
                    30A, 5Sec.

                    CAPACITANCE(Typ.)
                    320uF

                    STANDBY POWER LOSSES(Typ.)
                    1.5W

                    PROTECTION
                    OVERLOAD
                    <30A, 5Sec. No damage

                    SHORT CIRCUIT
                    <30A, 5Sec. No damage

                    REDUNDANCY
                    For 1+1 redundancy ,and support N+1 redundancy

                    FUNCTION
                    BOTH INPUTS VOLTAGE ALARM
                    <8.5V or >14.7V (±5%)
                    <18V or >31V (±5%)
                    <34.2V or >63V (±5%)

                    RELAY
                    30Vdc/1A resistive load

                    LED STATUS DISPLAY
                    Green LED OK

                    ENVIRONMENT
                    COOLING
                    Free air convection

                    WORKING TEMP. Note.2
                    -40 ~ +80℃ (Refer to "Derating Curve")

                    WORKING HUMIDITY
                    5 ~ 95% RH non-condensing

                    STORAGE TEMP.
                    -40 ~ +85℃

                    TEMP. COEFFICIENT
                    ±0.03%/℃ (0 ~ 60℃)

                    VIBRATION
                    Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting: Compliance to IEC61373

                    OPERATING ALTITUDE Note.3
                    5000 meters/OVC Ⅱ

                    SAFETY &
EMC
(Note.4)
                    SAFETY STANDARDS
                    IEC62368-1, UL62368-1, EAC TP TC 004 approved

                    WITHSTAND VOLTAGE
                    IP/OP - Chassis : 0.5KVac ; IP/OP - Relay : 0.5KVac ; Relay - Chassis : 0.5KVac

                    ISOLATION RESISTANCE
                    IP/OP - Chassis, IP/OP - Relay, Relay - Chassis:>100M Ohms / 500VDC / 25℃ / 70% RH

                    EMC EMISSION

                                    Parameter
                                    Standard
                                    Test Level / Note

                                    Conducted
                                    BS EN/EN55032(CISPR32)
                                    Class B

                                    Radiated
                                    BS EN/EN55032(CISPR32)
                                    Class B

                                    Voltage Flicker
                                    -----
                                    -----

                                    Harmonic Current
                                    -----
                                    -----

                    EMC IMMUNITY
                    BS EN/EN55035, BS EN/EN61000-6-2(BS EN/EN50082-2)

                                    Parameter
                                    Standard
                                    Test Level / Note

                                    ESD
                                    BS EN/EN61000-4-2
                                    Level 4, 15KV air ; Level 3, 8KV contact ; criteria A

                                    Radiated
                                    BS EN/EN61000-4-3
                                    Level 3, 10V/m ; criteria A

                                    EFT / Burst
                                    BS EN/EN61000-4-4
                                    Level 3, 2KV ; criteria A

                                    Surge
                                    BS EN/EN61000-4-5
                                    Level 3, 1KV/Line-Line ; Level 3, 2KV/Line-Chassis ; criteria A

                                    Conducted
                                    BS EN/EN61000-4-6
                                    Level 3, 10V ; criteria A

                                    Magnetic Field
                                    BS EN/EN61000-4-8
                                    Level 4, 30A/m ; criteria A

                    OTHERS
                    MTBF
                    1836.0K hrs min.      Telcordia SR-332 (Bellcore) ; 482.1K hrs min.      MIL-HDBK-217F (25℃)

                    DIMENSION
                    32*125.2*102mm (W*H*D)

                    PACKING
                    0.35Kg; 28pcs/10.8Kg/1.23CUFT
