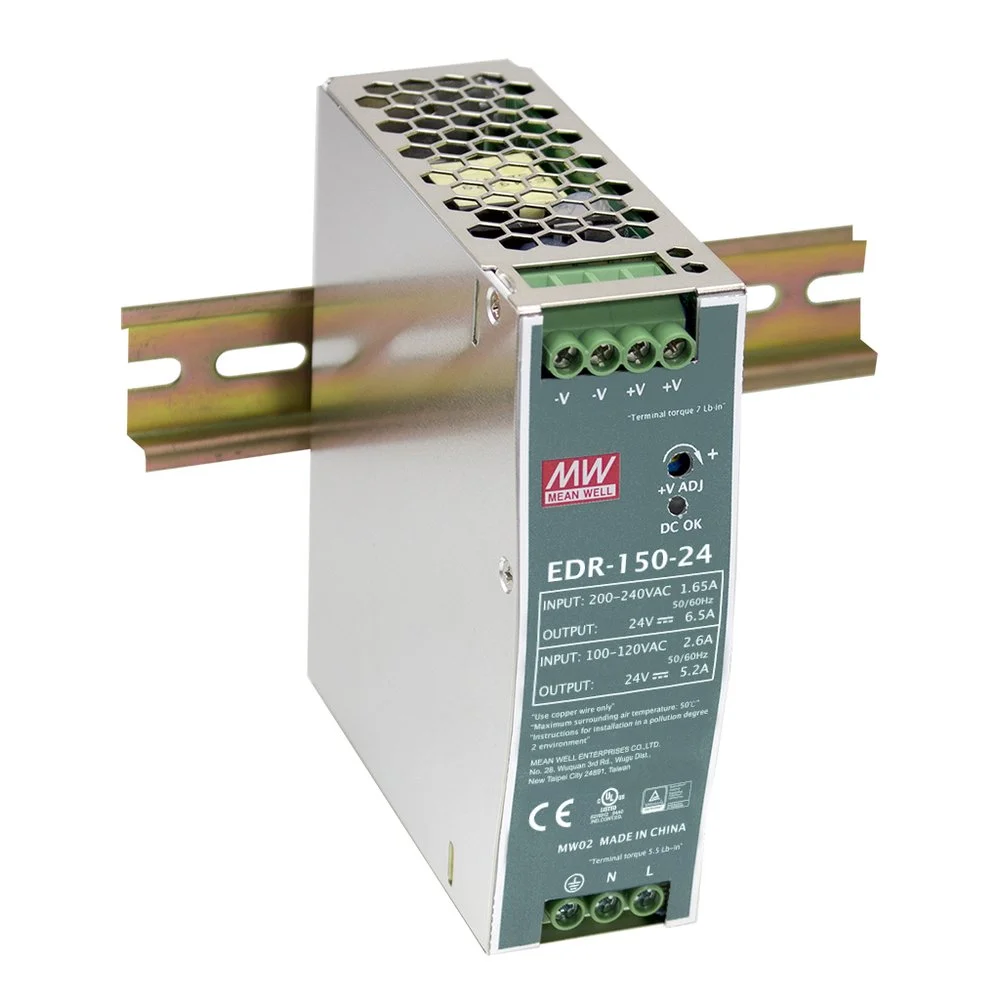

150W Single Output Industrial DIN RAIL
Series:
EDR-150-24
150W Single Output Industrial DIN RAIL
Series:
EDR-150-24
Wattage: 75W~150W
Features:
Metal case, low cost
1∅, full range input
Slim size, model width: 32 ~ 40mm
EMC EN55022 class A
Assemble on industrial rail TS-35 / 7.5 or 15
2 years warranty

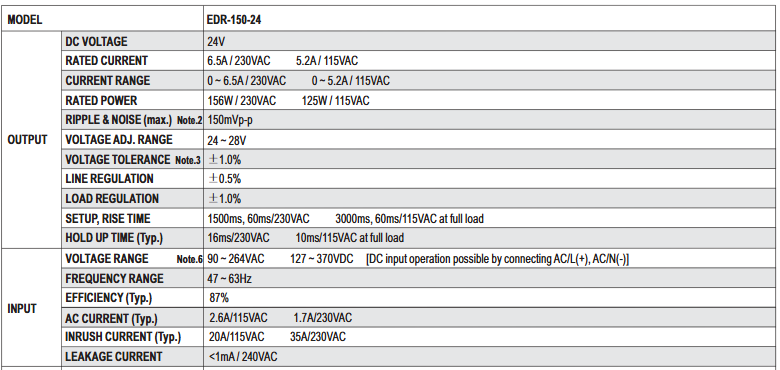

Specification Table Slider - EDR-150-24

                    MODEL
                    EDR-150-24

                    OUTPUT
                    DC VOLTAGE
                    24V

                    RATED CURRENT
                    6.5A / 230VAC      5.2A / 115VAC

                    CURRENT RANGE
                    0 ~ 6.5A / 230VAC      0 ~ 5.2A / 115VAC

                    RATED POWER
                    156W / 230VAC      125W / 115VAC

                    RIPPLE & NOISE (max.) Note.2
                    150mVp-p

                    VOLTAGE ADJ. RANGE
                    24 ~ 28V

                    VOLTAGE TOLERANCE Note.3
                    ±1.0%

                    LINE REGULATION
                    ±0.5%

                    LOAD REGULATION
                    ±1.0%

                    SETUP, RISE TIME
                    1500ms, 60ms/230VAC      3000ms, 60ms/115VAC at full load

                    HOLD UP TIME (Typ.)
                    16ms/230VAC      10ms/115VAC at full load

                    INPUT
                    VOLTAGE RANGE Note.6
                    90 ~ 264VAC      127 ~ 370VDC      [DC input operation possible by connecting AC/L(+), AC/N(-)]

                    FREQUENCY RANGE
                    47 ~ 63Hz

                    EFFICIENCY (Typ.)
                    87%

                    AC CURRENT (Typ.)
                    2.6A/115VAC      1.7A/230VAC

                    INRUSH CURRENT (Typ.)
                    20A/115VAC      35A/230VAC

                    LEAKAGE CURRENT
                    <1mA / 240VAC

                    PROTECTION
                    OVERLOAD Note.7
                    105 ~ 130% rated output power

                    Protection type : Constant current limiting, recovers automatically after fault condition is removed / 230VAC

                    105 ~ 150% rated output power

                    Protection type : Constant current limiting, recovers automatically after fault condition is removed / 115VAC

                    OVER VOLTAGE

                        29 ~ 33V

                        Protection type : Shut down o/p voltage, re-power on to recover

                    OVER TEMPERATURE
                    Shut down o/p voltage, re-power on to recover

                    ENVIRONMENT
                    WORKING TEMP.
                    -20 ~ +60℃ (Refer to "Derating Curve")

                    WORKING HUMIDITY
                    20 ~ 95% RH non-condensing

                    STORAGE TEMP., HUMIDITY
                    -40 ~ +85℃ , 10 ~ 95% RH

                    TEMP. COEFFICIENT
                    ±0.03%/℃ (0 ~ 50℃)

                    VIBRATION
                    Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

                    SAFETY &
EMC
(Note 4)
                    SAFETY STANDARDS
                    UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1 approved; (meet BS EN/EN60204-1)

                    WITHSTAND VOLTAGE
                    I/P-O/P:3KVAC      I/P-FG:2KVAC      O/P-FG:0.5KVAC

                    ISOLATION RESISTANCE
                    I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃ / 70% RH

                    EMC EMISSION
                    Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2, Class A (≤80% Load), BS EN/EN61000-3-3, EAC TP TC 020, CNS15936 Class A

                    EMC IMMUNITY
                    Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

                    OTHERS
                    MTBF
                    2717.1K hrs min.      Telcordia SR-332 (Bellcore) ; 472.5K hrs min.      MIL-HDBK-217F (25℃)

                    DIMENSION
                    40*125.2*113.5mm (W*H*D)

                    PACKING
                    0.6Kg; 20pcs/13Kg/1.02CUFT
