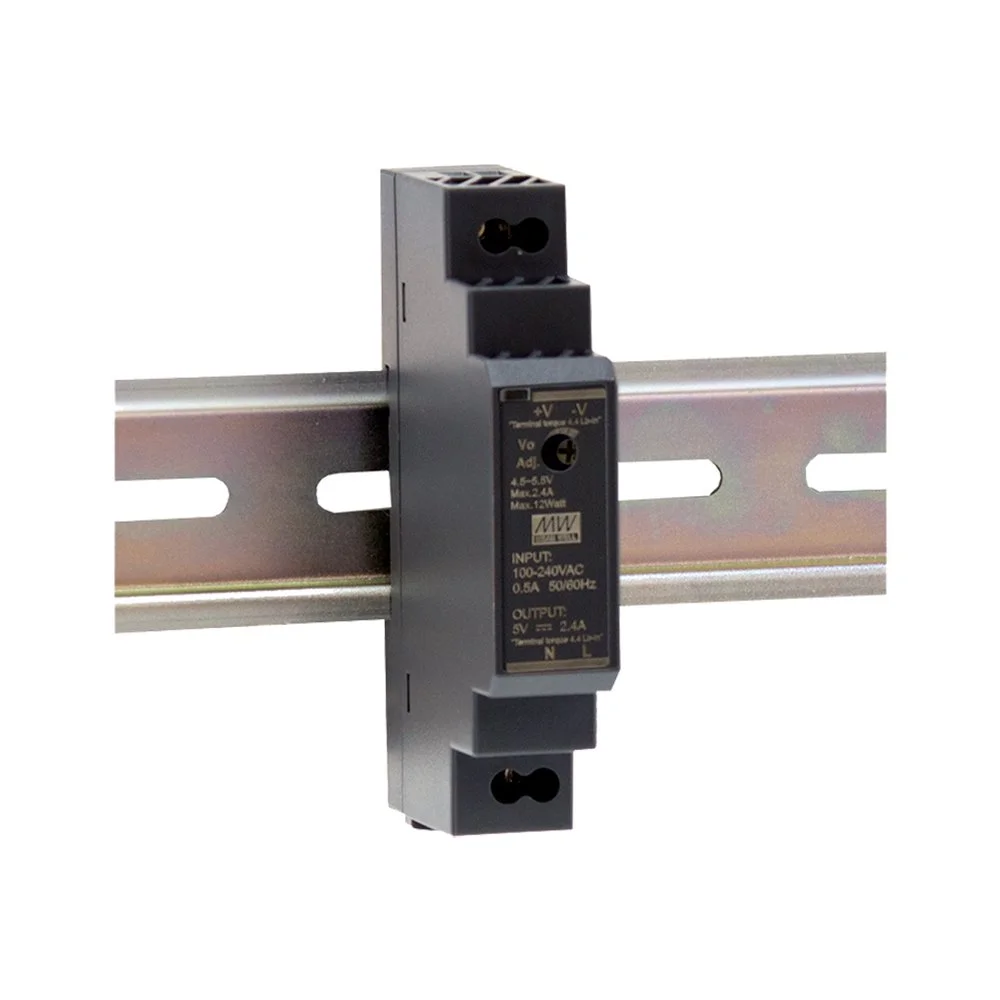

HDR-15

$0.00

15W Ultra Slim Step Shape DIN Rail

HDR-15 series:

HDR-15-5,

HDR-15-12,

HDR-15-15,

HDR-15-24,

HDR-15-48

Model:

15W Ultra Slim Step Shape DIN Rail

HDR-15 series:

HDR-15-5,

HDR-15-12,

HDR-15-15,

HDR-15-24,

HDR-15-48

Wattage :15W~150W

Features:

  • Plastic case, step shape

  • 1∅, full range input

  • Compact size, 1SU~6SU width (DIN EN43880)

  • Isolation class II

  • DC output voltage adjustable

  • No load power consumption <0.3W

  • Assemble on industrial rail TS-35 / 7.5 or 15

  • Suitable for building automation and control of household appliance

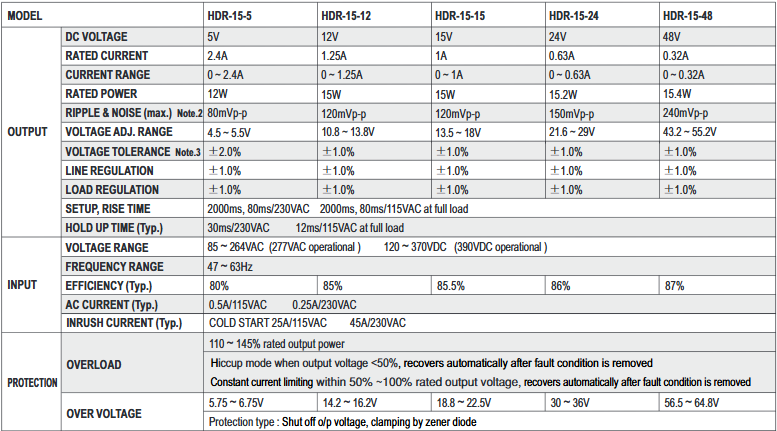

Specification Table Slider - HDR-15 Series

Specification

MODEL HDR-15-5 HDR-15-12 HDR-15-15 HDR-15-24 HDR-15-48
OUTPUT DC VOLTAGE 5V 12V 15V 24V 48V
RATED CURRENT 2.4A 1.25A 1A 0.63A 0.32A
CURRENT RANGE 0 ~ 2.4A 0 ~ 1.25A 0 ~ 1A 0 ~ 0.63A 0 ~ 0.32A
RATED POWER 12W 15W 15W 15.2W 15.4W
RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p 240mVp-p
VOLTAGE ADJ. RANGE 4.5 ~ 5.5V 10.8 ~ 13.8V 13.5 ~ 18V 21.6 ~ 29V 43.2 ~ 55.2V
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 2000ms, 80ms/230VAC      2000ms, 80ms/115VAC at full load
HOLD UP TIME (Typ.) 30ms/230VAC      12ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC (277VAC operational)      120 ~ 370VDC (390VDC operational)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80% 85% 85.5% 86% 87%
AC CURRENT (Typ.) 0.5A/115VAC      0.25A/230VAC
INRUSH CURRENT (Typ.) COLD START 25A/115VAC      45A/230VAC
PROTECTION OVERLOAD 110 ~ 145% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V 14.2 ~ 16.2V 18.8 ~ 22.5V 30 ~ 36V 56.5 ~ 64.8V
Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70℃ (Refer to "Derating Curve")
WORKING QUANTITY / HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃ , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 50℃) RH non-condensing
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE 2000 meters
OVER VOLTAGE CATEGORY Ⅲ ; According to EN61558, EN50178, EN60664-1, EN62477-1 ; altitude up to 2000 meters
SAFETY &
EMC
(Note 4)		 SAFETY STANDARDS UL62368-1, UL508, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, IEC62368-1, EAC TP TC 004, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60951:2005(except for 48) approved; Design refer to TUV BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION
Parameter Standard Test Level / Note
Conducted BS EN/EN55032(CISPR32), CNS15936 Class B
Radiated BS EN/EN55032(CISPR32), CNS15936 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -------
BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3
EMC IMMUNITY
Parameter Standard Test Level / Note
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/L-N, criteria A
Conducted BS EN/EN61000-4-6 Level 3, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
