The HLG Series is MEAN WELL's flagship IP67/IP65-rated LED AC/DC power supply family. It is designed for LED lighting, architectural lighting, industrial lighting, horticulture (grow lights), street lighting, high-bay lighting, and outdoor applications. The series offers constant voltage (CV), constant current (CC), and CV+CC operation with multiple dimming options and excellent reliability.

Key Features Table
    Key Features

                Feature
                Description

                Power Range
                40W – 600W

                Input Voltage
                Universal 90–305VAC

                Output Type
                Constant Voltage + Constant Current

                Ingress Protection
                IP67 / IP65 (model dependent)

                Cooling
                Fanless, Free Air Convection

                Efficiency
                Up to 96%

                Operating Temperature
                -40°C to +90°C case temperature

                Surge Protection
                Up to 10kV / 6kV (model dependent)

                Dimming Options
                3-in-1 (0–10V, PWM, Resistance), Timer Dimming, DALI-2, KNX, Matter, Smart Timer (model dependent)

                Protection
                Short Circuit, Over Current, Over Voltage, Over Temperature

                Lifetime
                Up to 50,000 hours

                Safety Standards
                UL, ENEC, CE, CB, UKCA and other global certifications

                Warranty
                7 Years

HLG Series Product Families

Series	Power	Available Models

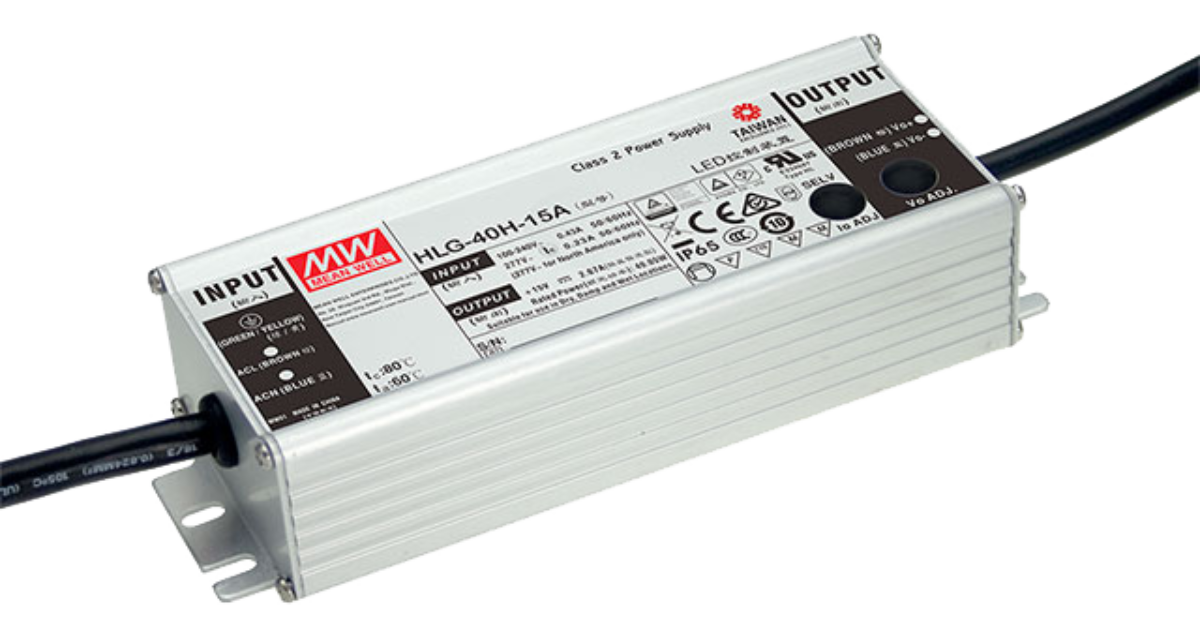

HLG-40H Series	40W	HLG-40H-12, HLG-40H-15, HLG-40H-20, HLG-40H-24, HLG-40H-30, HLG-40H-36, HLG-40H-42, HLG-40H-48, HLG-40H-54

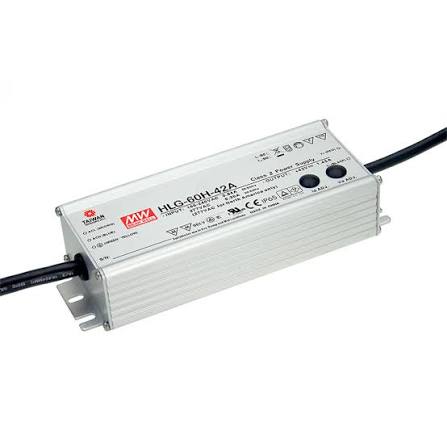

HLG-60H Series	60W	HLG-60H-12, HLG-60H-15, HLG-60H-20, HLG-60H-24, HLG-60H-30, HLG-60H-36, HLG-60H-42, HLG-60H-48, HLG-60H-54

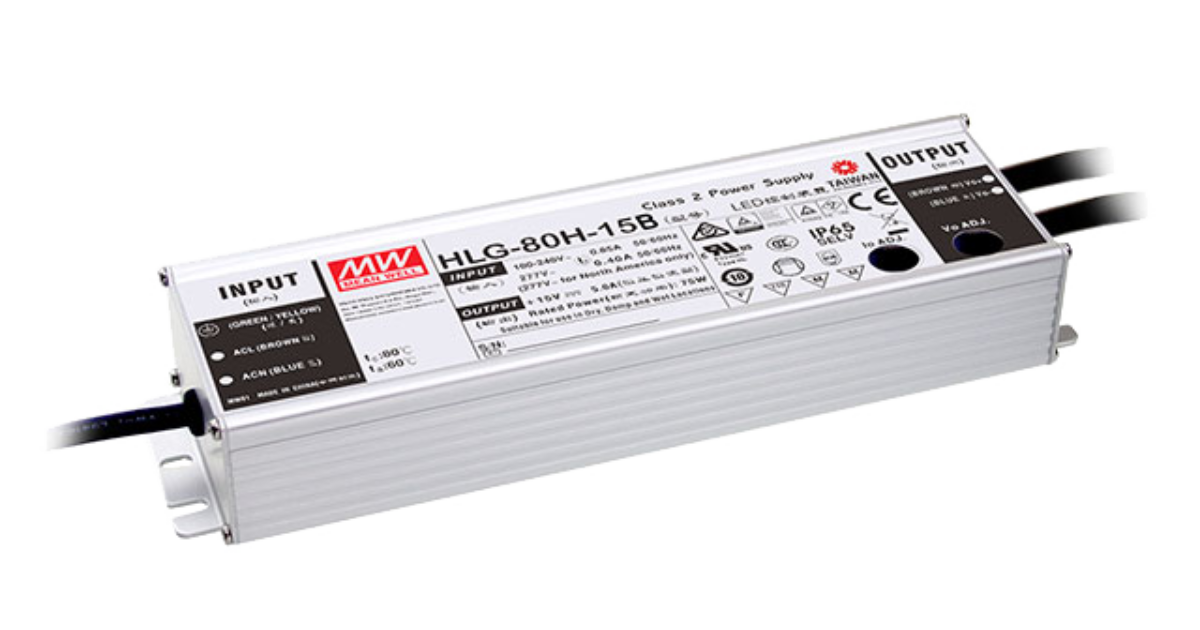

HLG-80H Series	80W	HLG-80H-12, HLG-80H-15, HLG-80H-20, HLG-80H-24, HLG-80H-30, HLG-80H-36, HLG-80H-42, HLG-80H-48, HLG-80H-54

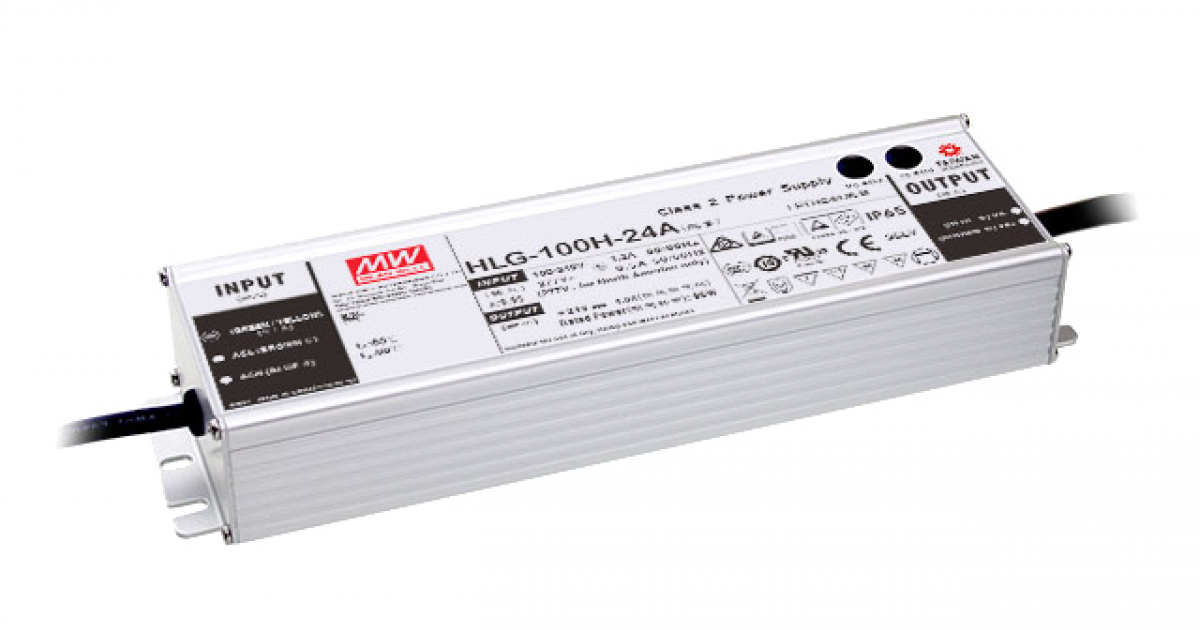

HLG-100H Series	100W	HLG-100H-12, HLG-100H-15, HLG-100H-20, HLG-100H-24, HLG-100H-30, HLG-100H-36, HLG-100H-42, HLG-100H-48, HLG-100H-54

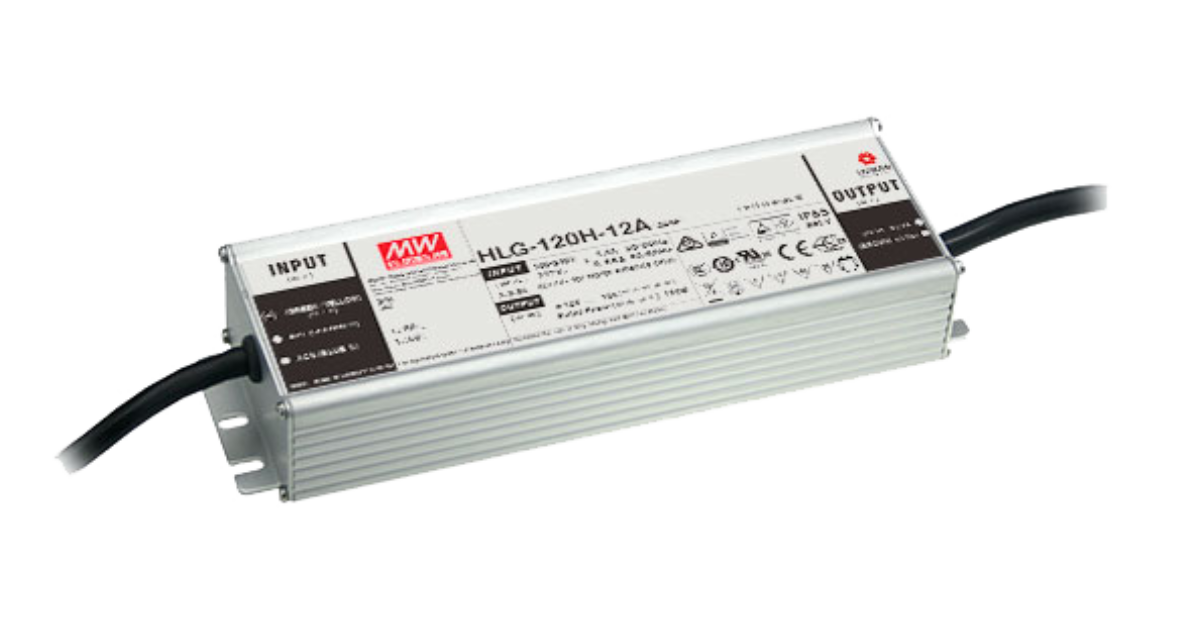

HLG-120H Series	120W	HLG-120H-12, HLG-120H-15, HLG-120H-20, HLG-120H-24, HLG-120H-30, HLG-120H-36, HLG-120H-42, HLG-120H-48, HLG-120H-54

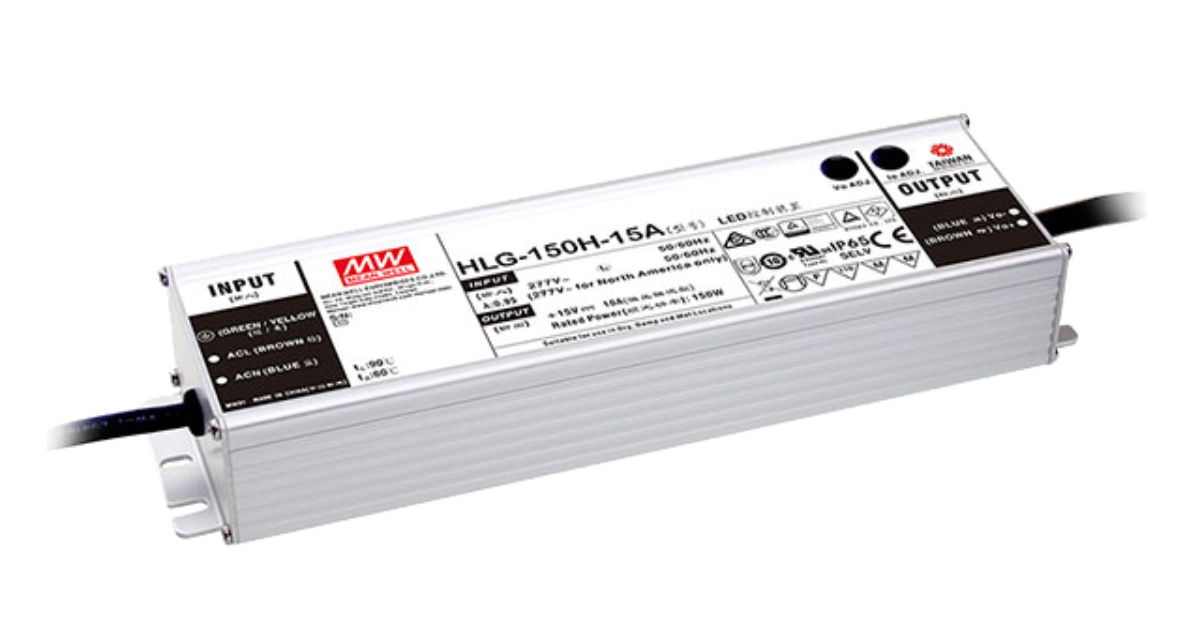

HLG-150H Series	150W	HLG-150H-12, HLG-150H-15, HLG-150H-20, HLG-150H-24, HLG-150H-30, HLG-150H-36, HLG-150H-42, HLG-150H-48, HLG-150H-54

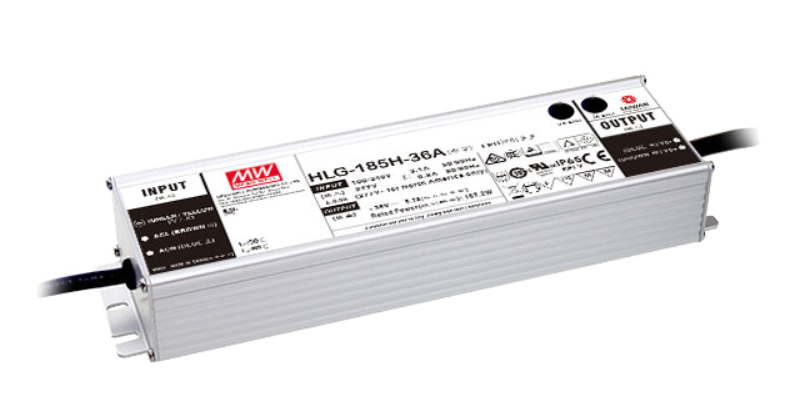

HLG-185H Series	185W	HLG-185H-12, HLG-185H-15, HLG-185H-20, HLG-185H-24, HLG-185H-30, HLG-185H-36, HLG-185H-42, HLG-185H-48, HLG-185H-54

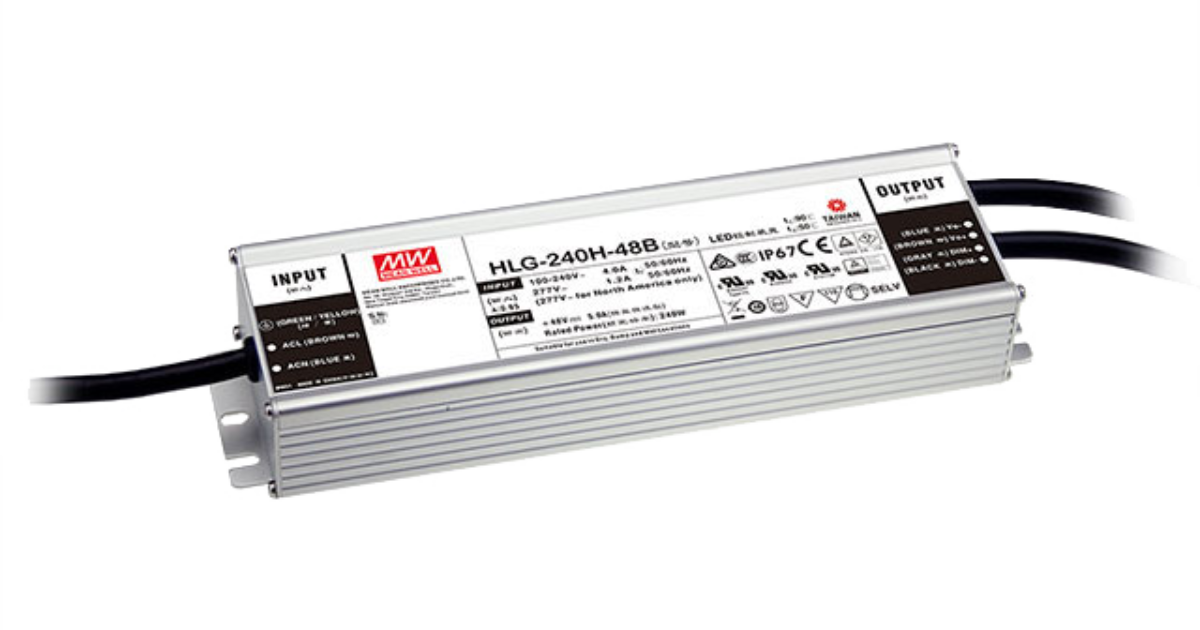

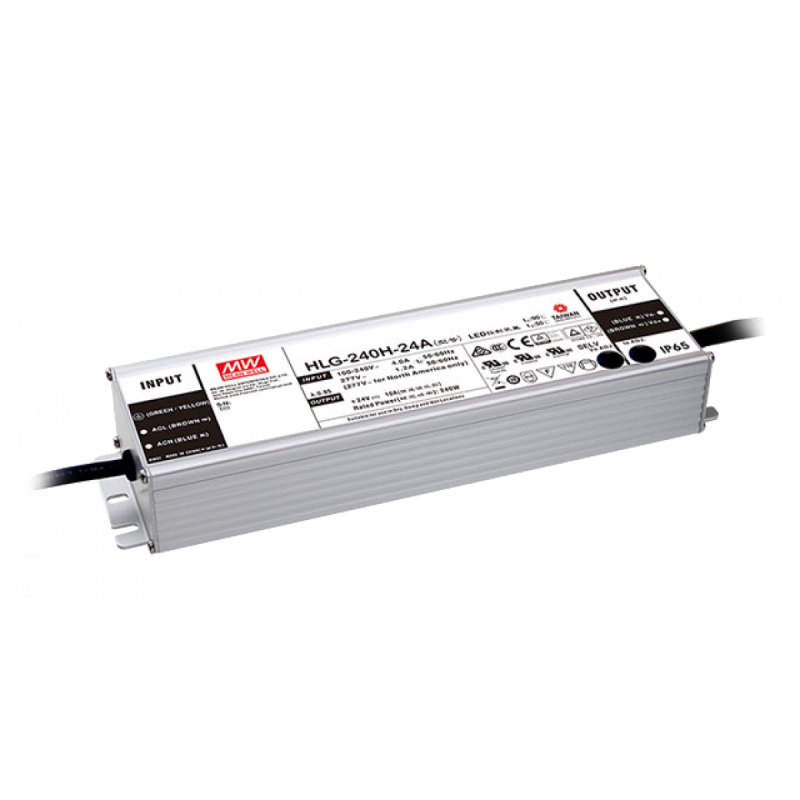

HLG-240H Series	240W	HLG-240H-12, HLG-240H-15, HLG-240H-20, HLG-240H-24, HLG-240H-30, HLG-240H-36, HLG-240H-42, HLG-240H-48, HLG-240H-54

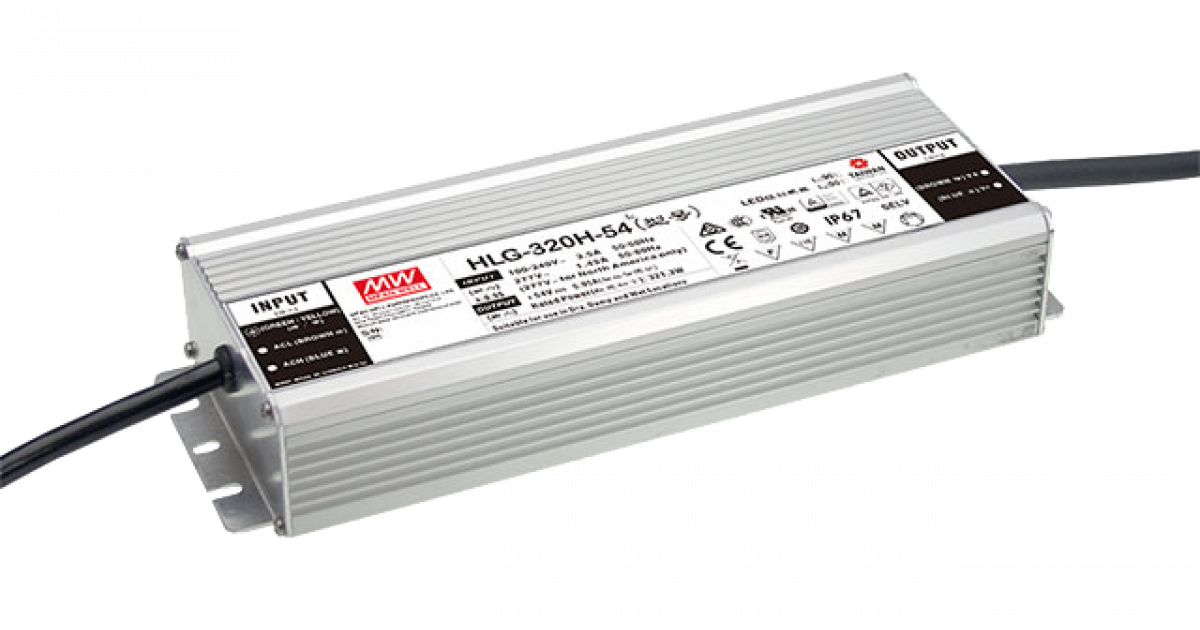

HLG-320H Series	320W	HLG-320H-12, HLG-320H-15, HLG-320H-20, HLG-320H-24, HLG-320H-30, HLG-320H-36, HLG-320H-42, HLG-320H-48, HLG-320H-54

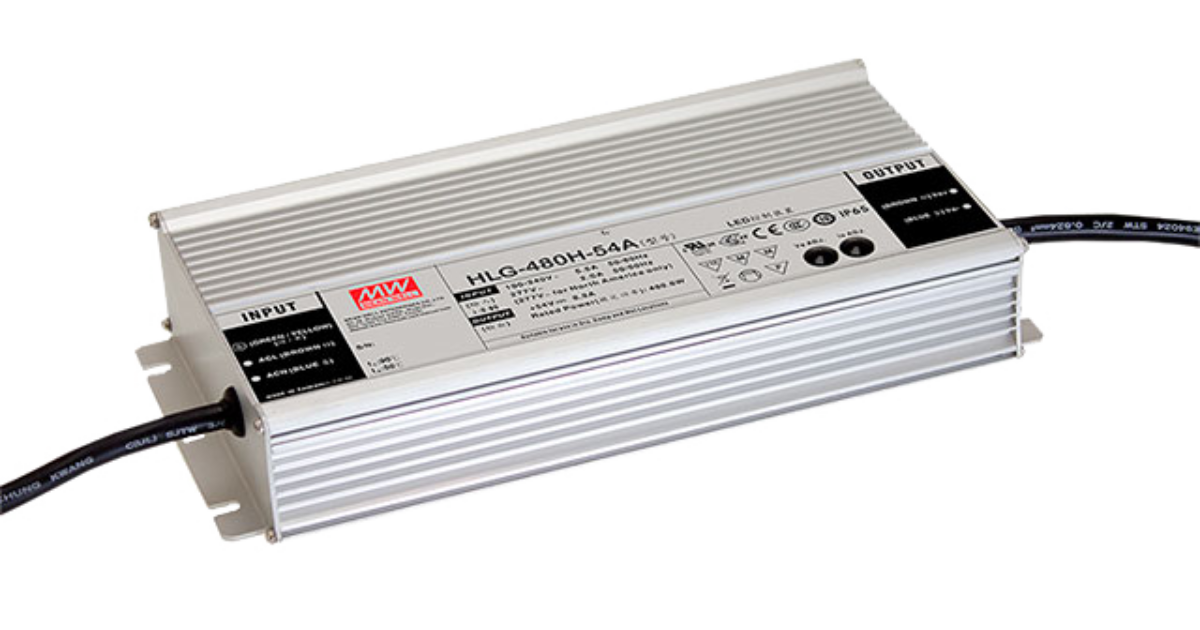

HLG-480H Series	480W	HLG-480H-12, HLG-480H-15, HLG-480H-20, HLG-480H-24, HLG-480H-30, HLG-480H-36, HLG-480H-42, HLG-480H-48, HLG-480H-54

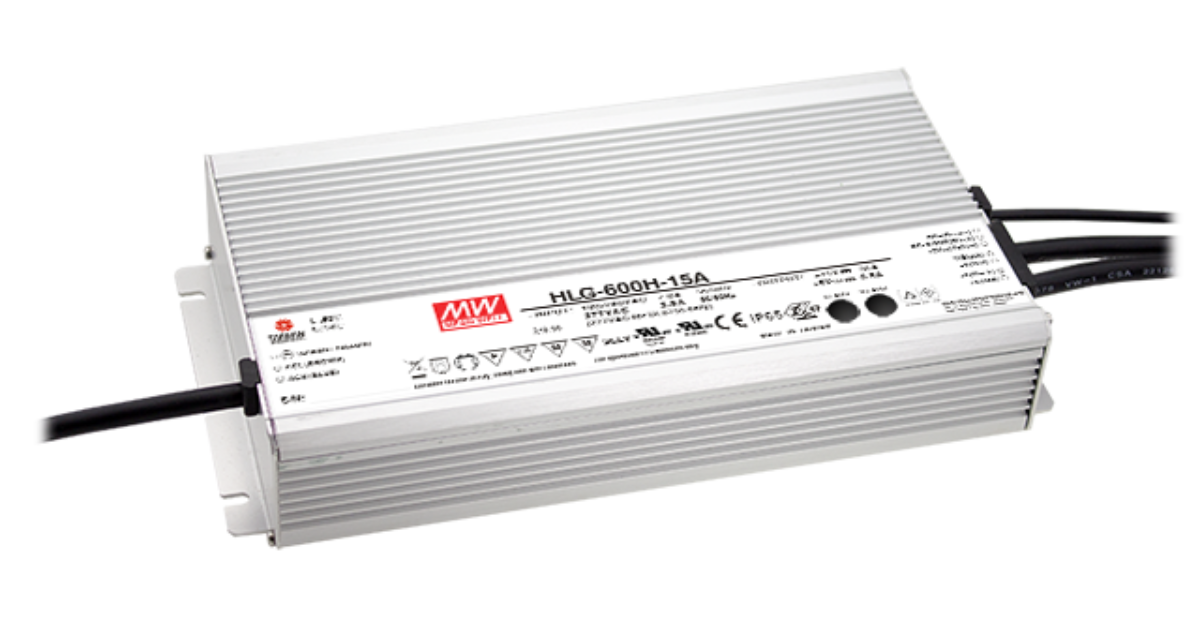

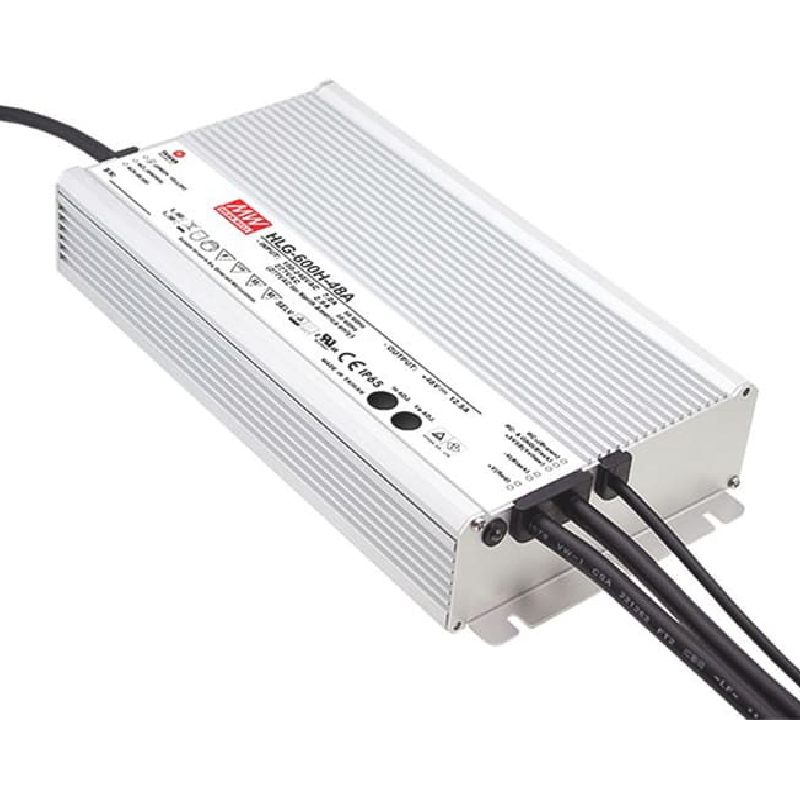

HLG-600H Series	600W	HLG-600H-12, HLG-600H-15, HLG-600H-20, HLG-600H-24, HLG-600H-30, HLG-600H-36, HLG-600H-42, HLG-600H-48, HLG-600H-54
