16A AC Inrush Current Limiter
Linear Shape and Series:
ICL-16R
ICL-16L
Model:
ICL-16R
ICL-16L
16A AC Inrush Current Limiter
Linear Shape and Series:
ICL-16R
ICL-16L
Wattage :NA
Features　:
20A redundant module
20A/40A DIN Rail Buffer Module
20A/40A DC UPS module
AC Inrush Current Limiter

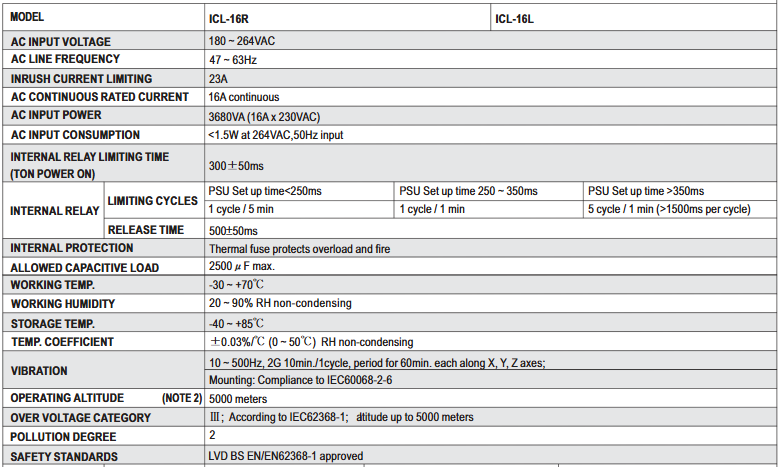

Inrush Current Limiter Specification Table - ICL-16 SeriesSpecification

                    MODEL
                    ICL-16R
                    ICL-16L

                    AC INPUT VOLTAGE
                    180 ~ 264VAC

                    AC LINE FREQUENCY
                    47 ~ 63Hz

                    INRUSH CURRENT LIMITING
                    23A

                    AC CONTINUOUS RATED CURRENT
                    16A continuous

                    AC INPUT POWER
                    3680VA (16A x 230VAC)

                    AC INPUT CONSUMPTION
                    <1.5W at 264VAC, 50Hz input

                    INTERNAL RELAY LIMITING TIME (TON POWER ON)
                    300 ± 50ms

                    INTERNAL RELAY
                    LIMITING CYCLES

                                    PSU Set up time < 250ms
                                    PSU Set up time 250 ~ 350ms
                                    PSU Set up time > 350ms

                                    1 cycle / 5 min
                                    1 cycle / 1 min
                                    5 cycle / 1 min (>1500ms per cycle)

                    RELEASE TIME
                    500 ± 50ms

                    INTERNAL PROTECTION
                    Thermal fuse protects overload and fire

                    ALLOWED CAPACITIVE LOAD
                    2500 µF max.

                    WORKING TEMP.
                    -30 ~ +70°C

                    WORKING HUMIDITY
                    20 ~ 90% RH non-condensing

                    STORAGE TEMP.
                    -40 ~ +85°C

                    TEMP. COEFFICIENT
                    ±0.03%/°C (0 ~ 50°C) RH non-condensing

                    VIBRATION
                    10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes;
Mounting: Compliance to IEC60068-2-6

                    OPERATING ALTITUDE (NOTE 2)
                    5000 meters

                    OVER VOLTAGE CATEGORY
                    Ⅲ ; According to IEC62368-1; altitude up to 5000 meters

                    POLLUTION DEGREE
                    2

                    SAFETY &
EMC
(Note 3)
                    SAFETY STANDARDS
                    LVD BS EN/EN62368-1 approved

                    EMC EMISSION

                                    Parameter
                                    Standard
                                    Test Level / Note

                                    Conducted
                                    BS EN/EN55032
                                    Class B

                                    Radiated
                                    BS EN/EN55032
                                    Class B

                                    Harmonic Current
                                    BS EN/EN61000-3-2
                                    Class A

                                    Voltage Flicker
                                    BS EN/EN61000-3-3
                                    ------

                    EMC IMMUNITY

                                    BS EN/EN55035, BS EN/EN61000-6-2

                                    Parameter
                                    Standard
                                    Test Level / Note

                                    ESD
                                    BS EN/EN61000-4-2
                                    Level 3, 8KV air; Level 2, 4KV contact, criteria A

                                    Radiated Susceptibility
                                    BS EN/EN61000-4-3
                                    Level 3, criteria A

                                    EFT / Burst
                                    BS EN/EN61000-4-4
                                    Level 3, criteria A

                                    Surge
                                    BS EN/EN61000-4-5
                                    Level 4, 2KV/L-N, criteria A

                                    Conducted
                                    BS EN/EN61000-4-6
                                    Level 3, criteria A

                                    Magnetic Field
                                    BS EN/EN61000-4-8
                                    Level 4, criteria A

                                    Voltage Dips and interruptions
                                    BS EN/EN61000-4-11
                                    >95% dip 0.5 periods, 30% dip 25 periods;
>95% interruptions 250 periods

                    OTHERS
                    MTBF
                    7229.0K hrs min. Telcordia SR-332 (Bellcore) ;
2157.3K hrs min. MIL-HDBK-217F (25°C)
                    7217.9K hrs min. Telcordia SR-332 (Bellcore) ;
2113.8K hrs min. MIL-HDBK-217F (25°C)

                    DIMENSION
                    35*90*54.5mm (L*W*H)
                    175*42*24mm (L*W*H)

                    PACKING
                    0.116Kg; 96pcs/12.2Kg/1.04CUFT
                    0.132Kg; 98pcs/14Kg/1.04CUFT
