MDR-10

$0.00

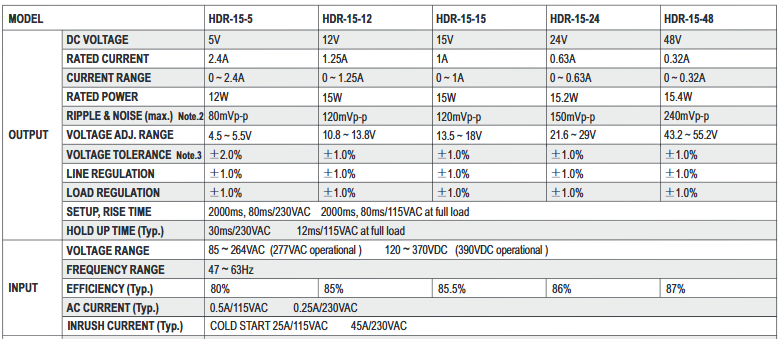

15W Ultra Slim Step Shape DIN Rail
HDR-15 Series:
MDR-10-5
MDR-10-12
MDR-10-15
MDR-10-24
Model:
MDR-10-5
MDR-10-12
MDR-10-15
MDR-10-24
15W Ultra Slim Step Shape DIN Rail
HDR-15 Series:
MDR-10-5
MDR-10-12
MDR-10-15
MDR-10-24
Wattage: 10W~96W
Features:
Plastic case, ultra slim
1∅, full range input
No load power consumption<0.75W~1W
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in active PFC function
DC OK signal output (MDR-10/20)
DC OK relay contact (MDR-40/60/100)
Class I, Div 2 Hazardous Locations T4 (MDR-40/60)
Specification Table Slider - MDR-10 Series


                    MODEL
                    MDR-10-5
                    MDR-10-12
                    MDR-10-15
                    MDR-10-24



                    OUTPUT
                    DC VOLTAGE
                    5V
                    12V
                    15V
                    24V


                    RATED CURRENT
                    2A
                    0.84A
                    0.67A
                    0.42A


                    CURRENT RANGE
                    0 ~ 2A
                    0 ~ 0.84A
                    0 ~ 0.67A
                    0 ~ 0.42A


                    RATED POWER
                    10W
                    10W
                    10W
                    10W


                    RIPPLE & NOISE (max.) Note.2
                    80mVp-p
                    120mVp-p
                    120mVp-p
                    150mVp-p


                    VOLTAGE TOLERANCE Note.3
                    ±5.0%
                    ±3.0%
                    ±3.0%
                    ±2.0%


                    LINE REGULATION
                    ±1.0%
                    ±1.0%
                    ±1.0%
                    ±1.0%


                    LOAD REGULATION
                    ±5.0%
                    ±3.0%
                    ±3.0%
                    ±2.0%


                    SETUP, RISE TIME Note.5
                    500ms, 30ms/230VAC      1000ms, 30ms/115VAC at full load


                    HOLD UP TIME (Typ.)
                    120ms/230VAC      25ms/115VAC at full load


                    INPUT
                    VOLTAGE RANGE
                    85 ~ 264VAC      120 ~ 370VDC


                    FREQUENCY RANGE
                    47 ~ 63Hz


                    EFFICIENCY (Typ.)
                    77%
                    81%
                    81%
                    84%


                    AC CURRENT (Typ.)
                    0.33A/115VAC      0.21A/230VAC


                    INRUSH CURRENT (Typ.)
                    COLD START 35A/115VAC      70A/230VAC


                    LEAKAGE CURRENT
                    <1mA / 240VAC


                    PROTECTION
                    OVERLOAD
                    Above 105% rated output power


                    Protection type : Hiccup mode, recovers automatically after fault condition is removed


                    OVER VOLTAGE
                    5.75 ~ 6.75V
                    13.8 ~ 16.2V
                    17.25 ~ 20.25V
                    27.6 ~ 32.4V


                    Protection type : Shut down o/p voltage, re-power on to recover


                    FUNCTION
                    DC OK ACTIVE SIGNAL (max.)
                    3.75 ~ 6V / 50mA
                    9 ~ 13.5V / 40mA
                    11.5 ~ 16.5V / 40mA
                    18 ~ 27V / 20mA


                    ENVIRONMENT
                    WORKING TEMP.
                    -20 ~ +70℃ (Refer to "Derating Curve")


                    WORKING HUMIDITY
                    20 ~ 90% RH non-condensing


                    STORAGE TEMP., HUMIDITY
                    -40 ~ +85℃ , 10 ~ 95% RH


                    TEMP. COEFFICIENT
                    ±0.03%/℃ (0 ~ 50℃)


                    VIBRATION
                    Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6


                    SAFETY &
EMC
(Note 4)
                    SAFETY STANDARDS
                    UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1, IS13252(Part1)/IEC60950-1 approved


                    WITHSTAND VOLTAGE
                    I/P-O/P:3KVAC      I/P-FG:2KVAC      O/P-FG:0.5KVAC


                    ISOLATION RESISTANCE
                    I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH


                    EMC EMISSION
                    Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B


                    EMC IMMUNITY
                    Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035, BS EN/EN61000-6-1, BS EN/EN61204-3, light industry level, EAC TP TC 020


                    OTHERS
                    MTBF
                    3334.7K hrs min.      Telcordia SR-332 (Bellcore) ; 584.0K hrs min.      MIL-HDBK-217F (25℃)


                    DIMENSION
                    22.5*90*100mm (W*H*D)


                    PACKING
                    0.15Kg; 72pcs/11.8Kg/1.04CUFT
