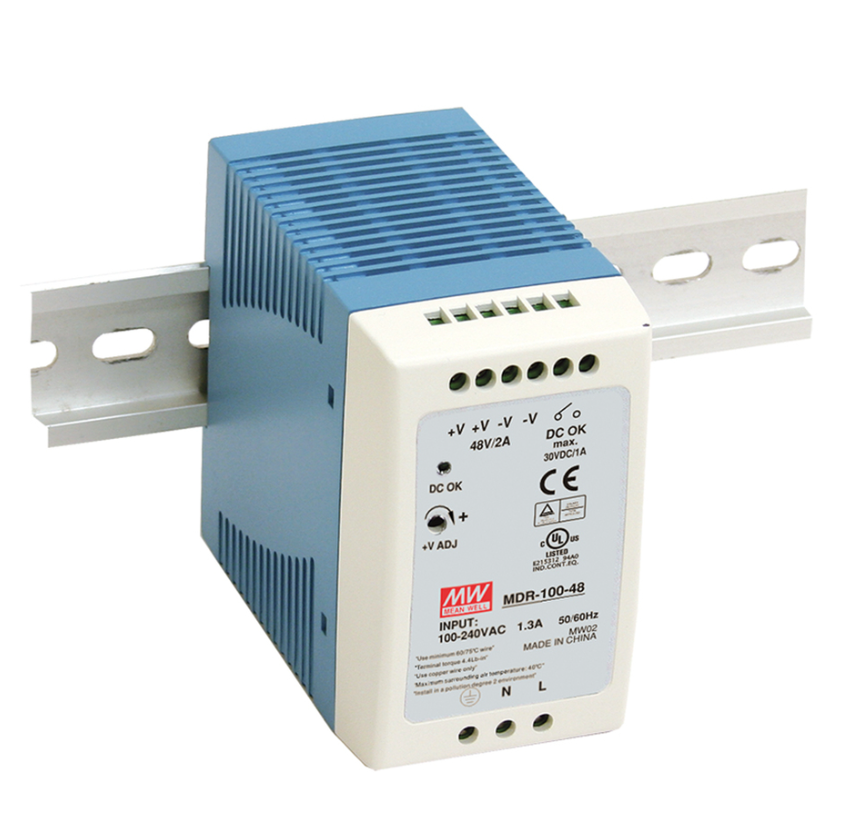

96W Single Output Industrial DIN Rail Power Supply
MDR-100 Series:
MDR-100-12
MDR-100-24
MDR-100-48
Model:
MDR-100-12
MDR-100-24
MDR-100-48
96W Single Output Industrial DIN Rail Power Supply
MDR-100 Series:
MDR-100-12
MDR-100-24
MDR-100-48
Wattage :10W~96W
Features:
Plastic case, ultra slim
1∅, full range input
No load power consumption<0.75W~1W
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in active PFC function
DC OK signal output (MDR-10/20)
DC OK relay contact (MDR-40/60/100)
Class I, Div 2 Hazardous Locations T4 (MDR-40/60)

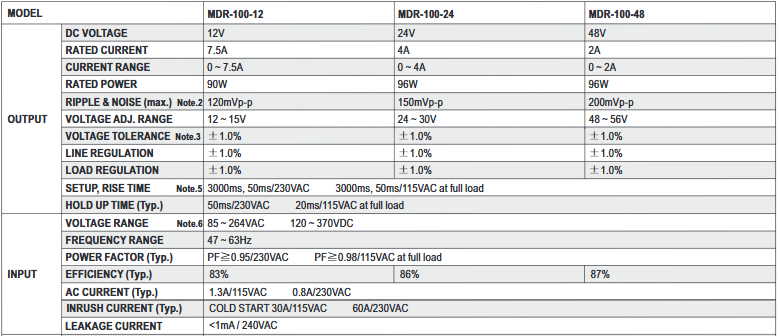

Specification Table Slider - MDR-100 Series

                    MODEL
                    MDR-100-12
                    MDR-100-24
                    MDR-100-48

                    OUTPUT
                    DC VOLTAGE
                    12V
                    24V
                    48V

                    RATED CURRENT
                    7.5A
                    4A
                    2A

                    CURRENT RANGE
                    0 ~ 7.5A
                    0 ~ 4A
                    0 ~ 2A

                    RATED POWER
                    90W
                    96W
                    96W

                    RIPPLE & NOISE (max.) Note.2
                    120mVp-p
                    150mVp-p
                    200mVp-p

                    VOLTAGE ADJ. RANGE
                    12 ~ 15V
                    24 ~ 30V
                    48 ~ 56V

                    VOLTAGE TOLERANCE Note.3
                    ±1.0%
                    ±1.0%
                    ±1.0%

                    LINE REGULATION
                    ±1.0%
                    ±1.0%
                    ±1.0%

                    LOAD REGULATION
                    ±1.0%
                    ±1.0%
                    ±1.0%

                    SETUP, RISE TIME Note.5
                    3000ms, 50ms/230VAC      3000ms, 50ms/115VAC at full load

                    HOLD UP TIME (Typ.)
                    50ms/230VAC      20ms/115VAC at full load

                    INPUT
                    VOLTAGE RANGE Note.6
                    85 ~ 264VAC      120 ~ 370VDC

                    FREQUENCY RANGE
                    47 ~ 63Hz

                    POWER FACTOR (Typ.)
                    PF≥0.95/230VAC      PF≥0.98/115VAC at full load

                    EFFICIENCY (Typ.)
                    83%
                    86%
                    87%

                    AC CURRENT (Typ.)
                    1.3A/115VAC      0.8A/230VAC

                    INRUSH CURRENT (Typ.)
                    COLD START 30A/115VAC      60A/230VAC

                    LEAKAGE CURRENT
                    <1mA / 240VAC

                    PROTECTION
                    OVERLOAD
                    105 ~ 150% rated output power

                    Protection type : Constant current limiting, recovers automatically after fault condition is removed

                    OVER VOLTAGE
                    15.6 ~ 18V
                    31.2 ~ 36V
                    57.6 ~ 64.8V

                    Protection type : Shut down o/p voltage, re-power on to recover

                    OVER TEMPERATURE
                    Shut down o/p voltage, auto-recovery or re-power on to recover

                    FUNCTION
                    DC OK SIGNAL
                    Relay contact rating(max.): 30V/1A resistive

                    ENVIRONMENT
                    WORKING TEMP.
                    -10 ~ +60℃ (Refer to "Derating Curve")

                    WORKING HUMIDITY
                    20 ~ 90% RH non-condensing

                    STORAGE TEMP., HUMIDITY
                    -40 ~ +85℃ , 10 ~ 95% RH

                    TEMP. COEFFICIENT
                    ±0.03%/℃ (0 ~ 50℃)

                    VIBRATION
                    Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6

                    SAFETY &
EMC
(Note 4)
                    SAFETY STANDARDS
                    UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, AS/NZS 60950.1, BIS IS13252(Part1):2010/IEC 609501:2005
(except for 48) approved

                    WITHSTAND VOLTAGE
                    I/P-O/P:3KVAC      I/P-FG:2KVAC      O/P-FG:0.5KVAC

                    ISOLATION RESISTANCE
                    I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃ / 70% RH

                    EMC EMISSION
                    Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B

                    EMC IMMUNITY
                    Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level,
EAC TP TC 020

                    OTHERS
                    MTBF
                    2217.8K hrs min.      Telcordia SR-332 (Bellcore) ; 346.5K hrs min.      MIL-HDBK-217F (25℃)

                    DIMENSION
                    55*90*100mm (W*H*D)

                    PACKING
                    0.42Kg; 30pcs/13.6Kg/0.82CUFT
