40W Single Output Industrial DIN Rail Power Supply
MDR-40 series:
MDR-40-5,
MDR-40-12,
MDR-40-24,
MDR-40-48
40W Single Output Industrial DIN Rail Power Supply
MDR-40 series:
MDR-40-5,
MDR-40-12,
MDR-40-24,
MDR-40-48
Wattage :10W~96W
Features:
Plastic case, ultra slim
1∅, full range input
No load power consumption<0.75W~1W
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in active PFC function
DC OK signal output (MDR-10/20)
DC OK relay contact (MDR-40/60/100)
Class I, Div 2 Hazardous Locations T4 (MDR-40/60)

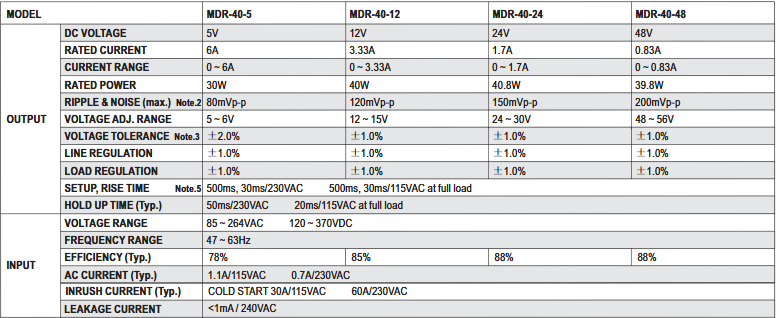

| MODEL | MDR-40-5 | MDR-40-12 | MDR-40-24 | MDR-40-48 | |
|---|---|---|---|---|---|
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V | 48V |
| RATED CURRENT | 6A | 3.33A | 1.7A | 0.83A | |
| CURRENT RANGE | 0 ~ 6A | 0 ~ 3.33A | 0 ~ 1.7A | 0 ~ 0.83A | |
| RATED POWER | 30W | 40W | 40.8W | 39.8W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 5 ~ 6V | 12 ~ 15V | 24 ~ 30V | 48 ~ 56V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME Note.5 | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 20ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 78% | 85% | 88% | 88% | |
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 30A/115VAC 60A/230VAC | ||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 6.25 ~ 7.25V | 15.6 ~ 18V | 31.2 ~ 36V | 57.6 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| FUNCTION | DC OK SIGNAL | Relay contact rating(max.): 30V/1A resistive | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃ , 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6 | ||||
| SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1, IS13252(Part1)/IEC60950-1(except 48V)approved |
|||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃ / 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, EAC TP TC 020 |
||||
| OTHERS | MTBF | 2418.5K hrs min. Telcordia SR-332 (Bellcore) ; 301.7K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 40*90*100mm (W*H*D) | ||||
| PACKING | 0.3Kg; 42pcs/13.6Kg/0.82CUFT | ||||
