480W Single Output Industrial DIN RAIL
NDR-480 Series:
NDR-480-24
NDR-480-48
480W Single Output Industrial DIN RAIL
NDR-480 Series:
NDR-480-24
NDR-480-48
Wattage : 75W~480W
Features:
Metal case, economical models
1∅, 90~264Vac, full range input
Slim size, model width: 32 ~ 85.5mm
EMC EN55022 class B
Assemble on industrial rail TS-35 / 7.5 or 15
3 years warranty

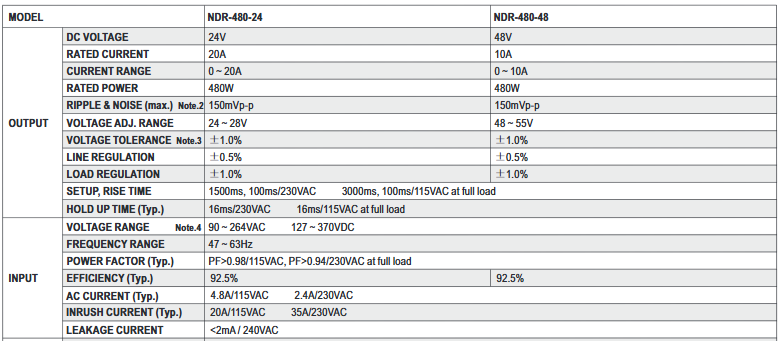

| MODEL | NDR-480-24 | NDR-480-48 | |
|---|---|---|---|
| OUTPUT | DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 20A | 10A | |
| CURRENT RANGE | 0 ~ 20A | 0 ~ 10A | |
| RATED POWER | 480W | 480W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24 ~ 28V | 48 ~ 55V | |
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 1500ms, 100ms/230VAC 3000ms, 100ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.94/230VAC at full load | ||
| EFFICIENCY (Typ.) | 92.5% | 92.5% | |
| AC CURRENT (Typ.) | 4.8A/115VAC 2.4A/230VAC | ||
| INRUSH CURRENT (Typ.) | 20A/115VAC 35A/230VAC | ||
| LEAKAGE CURRENT | <2mA / 240VAC | ||
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power | |
| Protection type : Constant current limiting, unit will shut down after 3 sec., re-power on to recover | |||
| OVER VOLTAGE | 29 ~ 33V | 56 ~ 65V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃ , 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
| SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UI508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, IS13252(Part1)/IEC60950-1(except for 48V) approved; (meet BS EN/EN60204-1) |
|
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃ / 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020 |
||
| OTHERS | MTBF | 1041.6K hrs min. Telcordia SR-332 (Bellcore) ; 146.8K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 85.5*125.2*128.5mm (W*H*D) | ||
| PACKING | 1.5Kg; 8pcs/13Kg/0.9CUFT | ||
