PFAL

$0.00

Single-output power supplies in the PFAL range allow the handling of output currents up to 20A, with the possibility of output voltage compensation. The entire range, intended for connection to the secondary of a transformer, allows both serial and parallel connections. Assembled in metal enclosures, they feature DIN rail mounting, short-circuit and overload protection, and adjustable output.

Key Features

Typical input voltage: 24Vac, 24Vdc, 48Vdc
Output current: 0.8 ÷ 20A
Extremely compact size
Output voltage: 5 - 12 - 24Vdc
Adjustable output ±10% ±90%
Temperature range 0 - 50°C

Products

AC-DC/DC Converters 24Vdc

- Linear Power supply Vout 1.25 – 24 Vdc
- Input : single phase 28 Vac-45 Vdc
- Output: 2 A
- Positive or Negative Output
- Short-circuit protection
- IP20
- DIN Rail Mountable
- Alimentatore lineare Vout Regolabile 1.25 – 24 Vdc
- Ingresso: monofase max 28 Vac – 45 Vdc
- Uscita: 2 A
- Disponibile con tensione in uscita positiva o
- negativa
- Protezione al cortocircuito
- Grado di protezione IP20

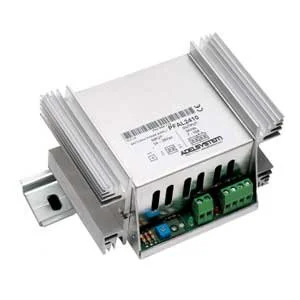

AC-DC/DC Converters 24Vdc

- Input : single phase 28 Vac-45 Vdc
- Output: 10A – 24 Vdc
- Continuous Load to 70 % In
- Vout Adjustable 10%
- Short-circuit protection
- Over Load protection
- IP20
- DIN Rail Mountable
- Ingresso: monofase 28 Vac; 45 Vdc
- Uscita: singola 10A – 24 Vdc
- Servizio Continuo al 70% di In
- Uscita regolabile 10%
- Protezione al cortocircuito
- Grado di protezione IP20
- Fissaggio a barra DIN
