150W Ultra Slim Step Shape DIN Rail
HDR-150 series:
HDR-150-12,
HDR-150-15,
HDR-150-24,
HDR-150-48
150W Ultra Slim Step Shape DIN Rail
HDR-150 series:
HDR-150-12,
HDR-150-15,
HDR-150-24,
HDR-150-48
Wattage :15W~150W
Features:
Plastic case, step shape
1∅, full range input
Compact size, 1SU~6SU width (DIN EN43880)
Isolation class II
DC output voltage adjustable
No load power consumption <0.3W
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for building automation and control of household appliance

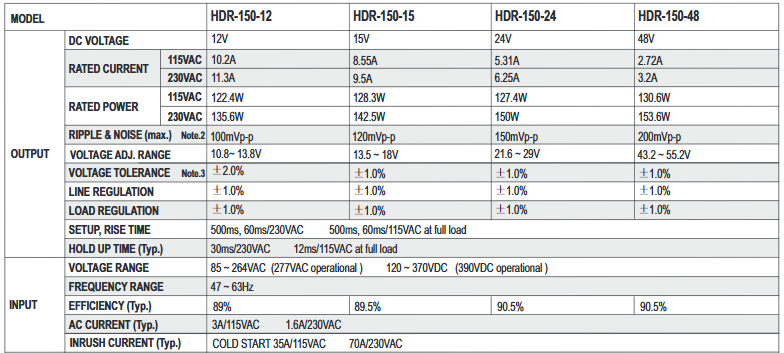

| MODEL | HDR-150-12 | HDR-150-15 | HDR-150-24 | HDR-150-48 | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 48V | ||||||||||||||||||
| RATED CURRENT | 115VAC | 10.2A | 8.55A | 5.31A | 2.72A | ||||||||||||||||||
| 230VAC | 11.3A | 9.5A | 6.25A | 3.2A | |||||||||||||||||||
| RATED POWER | 115VAC | 122.4W | 128.3W | 127.4W | 130.6W | ||||||||||||||||||
| 230VAC | 135.6W | 142.5W | 150W | 153.6W | |||||||||||||||||||
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |||||||||||||||||||
| VOLTAGE ADJ. RANGE | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | |||||||||||||||||||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |||||||||||||||||||
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||||||||||||||||||
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||||||||||||||||||
| SETUP, RISE TIME | 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load | ||||||||||||||||||||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 12ms/115VAC at full load | ||||||||||||||||||||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC operational) 120 ~ 370VDC (390VDC operational) | |||||||||||||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||||||||||||||
| EFFICIENCY (Typ.) | 89% | 89.5% | 90.5% | 90.5% | |||||||||||||||||||
| AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | ||||||||||||||||||||||
| INRUSH CURRENT (Typ.) | COLD START 35A/115VAC 70A/230VAC | ||||||||||||||||||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||||||||||||||||||||
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed | |||||||||||||||||||||||
| Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | |||||||||||||||||||||||
| OVER VOLTAGE | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | |||||||||||||||||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||||||||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||||||||||||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||||||||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃ , 10 ~ 95% RH non-condensing | ||||||||||||||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) RH non-condensing | ||||||||||||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||||||||||||||||||||||
| OPERATING ALTITUDE | 2000 meters (Note 4) | ||||||||||||||||||||||
| OVER VOLTAGE CATEGORY | Ⅲ ; According to EN62368, EN61558, EN50178, EN60664-1, EN62477-1 ; altitude up to 2000 meters | ||||||||||||||||||||||
| SAFETY & EMC (Note.7) |
SAFETY STANDARDS | IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 48) approved; Design refer to BS EN/EN50178, TUV BS EN/EN62368-1 |
|||||||||||||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||||||||||||||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃ / 70% RH | ||||||||||||||||||||||
| EMC EMISSION |
|
||||||||||||||||||||||
| EMC IMMUNITY |
|
||||||||||||||||||||||
