75W Single Output Industrial DIN RAIL with Power Supply
SDR-75 series:
SDR-75-12
SDR-75-24
SDR-75-48
Model:
SDR-75-12
SDR-75-24
SDR-75-48
75W Single Output Industrial DIN RAIL with Power Supply
SDR-75 series:
SDR-75-12
SDR-75-24
SDR-75-48
Wattage:75W~960W
Features:
Metal case, slim size
1∅, full range input (230VAC only for SDR-960)
94% high efficiency and complete functions
Built-in active PFC function (except SDR-75)
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact (except SDR-75)
130%~150% peak load capability by models
Current sharing function (SDR-480P/960)

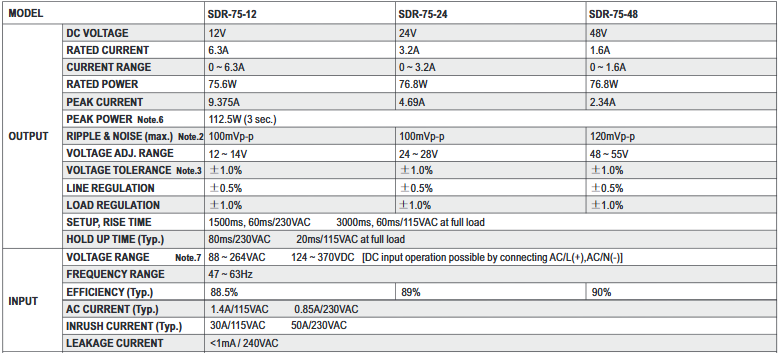

Specification Table Slider - SDR-75 Series

                    MODEL
                    SDR-75-12
                    SDR-75-24
                    SDR-75-48

                    OUTPUT
                    DC VOLTAGE
                    12V
                    24V
                    48V

                    RATED CURRENT
                    6.3A
                    3.2A
                    1.6A

                    CURRENT RANGE
                    0 ~ 6.3A
                    0 ~ 3.2A
                    0 ~ 1.6A

                    RATED POWER
                    75.6W
                    76.8W
                    76.8W

                    PEAK CURRENT
                    9.375A
                    4.69A
                    2.34A

                    PEAK POWER Note.6
                    112.5W (3 sec.)

                    RIPPLE & NOISE (max.) Note.2
                    100mVp-p
                    100mVp-p
                    120mVp-p

                    VOLTAGE ADJ. RANGE
                    12 ~ 14V
                    24 ~ 28V
                    48 ~ 55V

                    VOLTAGE TOLERANCE Note.3
                    ±1.0%
                    ±1.0%
                    ±1.0%

                    LINE REGULATION
                    ±0.5%
                    ±0.5%
                    ±0.5%

                    LOAD REGULATION
                    ±1.0%
                    ±1.0%
                    ±1.0%

                    SETUP, RISE TIME
                    1500ms, 60ms/230VAC      3000ms, 60ms/115VAC at full load

                    HOLD UP TIME (Typ.)
                    80ms/230VAC      20ms/115VAC at full load

                    INPUT
                    VOLTAGE RANGE Note.7
                    88 ~ 264VAC      124 ~ 370VDC      [DC input operation possible by connecting AC/L(+),AC/N(-)]

                    FREQUENCY RANGE
                    47 ~ 63Hz

                    EFFICIENCY (Typ.)
                    88.5%
                    89%
                    90%

                    AC CURRENT (Typ.)
                    1.4A/115VAC      0.85A/230VAC

                    INRUSH CURRENT (Typ.)
                    30A/115VAC      50A/230VAC

                    LEAKAGE CURRENT
                    <1mA / 240VAC

                    PROTECTION
                    OVERLOAD
                    Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage, re-power on to recover

                    150 ~ 170% rated power, constant current limiting with auto-recovery within 3 seconds, and then shut down o/p voltage after 3 seconds, re-power on to recover

                    OVER VOLTAGE
                    14 ~ 17V
                    29 ~ 33V
                    56 ~ 65V

                    Protection type : Shut down o/p voltage, re-power on to recover

                    OVER TEMPERATURE
                    100℃ ± 10℃ (RTH2) detect on main of power transistor
Protection type : Shut down o/p voltage, re-power on to recover after temperature goes down

                    ENVIRONMENT
                    WORKING TEMP.
                    -30 ~ +70℃ (Refer to "Derating Curve")

                    WORKING HUMIDITY
                    20 ~ 95% RH non-condensing

                    STORAGE TEMP., HUMIDITY
                    -40 ~ +85℃ , 10 ~ 95% RH

                    TEMP. COEFFICIENT
                    ±0.03%/℃ (0 ~ 50℃)

                    VIBRATION
                    Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

                    SAFETY &
EMC
(Note 4)
                    SAFETY STANDARDS
                    UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved, design refer to GL ;(meet BS EN/EN60204-1)

                    WITHSTAND VOLTAGE
                    I/P-O/P:3KVAC      I/P-FG:2KVAC      O/P-FG:0.5KVAC

                    ISOLATION RESISTANCE
                    I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃ / 70% RH

                    EMC EMISSION
                    Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020

                    EMC IMMUNITY
                    Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2),
BS EN/EN61204-3, heavy industry level, EAC TP TC 020, SEMI F47 approved

                    OTHERS
                    MTBF
                    2670.8K hrs min.      Telcordia SR-332 (Bellcore) ; 479.8K hrs min.      MIL-HDBK-217F (25℃)

                    DIMENSION
                    32*125.2*102mm (W*H*D)

                    PACKING
                    0.51Kg; 28pcs/15.3Kg/1.23CUFT
