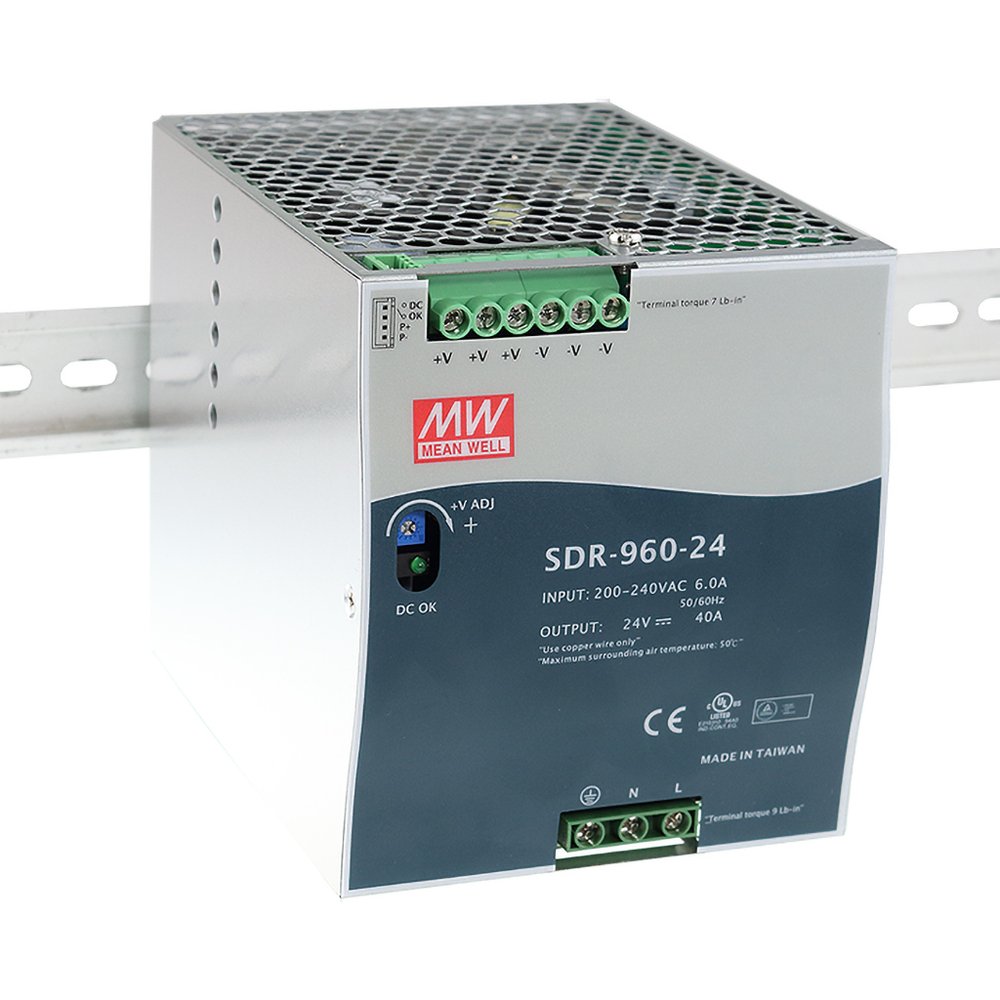

960W Single Output Industrial DIN RAIL with PFC Function
SDR-960 series:
SDR-960-24
SDR-960-48
960W Single Output Industrial DIN RAIL with PFC Function
SDR-960 series:
SDR-960-24
SDR-960-48
Wattage :75W~960W
Features :
Metal case, slim size
1∅, full range input (230VAC only for SDR-960)
94% high efficiency and complete functions
Built-in active PFC function (except SDR-75)
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact (except SDR-75)
130%~150% peak load capability by models
Current sharing function (SDR-480P/960)

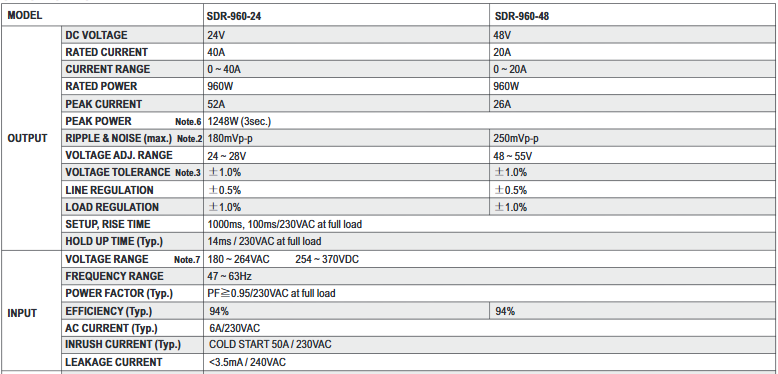

| MODEL | SDR-960-24 | SDR-960-48 | |
|---|---|---|---|
| OUTPUT | DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 40A | 20A | |
| CURRENT RANGE | 0 ~ 40A | 0 ~ 20A | |
| RATED POWER | 960W | 960W | |
| PEAK CURRENT | 52A | 26A | |
| PEAK POWER Note.6 | 1248W (3sec.) | ||
| RIPPLE & NOISE (max.) Note.2 | 180mVp-p | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 24 ~ 28V | 48 ~ 55V | |
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 100ms/230VAC at full load | ||
| HOLD UP TIME (Typ.) | 14ms / 230VAC at full load | ||
| INPUT | VOLTAGE RANGE Note.7 | 180 ~ 264VAC 254 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF ≥ 0.95/230VAC at full load | ||
| EFFICIENCY (Typ.) | 94% | 94% | |
| AC CURRENT (Typ.) | 6A/230VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A / 230VAC | ||
| LEAKAGE CURRENT | <3.5mA / 240VAC | ||
| PROTECTION | OVERLOAD | Normally works within 105 ~ 130% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery after 30 seconds if the peak load condition is removed | |
| Constant current limiting within 130 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage, re-power on to recover | |||
| OVER VOLTAGE | 29 ~ 33V | 56 ~ 65V | |
| Protection type : Shut down o/p voltage, with auto-recovery or re-power on to recover | |||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| FUNCTION | DC OK REALY CONTACT RATINGS (max.) | 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load | |
| CURRENT SHARING | Please refer to function manual | ||
| ENVIRONMENT | WORKING TEMP. Note.5 | -30 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃ , 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
| SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved ; (meet BS EN/EN60204-1) | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃ / 70% RH | ||
| EMC EMISSION Note.8 | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Conduction class B, Radiation class A, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936, KC KSC 9832 |
||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020, KC KSC 9835 |
||
| OTHERS | MTBF | 660.2K hrs min. Telcordia SR-332 (Bellcore) ; 70.7K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 110*125.2*150mm (W*H*D) | ||
| PACKING | 2.47Kg; 6pcs/15.8Kg/1.55CUFT | ||
