TDR-240

$0.00

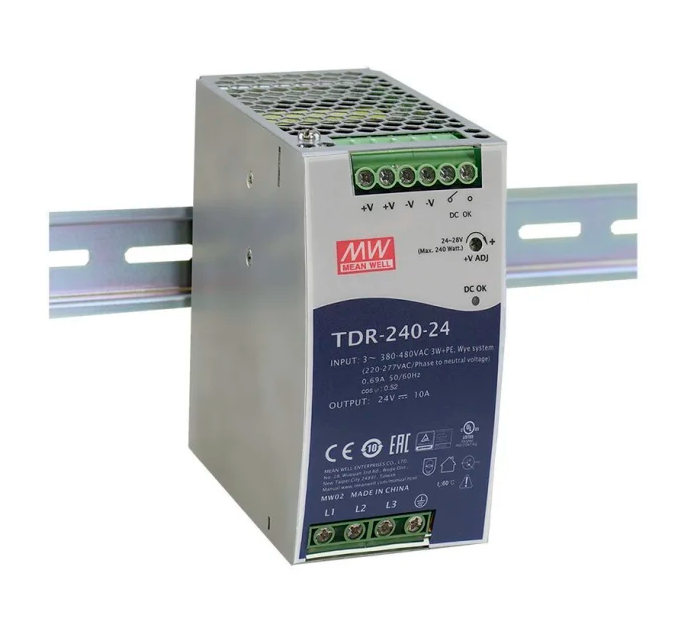

240W Slim Three Phase Industrial DIN Rail with PFC Function

TDR-240 series:

  • TDR-240-24

  • TDR-240-48

Model:

240W Slim Three Phase Industrial DIN Rail with PFC Function

TDR-240 series:

  • TDR-240-24

  • TDR-240-48

Wattage :240W~960W

Features:

  • Metal case, slim size

  • 3∅, 340~550VAC input

  • High efficiency up to 94.5%

  • Built-in active PFC function

  • Assemble on industrial rail TS-35 / 7.5 or 15

  • Built-in DC OK relay contact

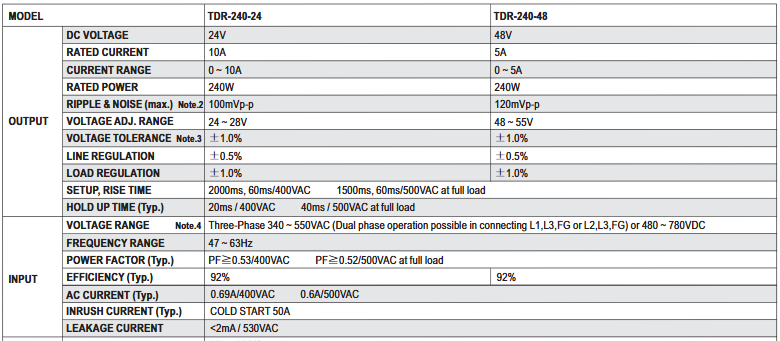

Power Supply Specification Table

Specification

MODEL TDR-240-24 TDR-240-48
OUTPUT DC VOLTAGE 24V 48V
RATED CURRENT 10A 5A
CURRENT RANGE 0 ~ 10A 0 ~ 5A
RATED POWER 240W 240W
RIPPLE & NOISE (max.) Note.2 100mVp-p 120mVp-p
VOLTAGE ADJ. RANGE 24 ~ 28V 48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0%
SETUP, RISE TIME 2000ms, 60ms/400VAC      1500ms, 60ms/500VAC at full load
HOLD UP TIME (Typ.) 20ms / 400VAC      40ms / 500VAC at full load
INPUT VOLTAGE RANGE Note.4 Three-Phase 340 ~ 550VAC (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG) or 480 ~ 780VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF≥0.53/400VAC      PF≥0.52/500VAC at full load
EFFICIENCY (Typ.) 92% 92%
AC CURRENT (Typ.) 0.69A/400VAC      0.6A/500VAC
INRUSH CURRENT (Typ.) COLD START 50A
LEAKAGE CURRENT <2mA / 530VAC
PROTECTION OVERLOAD 105 ~ 130% rated output power
Protection type : Constant current limiting, unit will hiccup after 3 sec.
OVER VOLTAGE 30 ~ 36V 56 ~ 65V
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION DC OK REALY CONTACT RATINGS (max.) 60VDC/0.3A, 30VDC/1A, 30VAC/0.5A resistive load
ENVIRONMENT WORKING TEMP. Note.5 -30 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85°C, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.05%/°C (0 ~ 60°C)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE Note.6 5000 meters
OVER VOLTAGE CATEGORY III ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters
SAFETY &
EMC
(Note 7)		 SAFETY STANDARDS UL61010-1, UL61010-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, BIS IS13252(Part1)(only for 24V), EAC TP TC 004 approved, design refer to AS/NZS61558-1/-2-16
WITHSTAND VOLTAGE I/P-O/P:4.87KVAC    I/P-FG:2.4KVAC    O/P-FG:0.5KVAC    O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSION }
Parameter Standard Test Level / Note
Conducted BS EN/EN55032(CISPR32)/BS EN/EN61204-3 Class B
Radiated BS EN/EN55032(CISPR32)/BS EN/EN61204-3 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY
BS EN/EN55035 , BS EN/EN61204-3
Parameter Standard Test Level / Note
ESD BS EN/EN61000-4-2 Level 4, 15KV air ; Level 4, 8KV contact
Radiated Field BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line, 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS MTBF 1534.9K hrs min.    Telcordia SR-332(Bellcore); 215.6K hrs min.    MIL-HDBK-217F (25°C)
DIMENSION 63*125.2*113.5mm (W*H*D)
PACKING 1Kg ; 12pcs/13Kg/1.22CUFT
