120W Single Output Industrial DIN RAIL Power Supply
WDR-120 series:
WDR-120-12
WDR-120-24
WDR-120-48
120W Single Output Industrial DIN RAIL Power Supply
WDR-120 series:
WDR-120-12
WDR-120-24
WDR-120-48
Wattage : 60W~480W
Features :
Metal case, slim size
1∅ and 2∅ , 180~550VAC wide input
High efficiency up to 93%
Built-in active PFC function (240W & 480W)
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact

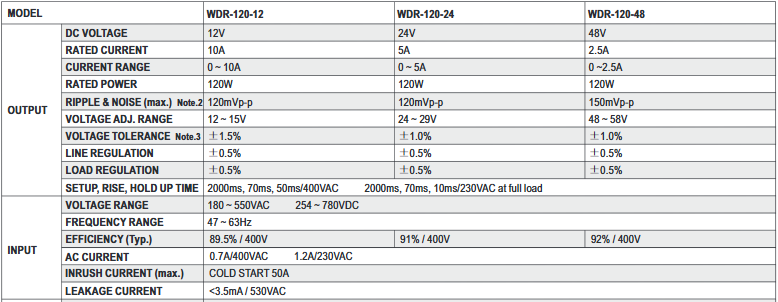

| MODEL | WDR-120-12 | WDR-120-24 | WDR-120-48 | |
|---|---|---|---|---|
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 10A | 5A | 2.5A | |
| CURRENT RANGE | 0 ~ 10A | 0 ~ 5A | 0 ~ 2.5A | |
| RATED POWER | 120W | 120W | 120W | |
| RIPPLE & NOISE (max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 12 ~ 15V | 24 ~ 29V | 48 ~ 58V | |
| VOLTAGE TOLERANCE Note.3 | ±1.5% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE, HOLD UP TIME | 2000ms, 70ms, 50ms/400VAC 2000ms, 70ms, 10ms/230VAC at full load | |||
| INPUT | VOLTAGE RANGE | 180 ~ 550VAC 254 ~ 780VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 89.5% / 400V | 91% / 400V | 92% / 400V | |
| AC CURRENT | 0.7A/400VAC 1.2A/230VAC | |||
| INRUSH CURRENT (max.) | COLD START 50A | |||
| LEAKAGE CURRENT | <3.5mA / 530VAC | |||
| PROTECTION | OVERLOAD |
105 ~ 130% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed |
||
| OVER VOLTAGE | 16 ~ 18V | 31 ~ 37V | 60 ~ 67V | |
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | DC OK SIGNAL | Relay contact rating(max.): 30V / 1A resistive | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70°C (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | |||
| SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL508, EAC TP TC 004, BIS IS13252(Part1)(only for 12V,24V) approved, IEC62368-1 CB approved by SIQ; Design refer to BS EN/EN62368-1, AS/NZS 62368.1(meet BS EN/EN60204-1) | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61204-3, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020 | |||
| OTHERS | MTBF | 1509.6K hrs min. Telcordia SR-332 (Bellcore) ; 268.1K hrs min. MIL-HDBK-217F (25°C) | ||
| DIMENSION | 40*125.2*113.5mm (W*H*D) | |||
| PACKING | 0.65Kg; 20pcs/14Kg/1.0CUFT | |||
