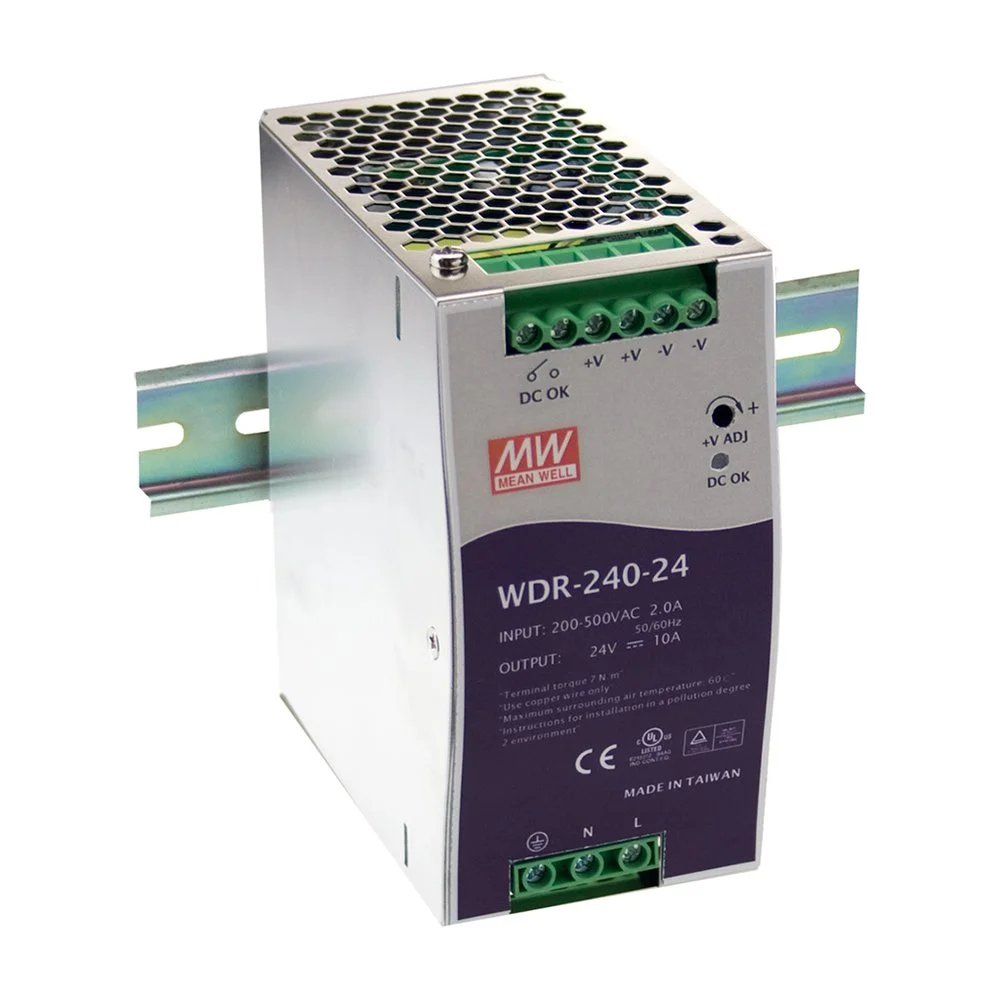

240W Single Output Industrial DIN RAIL Power Supply
WDR-240 series:
WDR-240-24
WDR-240-48
240W Single Output Industrial DIN RAIL Power Supply
WDR-240 series:
WDR-240-24
WDR-240-48
Wattage : 60W~480W
Features :
Metal case, slim size
1∅ and 2∅ , 180~550VAC wide input
High efficiency up to 93%
Built-in active PFC function (240W & 480W)
Assemble on industrial rail TS-35 / 7.5 or 15
Built-in DC OK relay contact

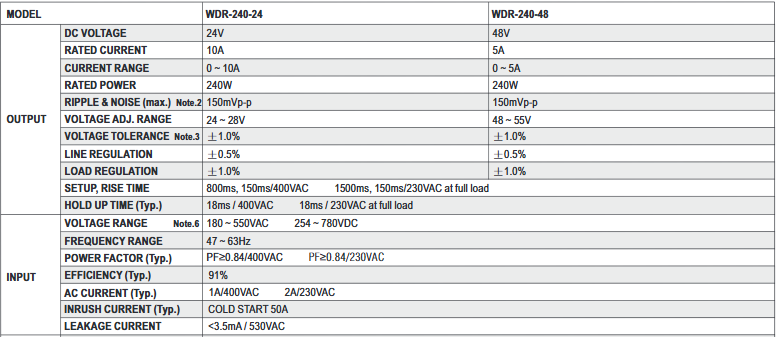

| MODEL | WDR-240-24 | WDR-240-48 | |
|---|---|---|---|
| OUTPUT | DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 10A | 5A | |
| CURRENT RANGE | 0 ~ 10A | 0 ~ 5A | |
| RATED POWER | 240W | 240W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24 ~ 28V | 48 ~ 55V | |
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 800ms, 150ms/400VAC 1500ms, 150ms/230VAC at full load | ||
| HOLD UP TIME (Typ.) | 18ms / 400VAC 18ms / 230VAC at full load | ||
| INPUT | VOLTAGE RANGE Note.6 | 180 ~ 550VAC 254 ~ 780VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF≥0.84/400VAC PF≥0.84/230VAC | ||
| EFFICIENCY (Typ.) | 91% | ||
| AC CURRENT (Typ.) | 1A/400VAC 2A/230VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 50A | ||
| LEAKAGE CURRENT | <3.5mA / 530VAC | ||
| PROTECTION | OVERLOAD |
105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. , auto-recovery after 1 minute if the fault condition is removed |
|
| OVER VOLTAGE | 29 ~ 33V | 56 ~ 65V | |
| Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed | |||
| OVER TEMPERATURE |
90°C ± 5°C (TSW) detect on heatsink of power switch Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
||
| FUNCTION | DC OK REALY CONTACT RATINGS (max.) | 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load | |
| ENVIRONMENT | WORKING TEMP. Note.5 | -30 ~ +70°C (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | ||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
| SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL508,EAC TP TC 004,BIS IS13252(Part1):2010/IEC 609501:2005(except for 48) approved,IEC62368-1 CB approved by SIQ, design refer to BS EN/EN62368-1, AS/NZS 62368.1,GL;(meet BS EN/EN60204-1) | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61204-3, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020 approved | ||
| OTHERS | MTBF | 1062.8K hrs min. Telcordia SR-332 (Bellcore) ; 141.1K hrs min. MIL-HDBK-217F (25°C) | |
| DIMENSION | 63*125.2*113.5mm (W*H*D) | ||
| PACKING | 1.06Kg; 12pcs/13.7Kg/1.22CUFT | ||
