WDR-60

$0.00

60W Ultra-Wide Input Industrial DIN Rail Power Supply

WDR-60 Series:

  • WDR-60-5

  • WDR-60-12

  • WDR-60-24

  • WDR-60-48

Model:

60W Ultra-Wide Input Industrial DIN Rail Power Supply

WDR-60 Series:

  • WDR-60-5

  • WDR-60-12

  • WDR-60-24

  • WDR-60-48

Wattage : 60W~480W

Features　:

  • Metal case, slim size

  • 1∅ and 2∅ , 180~550VAC wide input

  • High efficiency up to 93%

  • Built-in active PFC function (240W & 480W)

  • Assemble on industrial rail TS-35 / 7.5 or 15

  • Built-in DC OK relay contact

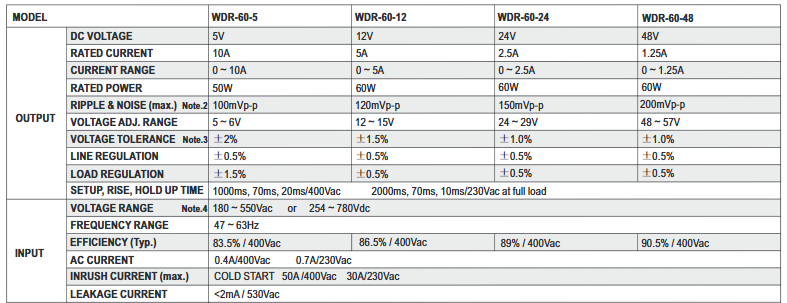

Power Supply Specification Table - WDR-60 Series

Specification

MODEL WDR-60-5 WDR-60-12 WDR-60-24 WDR-60-48
OUTPUT DC VOLTAGE 5V 12V 24V 48V
RATED CURRENT 10A 5A 2.5A 1.25A
CURRENT RANGE 0 ~ 10A 0 ~ 5A 0 ~ 2.5A 0 ~ 1.25A
RATED POWER 50W 60W 60W 60W
RIPPLE & NOISE (max.) Note.2 100mVp-p 120mVp-p 150mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 5 ~ 6V 12 ~ 15V 24 ~ 29V 48 ~ 57V
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.5% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE, HOLD UP TIME 1000ms, 70ms, 20ms/400Vac        2000ms, 70ms, 10ms/230Vac at full load
INPUT VOLTAGE RANGE Note.4 180 ~ 550Vac      or      254 ~ 780Vdc
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 83.5% / 400Vac 86.5% / 400Vac 89% / 400Vac 90.5% / 400Vac
AC CURRENT 0.4A/400Vac        0.7A/230Vac
INRUSH CURRENT (max.) COLD START    50A/400Vac    30A/230Vac
LEAKAGE CURRENT <2mA / 530Vac
PROTECTION OVERLOAD 105 ~ 135% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 6.2 ~ 7.2V 16 ~ 18V 31 ~ 37V 58 ~ 60.5V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION DC OK SIGNAL Relay contact rating(max.) : 30V / 1A resistive
ENVIRONMENT WORKING TEMP. Note.5 -30 ~ +85°C (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP. -40 ~ +85°C
TEMP. COEFFICIENT ±0.03%/°C (0 ~ 60°C)
VIBRATION Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE Note.5 2000 meters
OVER VOLTAGE CATEGORY Ⅱ ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters
SAFETY &
EMC
(Note 7)		 SAFETY STANDARDS UL61010, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004, BIS IS13252(Part1):2010/IEC 609501:2005(except for 48V) approved; design refer to GL and BS EN/EN60204-1(By request)
WITHSTAND VOLTAGE I/P-O/P:4.7KVAC    I/P-FG:2.5KVAC    O/P-FG:0.5KVAC    O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSION
Parameter Standard Test Level / Note
Conducted BS EN/EN55032(CISPR32) Class B
Radiated BS EN/EN55032(CISPR32) Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 -------
EMC IMMUNITY
BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3
Parameter Standard Test Level / Note
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V/m, criteria A
EFT / Bursts BS EN/EN61000-4-4 Level 3, 2KV/5KHz, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line, 4KV/Line-Earth, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
OTHERS MTBF 1900.1K hrs min.    Telcordia SR-332 (Bellcore) ; 313.7K hrs min.    MIL-HDBK-217F (25°C)
DIMENSION 32*125.2*102mm (W*H*D)
PACKING 0.5Kg; 28pcs/15.2Kg/1.23CUFT
