XDR-120

$0.00

120WAC/DC High-End Ultra Slim Industrial DIN Rail Power

XDR-120 series:

  • XDR-120-12

  • XDR-120-24

  • XDR-120-36

  • XDR-120-48

View Datasheet

Model:

120WAC/DC High-End Ultra Slim Industrial DIN Rail Power

XDR-120 series:

  • XDR-120-12

  • XDR-120-24

  • XDR-120-36

  • XDR-120-48

View Datasheet

Wattage :

Feature:

  • 85~305Vac input with PFC

  • (277Vac available)

  • Global certificates in multi-fields:

  • ITE 62368-1, Industrial 61558-1/-2-16, 61010 & Marine DNV, SEMI47, CID2 HazLoc approved

  • Ultra slim width: 30~96mm (by model)

  • Supports 200% peak power and 600% peak current

  • Built-in MODBus communication interface (XDR-240~960 Series)

  • Over voltage category III (OVC III)

  • Supports parallel operation up to 3840W (XDR-240~960 series)

  • -40~+85oC wide range operation temperature (> +60oC derating)

  • 5 years warranty

Specification Table Slider - XDR-120 Series

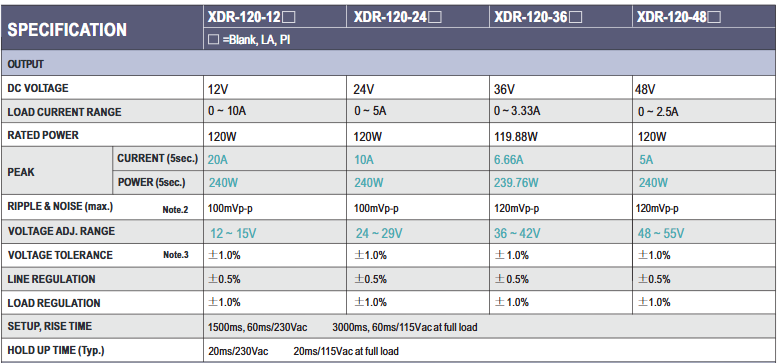

SPECIFICATION XDR-120-12☐☐=Blank, LA, PI XDR-120-24☐ XDR-120-36☐ XDR-120-48☐
OUTPUT
DC VOLTAGE 12V 24V 36V 48V
LOAD CURRENT RANGE 0 ~ 10A 0 ~ 5A 0 ~ 3.33A 0 ~ 2.5A
RATED POWER 120W 120W 119.88W 120W
PEAK 20A 10A 6.66A 5A
240W 240W 239.76W 240W
RIPPLE & NOISE (max.) Note.2 100mVp-p 100mVp-p 120mVp-p 120mVp-p
VOLTAGE ADJ. RANGE 12 ~ 15V 24 ~ 29V 36 ~ 42V 48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 1500ms, 60ms/230Vac      3000ms, 60ms/115Vac at full load
HOLD UP TIME (Typ.) 20ms/230Vac      20ms/115Vac at full load
INPUT
AC VOLTAGE RANGE 85 ~ 305Vac
DC VOLTAGE RANGE 80 ~ 431Vdc (Derating 50% Load @80Vdc)
NO LOAD CONSUMPTION(Typ.) Remote Power OFF 0.9W@115Vac & 230Vac 1W@115Vac & 230Vac
Remote Power ON 2W@115Vac & 230Vac
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115Vac      PF>0.95/230Vac      PF>0.9/277Vac at full load
EFFICIENCY (Typ.) 93.5% 94% 94% 94%
AC CURRENT (Typ.) 2.3A/115Vac      1.2A/230Vac
INRUSH CURRENT (Typ.) COLD START      6A/115Vac      10A/230Vac      15A/277Vac
LEAKAGE CURRENT <1mA / 240Vac      <1.5mA / 277Vac
