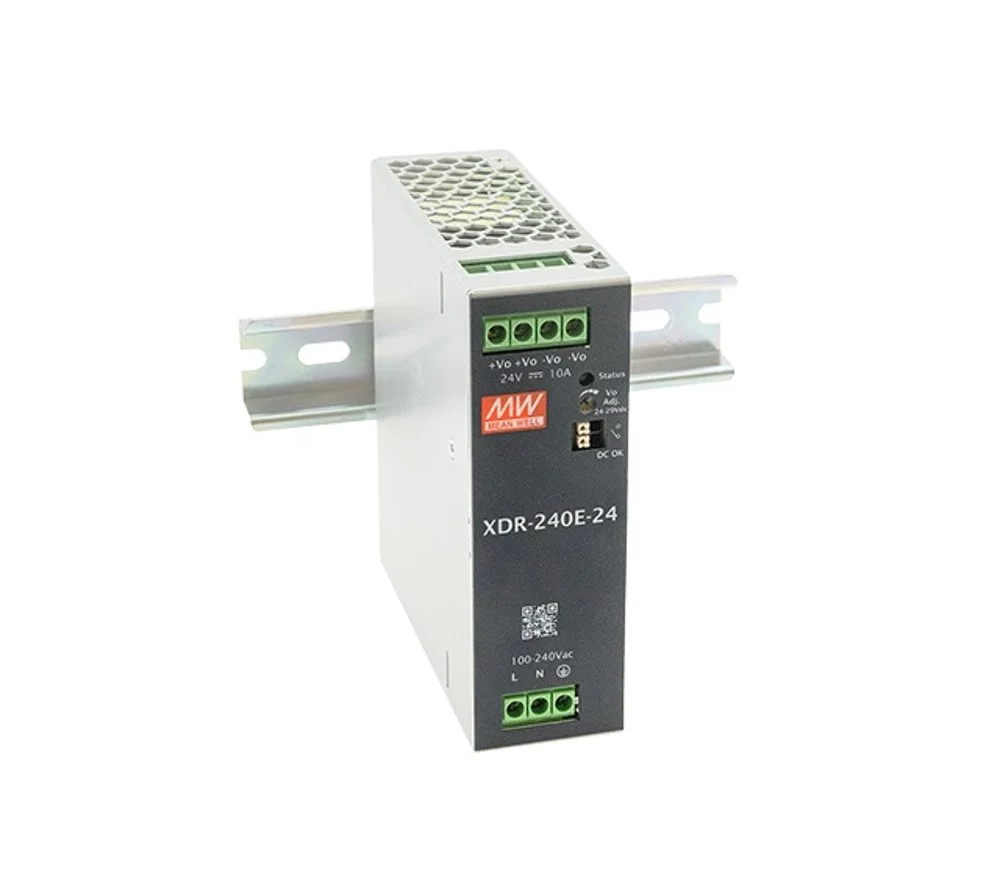

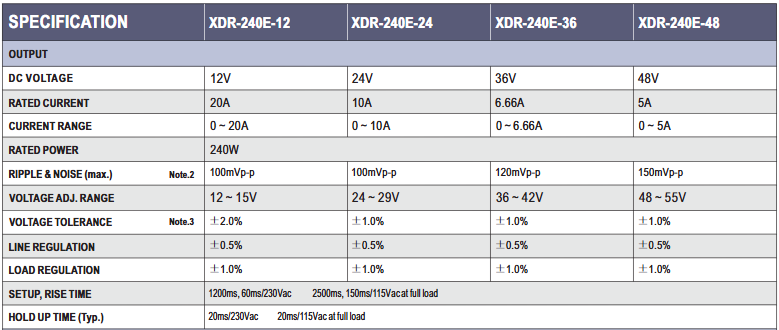

| OUTPUT |
| DC VOLTAGE |
12V |
24V |
36V |
48V |
| RATED CURRENT |
20A |
10A |
6.66A |
5A |
| CURRENT RANGE |
0 ~ 20A |
0 ~ 10A |
0 ~ 6.66A |
0 ~ 5A |
| RATED POWER |
240W |
| RIPPLE & NOISE (max.) Note.2 |
100mVp-p |
100mVp-p |
120mVp-p |
150mVp-p |
| VOLTAGE ADJ. RANGE |
12 ~ 15V |
24 ~ 29V |
36 ~ 42V |
48 ~ 55V |
| VOLTAGE TOLERANCE Note.3 |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
| LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| SETUP, RISE TIME |
1200ms, 60ms/230Vac 2500ms, 150ms/115Vac at full load |
| HOLD UP TIME (Typ.) |
20ms/230Vac 20ms/115Vac at full load |
| INPUT |
| AC VOLTAGE RANGE |
85 ~ 264Vac |
| DC VOLTAGE RANGE |
120 ~ 370Vdc |
| NO LOAD POWER CONSUMPTION (Typ.) |
1W @115Vac & 230Vac |
1.2W @115Vac & 230Vac |
| FREQUENCY RANGE |
47 ~ 63Hz |
| POWDR FACTOR (Typ.) |
PF>0.95/230Vac PF>0.98/115Vac at full load |
| EFFICIENCY (Typ.) |
94% |
95.2% |
95.5% |
95.5% |
| AC CURRENT (Typ.) |
2.6A/115Vac 1.3A/230Vac |
| INRUSH CURRENT (Typ.) |
COLD START 15A/115Vac 30A/230Vac |
| LEAKAGE CURRENT |
<1mA / 240Vac |
| PROTECTION |
| OVERLOAD |
105~130% rated output power |
| Hiccup mode when output voltage <30%, recovers automatically after fault condition is removed |
| Constant current limiting without shutdown within 30%~100% rated output voltage, recovers automatically after fault condition is removed |
| OVER VOLTAGE |
Max. 18V |
Max. 35V |
Max. 50V |
Max. 63V |
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE |
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
| FUNCTION |
| DC OK RELAY CONTACT |
Relay Contact Ratings (max.): 30Vdc/1A, 30Vac/0.5A resistive load |
