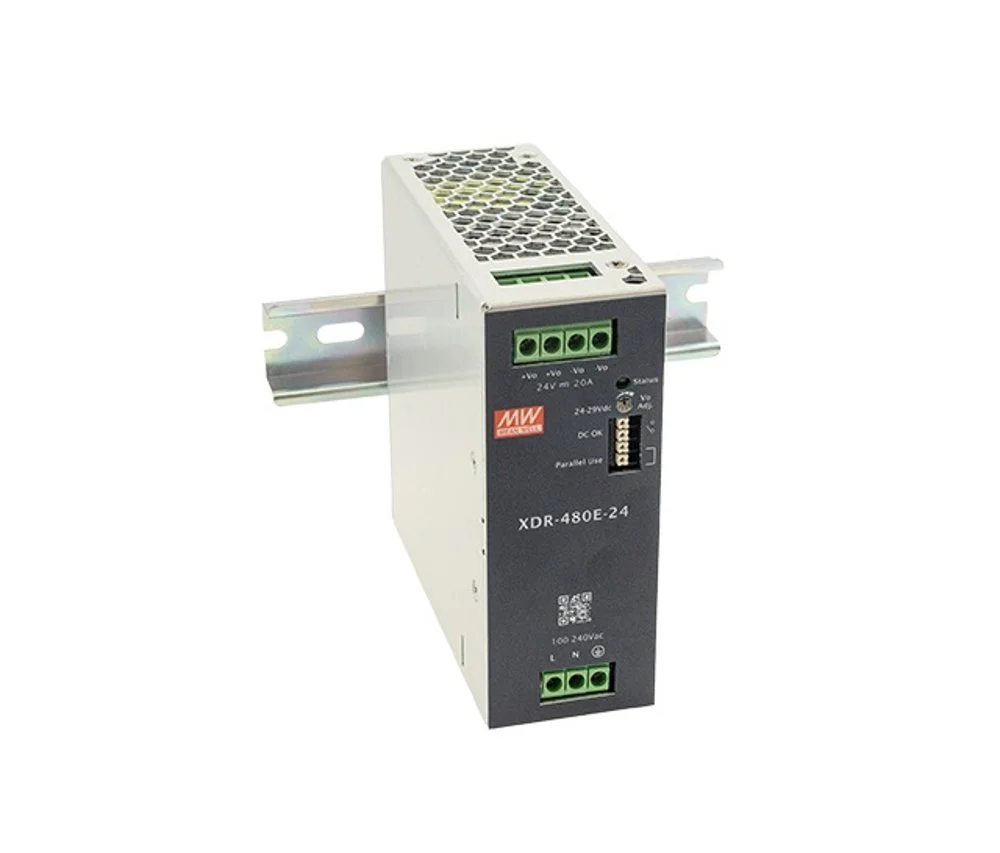

480WAC/DC High-End Ultra Slim Industrial DIN Rail Power

XDR-480 series:

  • XDR-480-12

  • XDR-480-24

  • XDR-480-36

  • XDR-480-48

View Datasheet

Model:

480WAC/DC High-End Ultra Slim Industrial DIN Rail Power

XDR-480 series:

  • XDR-480-12

  • XDR-480-24

  • XDR-480-36

  • XDR-480-48

View Datasheet

Wattage:

Features:

  • 85~305Vac input with PFC

  • (277Vac available)

  • Global certificates in multi-fields:

  • ITE 62368-1, Industrial 61558-1/-2-16, 61010 & Marine DNV, SEMI47, CID2 HazLoc approved

  • Ultra slim width: 30~96mm (by model)

  • Supports 200% peak power and 600% peak current

  • Built-in MODBus communication interface (XDR-240~960 Series)

  • Over voltage category III (OVC III)

  • Supports parallel operation up to 3840W (XDR-240~960 series)

  • -40~+85oC wide range operation temperature (> +60oC derating)

  • 5 years warranty

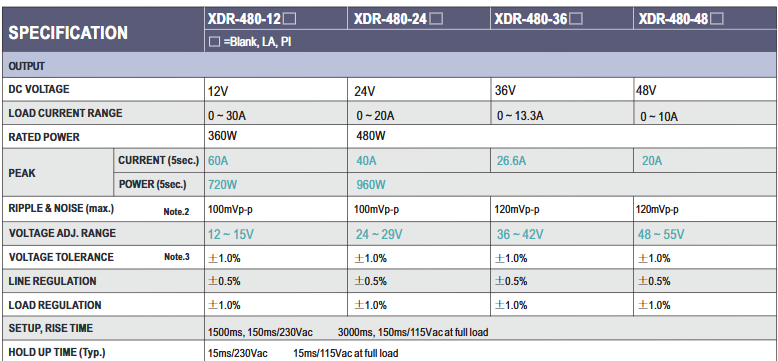

Specification Table Slider - XDR-480 Series
SPECIFICATION XDR-480-12☐☐=Blank, LA, PI XDR-480-24☐ XDR-480-36☐ XDR-480-48☐
OUTPUT
DC VOLTAGE 12V 24V 36V 48V
LOAD CURRENT RANGE 0 ~ 30A 0 ~ 20A 0 ~ 13.3A 0 ~ 10A
RATED POWER 360W 480W
PEAK 60A 40A 26.6A 20A
720W 960W
RIPPLE & NOISE (max.) Note.2 100mVp-p 100mVp-p 120mVp-p 120mVp-p
VOLTAGE ADJ. RANGE 12 ~ 15V 24 ~ 29V 36 ~ 42V 48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 1500ms, 150ms/277Vac      1500ms, 150ms/230Vac      1500ms, 150ms/115Vac at full load
HOLD UP TIME (Typ.) 15ms/277Vac      15ms/230Vac      15ms/115Vac at full load
INPUT
AC VOLTAGE RANGE 85 ~ 305Vac
DC VOLTAGE RANGE 80 ~ 431Vdc (Derating 50% Load @80Vdc)
NO LOAD CONSUMPTION(Typ.) 1W@115Vac & 230Vac & 277Vac
3W@115Vac & 230Vac & 277Vac
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115Vac      PF>0.95/230Vac      PF>90%/277Vac at full load
EFFICIENCY (Typ.) 94% 95.5% 95.5% 96%
AC CURRENT (Typ.) 6A/115Vac      3A/230Vac      2.5A/277Vac
INRUSH CURRENT (Typ.) COLD START      6A/115Vac      10A/230Vac      15A/277Vac
LEAKAGE CURRENT <1mA / 240Vac      <1.5mA / 277Vac
PROTECTION
OVERLOAD 105%~200% rated output power for more than 5 sec then constant current limiting at rate current without shutdown when Vo=30%~100%
Hiccup mode when Vo<30% rated voltage
OVER VOLTAGE 16 ~ 19V 30 ~ 34V 43 ~ 50V 57 ~ 66V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
