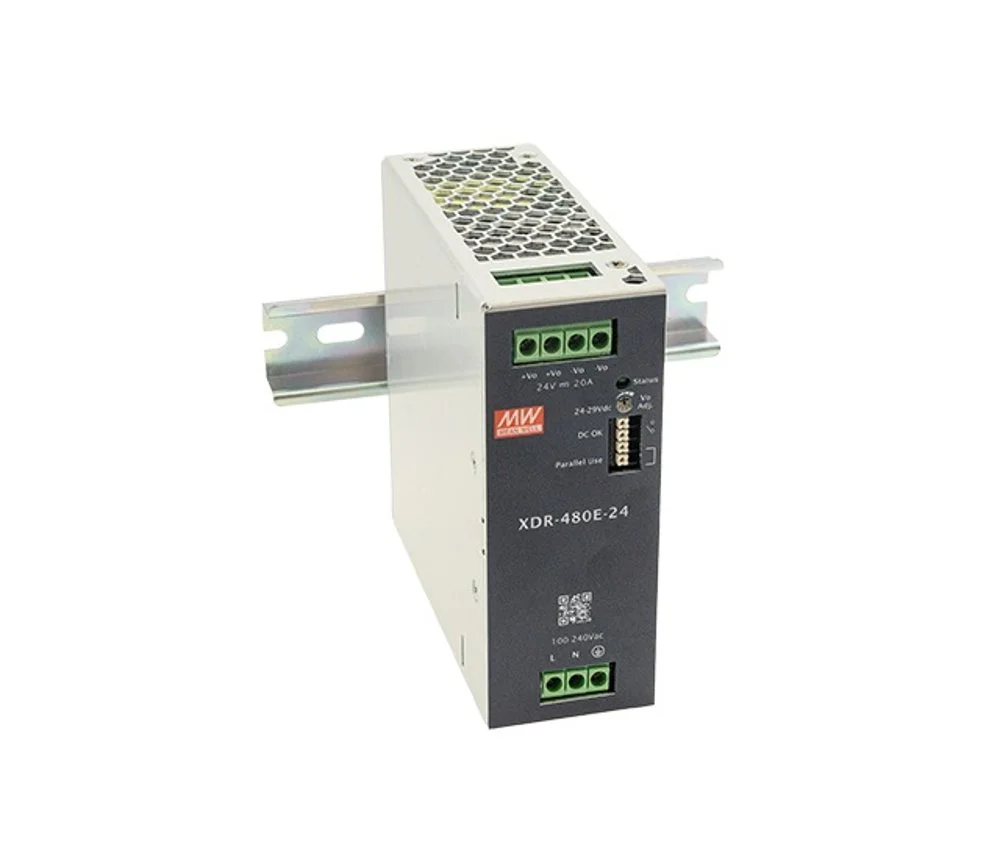

480WAC/DC Economical Ultra Slim Industrial DIN Rail Power

XDR-480E Series:

  • XDR-480E-12

  • XDR-480E-24

  • XDR-480E-36

  • XDR-480E-48

View Datasheet

Model:

480WAC/DC Economical Ultra Slim Industrial DIN Rail Power

XDR-480E Series:

  • XDR-480E-12

  • XDR-480E-24

  • XDR-480E-36

  • XDR-480E-48

View Datasheet

Wattage :75W~960W

Features:

  • 85~264Vac input range

  • Global certificates in multi-fields:

  • CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1)

  • Ultra slim width: 30~96mm (by model)

  • High efficiency up to 96% and no load power dissipation <1W~3.6W (by model)

  • Current sharing Up to 3840W for parallel use (XDR-480E/ 960E only)

  • Over voltage category III (OVC III)

  • -40~+70oC wide range operation temperature (>+50oC derating)

  • Can be installed on DIN Rail TS-35/7.5 or 15

  • 3 years warranty

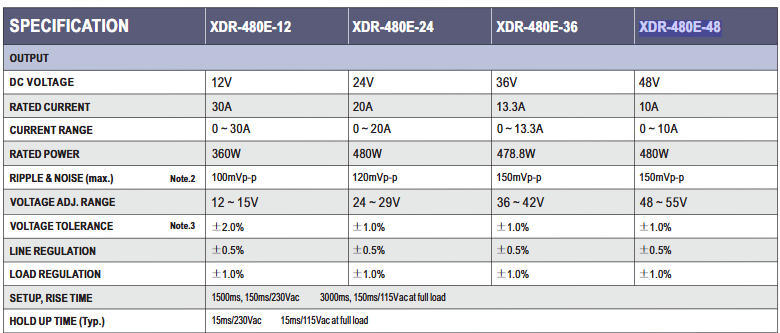

Specification Table Slider - XDR-480E
SPECIFICATION XDR-480E-12 XDR-480E-24 XDR-480E-36 XDR-480E-48
OUTPUT
DC VOLTAGE 12V 24V 36V 48V
RATED CURRENT 30A 20A 13.3A 10A
CURRENT RANGE 0 ~ 30A 0 ~ 20A 0 ~ 13.3A 0 ~ 10A
RATED POWER 360W 480W 478.8W 480W
RIPPLE & NOISE (max.) Note.2 100mVp-p 120mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 12 ~ 15V 24 ~ 29V 36 ~ 42V 48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 1500ms, 150ms/230Vac      3000ms, 150ms/115Vac at full load
HOLD UP TIME (Typ.) 15ms/230Vac      15ms/115Vac at full load
INPUT
AC VOLTAGE RANGE 85 ~ 264Vac
DC VOLTAGE RANGE 120 ~ 370Vdc
NO LOAD POWER CONSUMPTION (Typ.) 1W @115Vac & 230Vac 1.2W @115Vac & 230Vac
FREQUENCY RANGE 47 ~ 63Hz
POWDR FACTOR (Typ.) PF>0.95/230Vac    PF>0.98/115Vac at full load
EFFICIENCY (Typ.) 94% 95.5% 95.5% 96%
AC CURRENT (Typ.) 6A/115Vac      3A/230Vac
INRUSH CURRENT (Typ.) COLD START      15A/115Vac      30A/230Vac
LEAKAGE CURRENT <1mA / 240Vac
PROTECTION
OVERLOAD 105~130% rated output power
Hiccup mode when output voltage <30%, recovers automatically after fault condition is removed
Constant current limiting without shutdown within 30%~100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE Max. 18V Max. 35V Max. 50V Max. 63V
Protection type : Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
