XDR-75

$0.00

75WAC/DC High-End Ultra SlimI Industrial DIN Rail Power

XDR-75 Series:

XDR-75-12
XDR-75-24
XDR-75-36
XDR-75-48

View Data Sheet

Model:

XDR-75-12

XDR-75-24

XDR-75-36

XDR-75-48

75WAC/DC High-End Ultra SlimI Industrial DIN Rail Power

XDR-75 Series:

XDR-75-12
XDR-75-24
XDR-75-36
XDR-75-48

View Data Sheet

Wattage :

Features　:

85~305Vac input with PFC
(277Vac available)
Global certificates in multi-fields:
ITE 62368-1, Industrial 61558-1/-2-16, 61010 & Marine DNV, SEMI47, CID2 HazLoc approved
Ultra slim width: 30~96mm (by model)
Supports 200% peak power and 600% peak current
Built-in MODBus communication interface (XDR-240~960 Series)
Over voltage category III (OVC III)
Supports parallel operation up to 3840W (XDR-240~960 series)
-40~+85oC wide range operation temperature (> +60oC derating)
5 years warranty

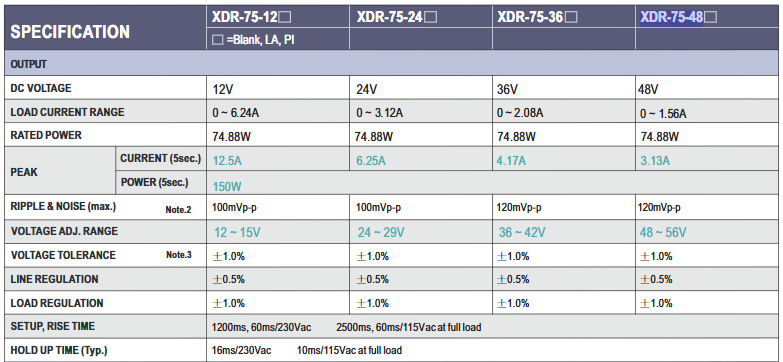

Specification Table Slider - XDR-75 Series


                    SPECIFICATION
                    XDR-75-12☐☐=Blank, LA, PI
                    XDR-75-24☐
                    XDR-75-36☐
                    XDR-75-48☐



                    OUTPUT


                    DC VOLTAGE
                    12V
                    24V
                    36V
                    48V


                    LOAD CURRENT RANGE
                    0 ~ 6.24A
                    0 ~ 3.12A
                    0 ~ 2.08A
                    0 ~ 1.56A


                    RATED POWER
                    74.88W
                    74.88W
                    74.88W
                    74.88W


                    PEAK
                   12.5A
                    6.25A
                    4.17A
                    3.13A


                    150W


                    RIPPLE & NOISE (max.) Note.2
                    100mVp-p
                    100mVp-p
                    120mVp-p
                    120mVp-p


                    VOLTAGE ADJ. RANGE
                    12 ~ 15V
                    24 ~ 29V
                    36 ~ 42V
                    48 ~ 56V


                    VOLTAGE TOLERANCE Note.3
                    ±1.0%
                    ±1.0%
                    ±1.0%
                    ±1.0%


                    LINE REGULATION
                    ±0.5%
                    ±0.5%
                    ±0.5%
                    ±0.5%


                    LOAD REGULATION
                    ±1.0%
                    ±1.0%
                    ±1.0%
                    ±1.0%


                    SETUP, RISE TIME
                    1200ms, 60ms/230Vac      2500ms, 60ms/115Vac at full load


                    HOLD UP TIME (Typ.)
                    16ms/230Vac      10ms/115Vac at full load


                    INPUT


                    AC VOLTAGE RANGE
                    85 ~ 305Vac


                    DC VOLTAGE RANGE
                    80 ~ 431Vdc (Derating 50% Load @80Vdc)


                    NO LOAD CONSUMPTION(Typ.)
                    Remote Power OFF
                    0.7W @115Vac & 230Vac
                    1W @115Vac & 230Vac


                    Remote Power ON
                    1.5W @115Vac & 230Vac


                    FREQUENCY RANGE
                    47 ~ 63Hz


                    EFFICIENCY (Typ.)
                    89%
                    90%
                    91%
                    91%


                    AC CURRENT (Typ.)
                    1.5A/115Vac      0.9A/230Vac      0.8A/277Vac


                    INRUSH CURRENT (Typ.)
                    COLD START      6A/115Vac      10A/230Vac      15A/277Vac


                    LEAKAGE CURRENT
                    <1mA / 240Vac      <1.5mA / 277Vac
