150 AC/DC Economical Ultra Slim Industrial DIN Rail Power

XDR-150E Series:

XDR-150E-12
XDR-150E-48
XDR-150E-36
XDR-150E-24

View Datasheet

Model:

XDR-150E-12

XDR-150E-48

XDR-150E-36

XDR-150E-24

150 AC/DC Economical Ultra Slim Industrial DIN Rail Power

XDR-150E Series:

XDR-150E-12
XDR-150E-48
XDR-150E-36
XDR-150E-24

View Datasheet

Wattage : 75W~960W

Features　:

85~264Vac input range
Global certificates in multi-fields:
CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1)
Ultra slim width: 30~96mm (by model)
High efficiency up to 96% and no load power dissipation <1W~3.6W (by model)
Current sharing Up to 3840W for parallel use (XDR-480E/ 960E only)
Over voltage category III (OVC III)
-40~+70oC wide range operation temperature (>+50oC derating)
Can be installed on DIN Rail TS-35/7.5 or 15
3 years warranty

Specification Table Slider

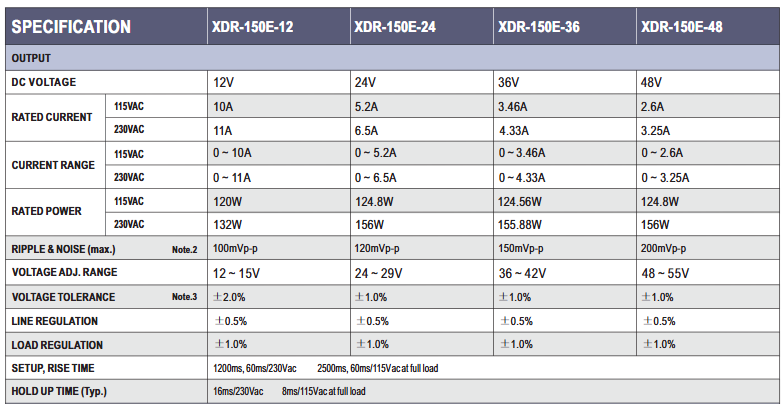

                    SPECIFICATION
                    XDR-75E-12
                    XDR-75E-24
                    XDR-75E-36
                    XDR-75E-48

                    OUTPUT

                    DC VOLTAGE
                    12V
                    24V
                    36V
                    48V

                    RATED CURRENT
                    6.3A
                    3.2A
                    2.1A
                    1.6A

                    CURRENT RANGE
                    0 ~ 6.3A
                    0 ~ 3.2A
                    0 ~ 2.1A
                    0 ~ 1.6A

                    RATED POWER
                    75.6W
                    76.8W
                    75.6W
                    76.8W

                    RIPPLE & NOISE (max.) Note.2
                    100mVp-p
                    100mVp-p
                    120mVp-p
                    120mVp-p

                    VOLTAGE ADJ. RANGE
                    12 ~ 15V
                    24 ~ 29V
                    36 ~ 42V
                    48 ~ 55V

                    VOLTAGE TOLERANCE Note.3
                    ±2.0%
                    ±1.0%
                    ±1.0%
                    ±1.0%

                    LINE REGULATION
                    ±0.5%
                    ±0.5%
                    ±0.5%
                    ±0.5%

                    LOAD REGULATION
                    ±1.0%
                    ±1.0%
                    ±1.0%
                    ±1.0%

                    SETUP, RISE TIME
                    1200ms, 60ms/230Vac      2500ms, 60ms/115Vac at full load

                    HOLD UP TIME (Typ.)
                    16ms/230Vac      10ms/115Vac at full load

                    INPUT

                    AC VOLTAGE RANGE
                    85 ~ 264Vac

                    DC VOLTAGE RANGE
                    120 ~ 370Vdc

                    NO LOAD POWER CONSUMPTION (Typ.)
                    0.5W @115Vac    0.7W @230Vac
                    0.8W @115Vac    0.9W @230Vac
                    -
                    0.8W @115Vac    1W @230Vac

                    FREQUENCY RANGE
                    47 ~ 63Hz

                    EFFICIENCY (Typ.)
                    89%
                    90%
                    91%
                    91%

                    AC CURRENT (Typ.)
                    1.4A/115Vac      0.8A/230Vac

                    INRUSH CURRENT (Typ.)
                    COLD START      18A/115Vac      35A/230Vac

                    LEAKAGE CURRENT
                    <1mA / 240Vac

                    PROTECTION

                    OVERLOAD

                        105-130% rated output power, constant current limiting without shutdown, recovers automatically after fault condition is removed

                    OVER VOLTAGE
                    15 ~ 18V
                    30 ~ 34V
                    43 ~ 50V
                    56 ~ 65V

                    Protection type : Shut down o/p voltage, re-power on to recover

                    OVER TEMPERATURE
                    Protection type : Hiccup mode, recovers automatically after fault condition is removed

                    FUNCTION

                    DC OK RELAY CONTACT
                    Relay Contact Ratings (max.): 30Vdc/1A, 30Vac/0.5A resistive load
