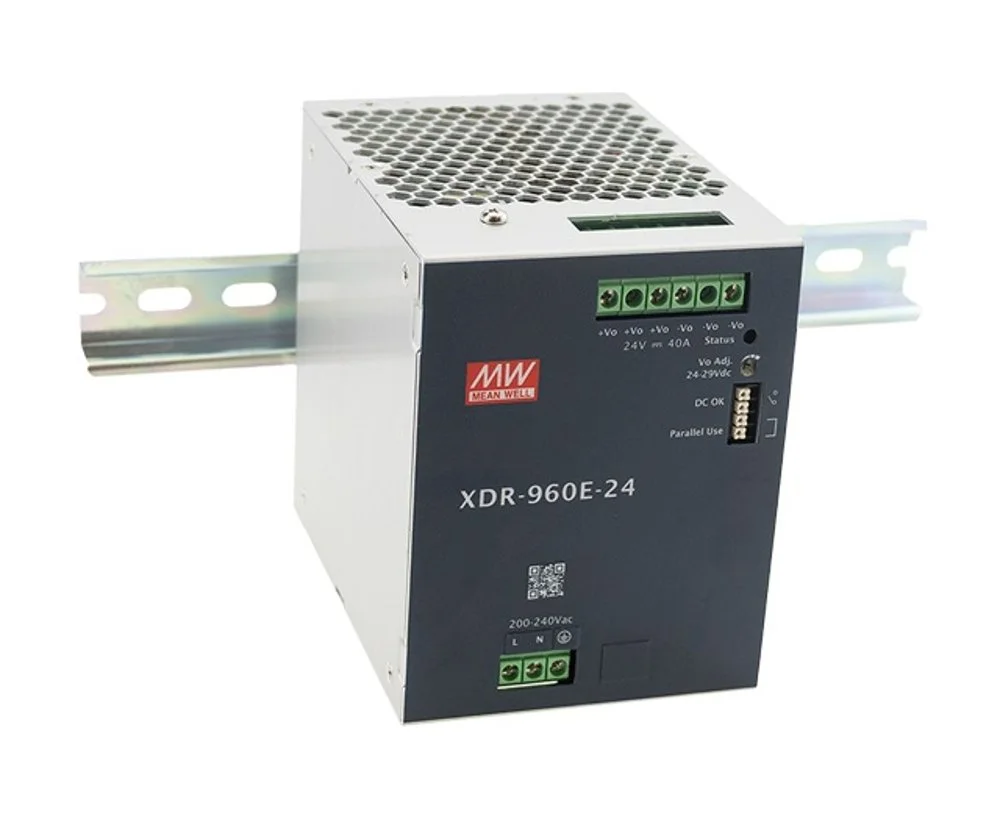

960WAC/DC High-End Ultra Slim Industrial DIN Rail Power

XDR-960 series:

  • XDR-960-24

  • XDR-960-36

  • XDR-960-48

View Datasheet

Model:

960WAC/DC High-End Ultra Slim Industrial DIN Rail Power

XDR-960 series:

  • XDR-960-24

  • XDR-960-36

  • XDR-960-48

View Datasheet

Wattage :

Features　:

  • 85~305Vac input with PFC

  • (277Vac available)

  • Global certificates in multi-fields:

  • ITE 62368-1, Industrial 61558-1/-2-16, 61010 & Marine DNV, SEMI47, CID2 HazLoc approved

  • Ultra slim width: 30~96mm (by model)

  • Supports 200% peak power and 600% peak current

  • Built-in MODBus communication interface (XDR-240~960 Series)

  • Over voltage category III (OVC III)

  • Supports parallel operation up to 3840W (XDR-240~960 series)

  • -40~+85oC wide range operation temperature (> +60oC derating)

  • 5 years warranty

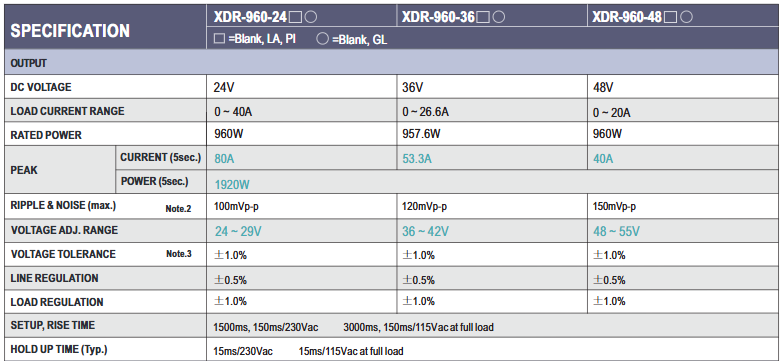

Specification Table Slider - XDR-960 Series
SPECIFICATION XDR-960-24☐◯☐=Blank, LA, PI    ◯=Blank, GL XDR-960-36☐◯ XDR-960-48☐◯
OUTPUT
DC VOLTAGE 24V 36V 48V
LOAD CURRENT RANGE 0 ~ 40A 0 ~ 26.6A 0 ~ 20A
RATED POWER 960W 957.6W 960W
PEAK 80A 53.3A 40A
1920W
RIPPLE & NOISE (max.) Note.2 100mVp-p 120mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 24 ~ 29V 36 ~ 42V 48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 1500ms, 100ms/277Vac      1500ms, 100ms/230Vac      1500ms, 100ms/115Vac at full load
HOLD UP TIME (Typ.) 20ms/277Vac      20ms/230Vac      20ms/115Vac at full load
INPUT
AC VOLTAGE RANGE 85 ~ 305Vac
DC VOLTAGE RANGE 80 ~ 431Vdc (Derating 50% Load @80Vdc)
NO LOAD CONSUMPTION(Typ.) Remote Power OFF 1.5W@115Vac & 230Vac & 277Vac
Remote Power ON 6.7W@115Vac      4.5W@230Vac & 277Vac
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115Vac      PF>0.95/230Vac      PF>0.9/277Vac at full load
EFFICIENCY (Typ.) 95% 95.5% 96%
AC CURRENT (Typ.) 10A/115Vac      5A/230Vac      4.2A/277Vac
INRUSH CURRENT (Typ.) COLD START      23A/115Vac      10A/230Vac      15A/277Vac
LEAKAGE CURRENT <3.5mA / 240Vac      <4.5mA / 277Vac
PROTECTION
OVERLOAD 105%~200% rated output power for more than 5 sec then constant current limiting at rate current without shutdown when Vo=30%~100%
Hiccup mode when Vo<30% rated voltage
OVER VOLTAGE 30 ~ 34V 43 ~ 50V 57 ~ 66V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
PARALLEL Up to 3840W (3+1) units; Please refer to Function Manual for more details.
DC OK RELAY CONTACT Relay Contact Ratings (max.): 30Vdc/1A, 30Vac/0.5A resistive load
REMOTE CONTROL Power ON : RC(Pin9) and 5V_AUX(Pin10) short . Please refer to Function Manual for more details.
Power OFF: RC(Pin9) and 5V_AUX(Pin10) open.
MODBus INTERFACE Communication provides functions such as control, setting, and monitoring.
TRANSIENT PEAK CURRENT CAPABILILTY 600% rated current for 15ms
