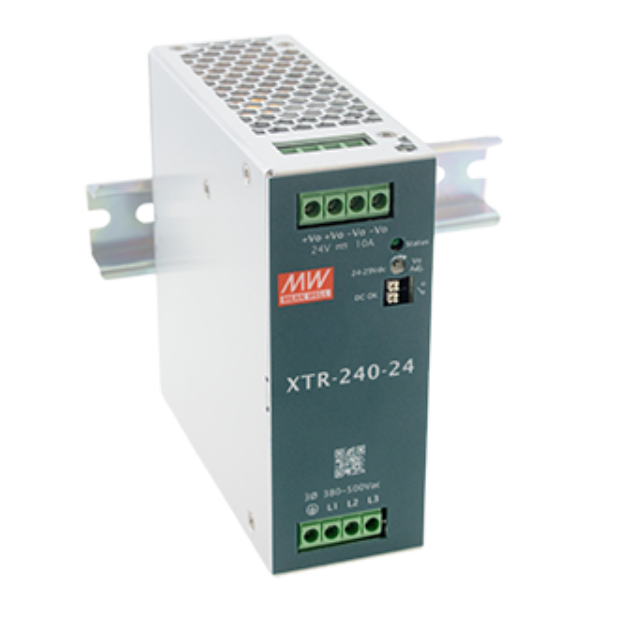

960W AC/DC 3 Input Ultra Slim Industrial DIN Rail Power

XTR-240 Series:

  • XTR-240-12

  • XTR-240-24

  • XTR-240-36

  • XTR-240-48

View Datasheet

Model:

960W AC/DC 3 Input Ultra Slim Industrial DIN Rail Power

XTR-240 Series:

  • XTR-240-12

  • XTR-240-24

  • XTR-240-36

  • XTR-240-48

View Datasheet

Wattage: 240W~960W

Features:

  • Three-phase 320 ~ 600Vac wide input range, support dual-phase operation

  • Ultra-low inrush current <10A

  • Global certificates in multi-fields:

  • CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1), and HazLoc C1D2 / marine DNV / SEMI 47

  • Ultra slim design: 48~96mm (by model)

  • High efficiency up to 96% and no load power dissipation <2.5W~3.1W (by model)

  • 150~200% peak power capability

  • Current sharing up to 3840W for parallel use (XTR-240 by request)

  • Over voltage category III (OVC III)

  • -40~+85℃ wide range operation temperature (>+60℃ derating)

  • Various terminal blocks: screw-type, push-in, lever-type

  • Internal PCB conformal coating protection

  • Can be installed on DIN Rail TS-35/7.5 or 15

  • 5 years warranty

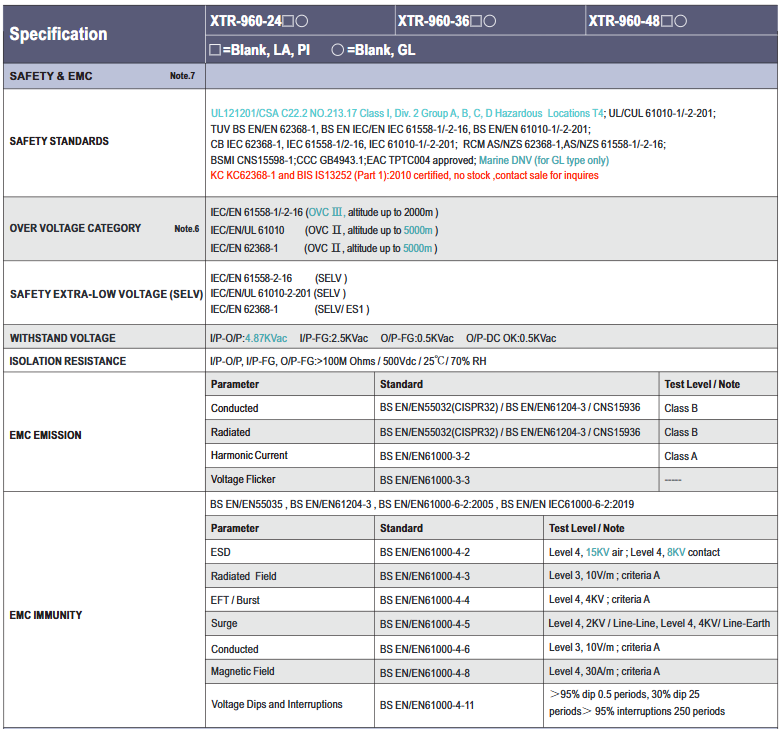

Specification Table Slider - XTR-240 Series
SPECIFICATION XTR-240◯-12☐◯=Blank, P      ☐=Blank, LA, PI XTR-240◯-24☐ XTR-240◯-36☐ XTR-240◯-48☐
OUTPUT
DC VOLTAGE 12V 24V 36V 48V
RATED CURRENT 15A 10A 6.66A 5A
CURRENT RANGE 0 ~ 15A 0 ~ 10A 0 ~ 6.66A 0 ~ 5A
RATED POWER 180W 240W 239.8W 240W
PEAK 22.5A 15A 10A 7.5A
270W 360W 360W 360W
RIPPLE & NOISE (max.) Note.2 100mVp-p 100mVp-p 120mVp-p 120mVp-p
VOLTAGE ADJ. RANGE 12 ~ 15V 24 ~ 29V 36 ~ 42V 48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 2000ms, 60ms/400Vac      1500ms, 60ms/500Vac at full load
HOLD UP TIME (Typ.) 20ms / 400Vac      40ms / 500Vac at full load
INPUT
VOLTAGE RANGE Note.4 Three-Phase 320 ~ 600Vac 450 ~ 800Vdc (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG,L3 is DC+ )
NO LOAD POWER CONSUMPTION (Typ.) 2.5W/400Vac 2.5W/400Vac 2.5W/400Vac 2.5W/400Vac
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF≥0.53/400Vac      PF≥0.52/500Vac at full load
EFFICIENCY (Typ.) 88.7% 92.5% 92.5% 93.5%
AC CURRENT (Typ.) 0.69A/400Vac      0.6A/500Vac
INRUSH CURRENT (Typ.) COLD START      10A/400Vac
LEAKAGE CURRENT <2mA / 530Vac
PROTECTION
OVERLOAD 105%~150% rated output power for more than 5 sec then constant current limiting without shutdown at rate current when Vo=30%~100%
OVER VOLTAGE 15 ~ 18V 30 ~ 36V 45 ~ 54V 56 ~ 65V
Hiccup mode , recovers automatically after fault condition is removed
OVER TEMPERATURE Shut down o/p voltage or hiccup mode, recovers automatically after temperature goes down
FUNCTION
PARALLEL(Optional) Up to 960W (3+1), please refer to Function Manual for more details
DC OK RELAY CONTACT Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load
