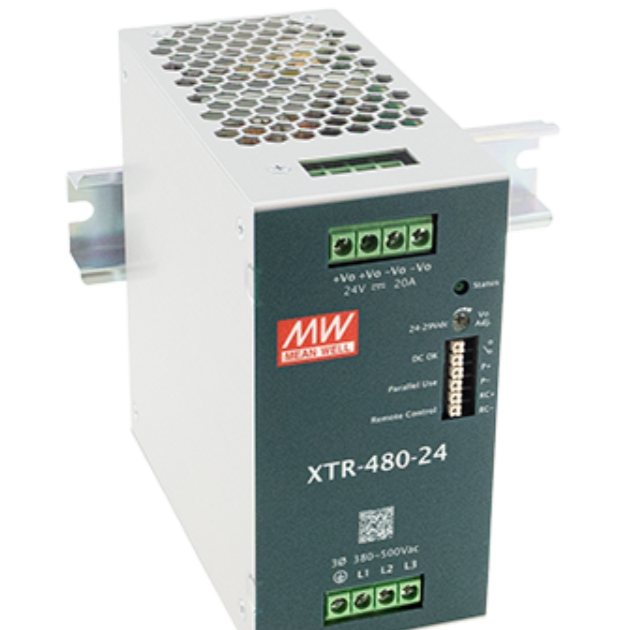

480W AC/DC 3 Input Ultra Slim Industrial DIN Rail Power

XTR-480 series:

XTR-480-12,

XTR-480-24,

XTR-480-36,

XTR-480-48

Model:

480W AC/DC 3 Input Ultra Slim Industrial DIN Rail Power

XTR-480 series:

XTR-480-12,

XTR-480-24,

XTR-480-36,

XTR-480-48

Wattage: 240W~960W

Features:

  • Three-phase 320 ~ 600Vac wide input range, support dual-phase operation

  • Ultra-low inrush current <10A

  • Global certificates in multi-fields:

  • CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1), and HazLoc C1D2 / marine DNV / SEMI 47

  • Ultra slim design: 48~96mm (by model)

  • High efficiency up to 96% and no load power dissipation <2.5W~3.1W (by model)

  • 150~200% peak power capability

  • Current sharing up to 3840W for parallel use (XTR-240 by request)

  • Over voltage category III (OVC III)

  • -40~+85℃ wide range operation temperature (>+60℃ derating)

  • Various terminal blocks: screw-type, push-in, lever-type

  • Internal PCB conformal coating protection

  • Can be installed on DIN Rail TS-35/7.5 or 15

  • 5 years warranty

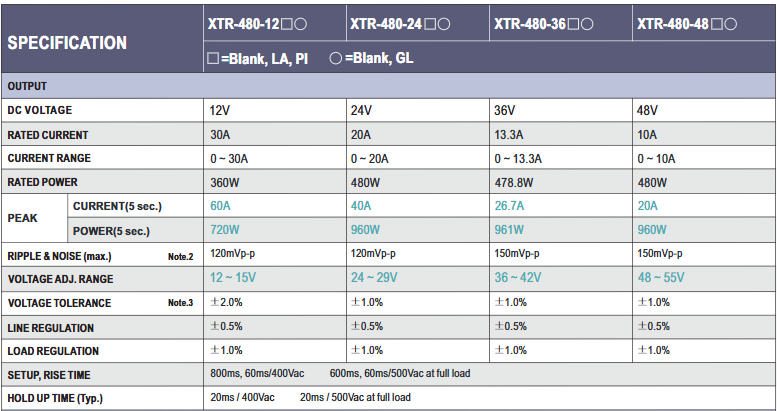

Specification Table Slider - XTR-480 Series
SPECIFICATION XTR-480-12☐◯☐=Blank, LA, PI      ◯=Blank, GL XTR-480-24☐◯ XTR-480-36☐◯ XTR-480-48☐◯
OUTPUT
DC VOLTAGE 12V 24V 36V 48V
RATED CURRENT 30A 20A 13.3A 10A
CURRENT RANGE 0 ~ 30A 0 ~ 20A 0 ~ 13.3A 0 ~ 10A
RATED POWER 360W 480W 478.8W 480W
PEAK 60A 40A 26.7A 20A
720W 960W 961W 960W
RIPPLE & NOISE (max.) Note.2 120mVp-p 120mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 12 ~ 15V 24 ~ 29V 36 ~ 42V 48 ~ 55V
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 800ms, 60ms/400Vac      600ms, 60ms/500Vac at full load
HOLD UP TIME (Typ.) 20ms / 400Vac      20ms / 500Vac at full load
INPUT
VOLTAGE RANGE Note.4 Three-Phase 320 ~ 600Vac (Dual phase operation possible)    450 ~ 800Vdc
NO LOAD POWER CONSUMPTION (Typ.) 3.0W/400Vac 3.0W/400Vac 3.0W/400Vac 3.0W/400Vac
5.0W/400Vac 5.0W/400Vac 5.0W/400Vac 5.0W/400Vac
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF≥0.9/400Vac      PF≥0.88/500Vac at full load
EFFICIENCY (Typ.) 93% 94% 94.5% 95.5%
AC CURRENT (Typ.) 0.85A/400Vac      0.7A/500Vac
INRUSH CURRENT (Typ.) COLD START      10A/500Vac
LEAKAGE CURRENT <3.5mA / 530Vac
PROTECTION
OVERLOAD 105%~200% rated output power for more than 5 sec then constant current limiting without shutdown at rate current when Vo=30%~100%
OVER VOLTAGE 15 ~ 18V 30 ~ 35V 43 ~ 50V 56 ~ 65V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage or hiccup mode, recovers automatically after temperature goes down
