MAT-WDB-PA-NF-2-0708 Series

$0.00

7 dBi at 2.4 GHz or 8 dBi at 5 GHz, N-type (female), 2x2 MIMO, dual-band panel antennas

Features and Benefits

  • Lightweight

  • Compact form factor

  • Pole-mounting support

  • -40 to 75°C operating temperature range

7 dBi at 2.4 GHz or 8 dBi at 5 GHz, N-type (female), 2x2 MIMO, dual-band panel antennas

Features and Benefits

  • Lightweight

  • Compact form factor

  • Pole-mounting support

  • -40 to 75°C operating temperature range

Introduction

The MAT-WDB-PA-NF-2-0708 antenna is a compact MIMO 2x2 dual-band panel antenna with an N-type (female) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and provides a gain of 7/8 dBi.

Field Patterns

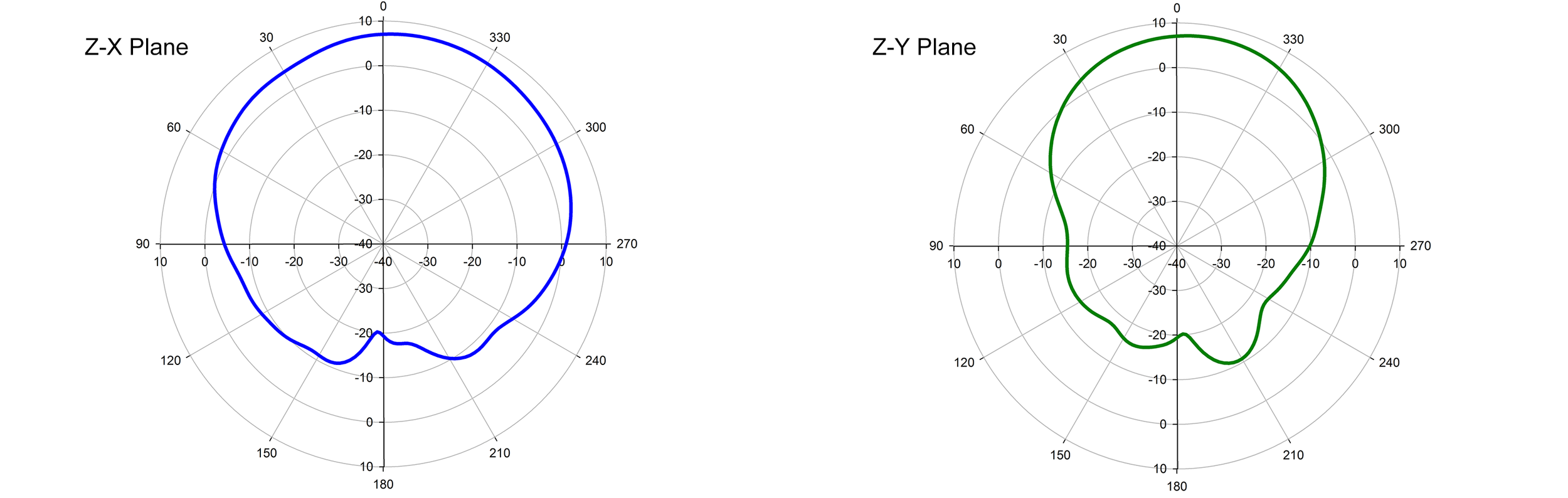

Port 1 Frequency: 2.4 GHz

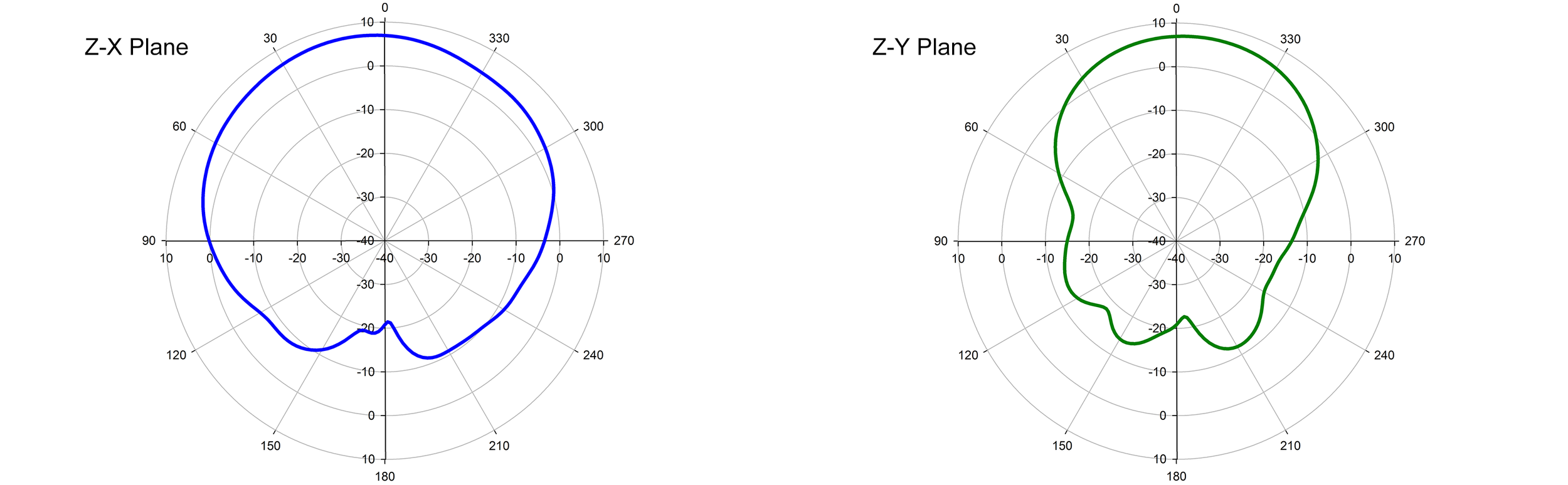

Port 2 Frequency: 2.4 GHz

Available Models

  • MAT-WDB-PA-NF-2-0708

View Datasheet
