Features

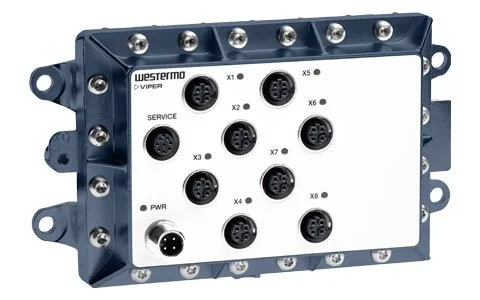

✓ Compact basic rail-approved Ethernet switch
• Fully EN 50155 compliant
• Single model 24 – 110 VDC power range
• 8 x 100 Mbit/s Ethernet ports
✓ Externally tested and verified to EN 50155
• Surge resistance and isolation
• Magnetic field immunity & conducted emission
• Shock and vibration
✓ Designed for long life and extreme operational environments
• IP67 anti-condensation GORE-TEX®membrane
• Ambient temperature –40°C (–40°F) to +70°C (+158°F)
• Integrated M12 threading and extremely high MTBF, 636,000 hours
✓ Design and production testing to match requirements for train control
• Post production testing exceeding EN 50155 mandatory requirement
• Burn in and isolation test on all units
